IN100 700TVL SECURITY CAMERA 100M IR

IN100 700TVL SECURITY CAMERA 100M IR

Downloads


DOSS CCTV Camera Range Sell sheet

Discontinued

Features

  • 1/3″ Sony EXview HAD II CCD
  • Sony EFFIO-E DSP Chipset
  • 700 TVL Resolution
  • 5mm – 50mm Varifocal Korean lens
  • 80m – 100m IR Range
    • 2x Hi-Lux Side IR spots



Images

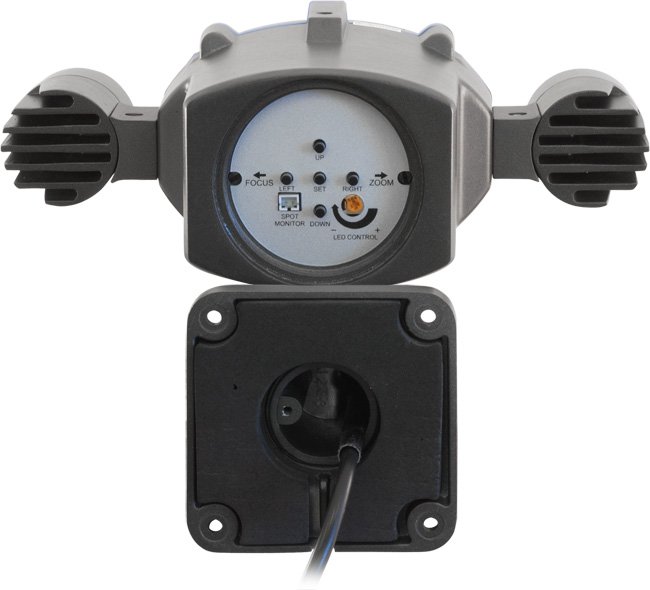

Control buttons and dials on the back for LED strength, zoom, focus and OSD settings.





Specifications

Model IN100

Sensor

 1/3" Sony EXview HAD II CCD
DSP Sony EFFIO-E
Resolution 700 TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 5mm – 50mm
Lens Type Manual
Lens Origin Korea
Approx View Angle (H) 51.8° – 5.6°
IP Rating IP66
IR LEDs 66x Ø5mm + 2x Hi-Lux IR spots
IR Range 80m – 100m
Adjustable IR Brightness no
WDR
(Wide Dynamic Range)		 ATR
Sens-up no
OSD yes
Inline Controller no
Noise Reduction 2D-NR
Backlight Compensation HLC/BLC/OFF
Image Colour Adjustment?
(ie brightness/contrast/ tone/saturation/sharpness)		 yes
Mirror function
(Horiz / Vert / Rotate)		 H
Privacy Zones 4
Motion Detection Zones 4
RS-485 no
Power
(with IR on where applicable)		 12VDC / 1000mA





About Sony Chipsets

Sony’s EXview HAD CCD II offers improved characteristics over the Super HAD CCD II and EXview HAD CCD Sensors, and other CCD Sensors.

  • Less space between On-chip microlenses and light sensors
  • Improved and longer life colour filters
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • High sensitivity to near IR range
    • Lower noise
  • Reduced image Smearing

Microlens
Structure
Low light
& IR sensitivity
Smear
Other CCD   Sony EXview HAD II CCD


New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-E DSP Chipset supports the following features*:

  • Entry-level Effio technology
  • ATR (Adaptive Tone Reproduction)
  • 2D noise reduction
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption

ATR
(Actual camera image)
Off   On

*Features mentioned are supported by Effio chipset but may not be implemented/enabled – please check the camera specifications.






Short URL: https://bit.ly/3jhZiLW



DOSS Security Training 2013

Watch the training series on our new CCTV Cameras for 2013 here!

Short URL:



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
