Features

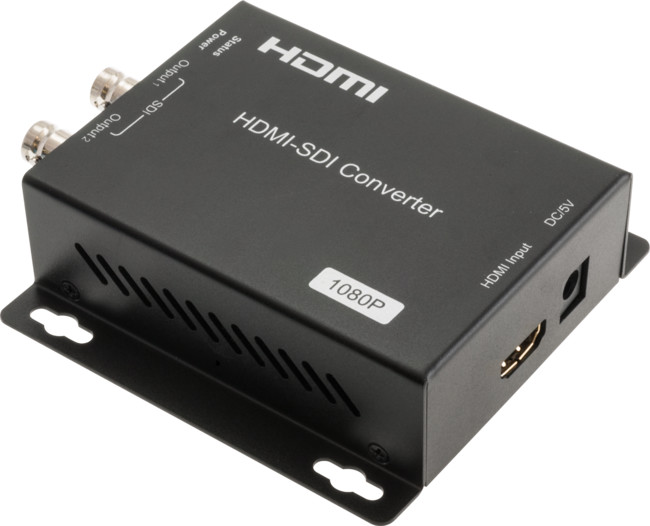

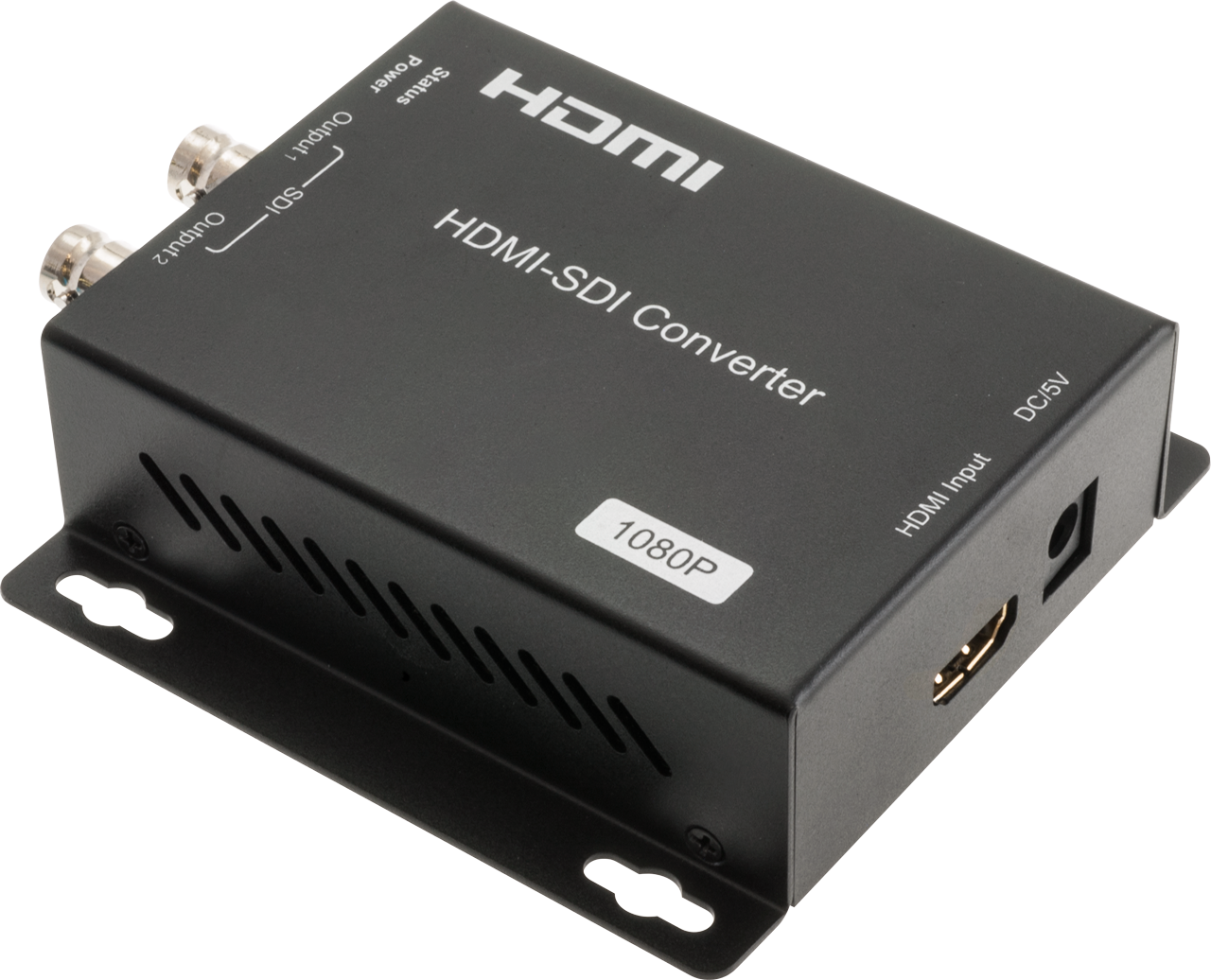

The HDMI2SDI takes Full HD HDMI video with audio and converts it to SDI for transport over up to 2x coaxial cables. This device is great for adding HDMI sources to SDI DVRs or for sending HDMI over Coax where it can then be converted back to HDMI (for example with our SDI2HDMI).

  • HDMI to SDI Conversion
  • Full HDMI support including embedded audio
  • Distributes 1x HDMI source to 2x SDI output simultaneously
  • Supported formats:
    • 1080p/​25
    • 1080p/​29.97
    • 1080p/​30
    • 1080p/​60
  • Compliant HDCP
  • Uses 5VDC power

Package contents

  • Main Unit. HDMI -SDI converter
  • DC5V 1A Power Supply
  • Operating Instructions

Specifications

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px !important; text-align: left !important; vertical-align: top !important; border-top: solid 1px #cccccc !important; border-bottom: solid 1px #cccccc !important; } .rpg_table th, .rpg_table .header { font-weight: bold !important; text-align: left !important; } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center !important; }
Video
Formats 		HDMI

480i

576i
720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SDI SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
SMPTE-296M 720p (60 / 59.94 / 50)
ITU-R BT.656 576i (50)
SMPTE-125M 480i (59.94)

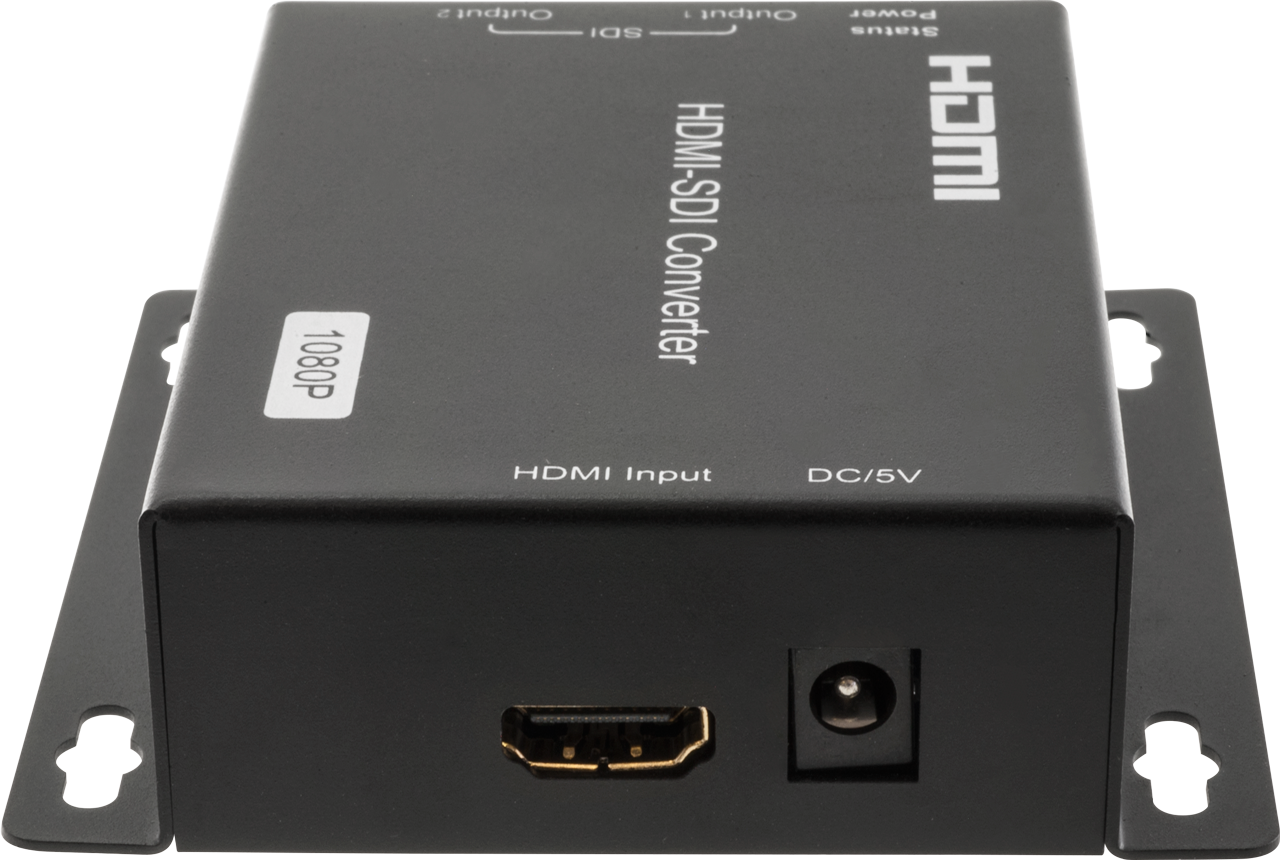

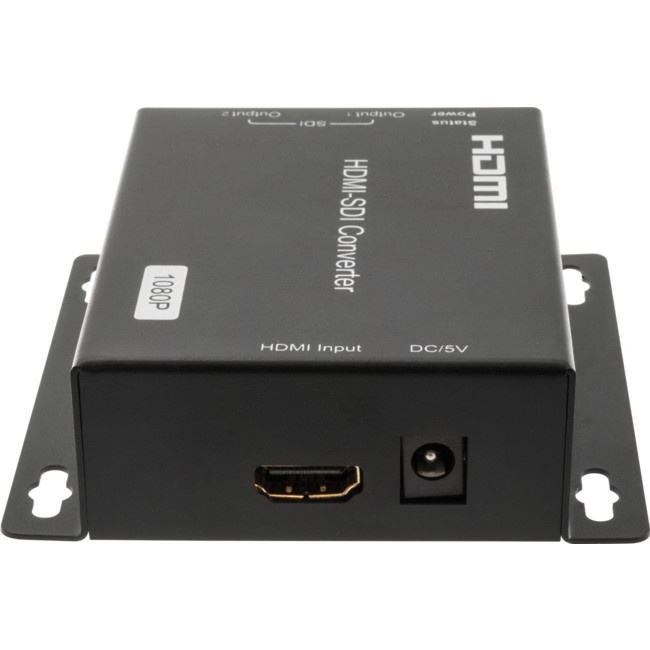

Input HDMI

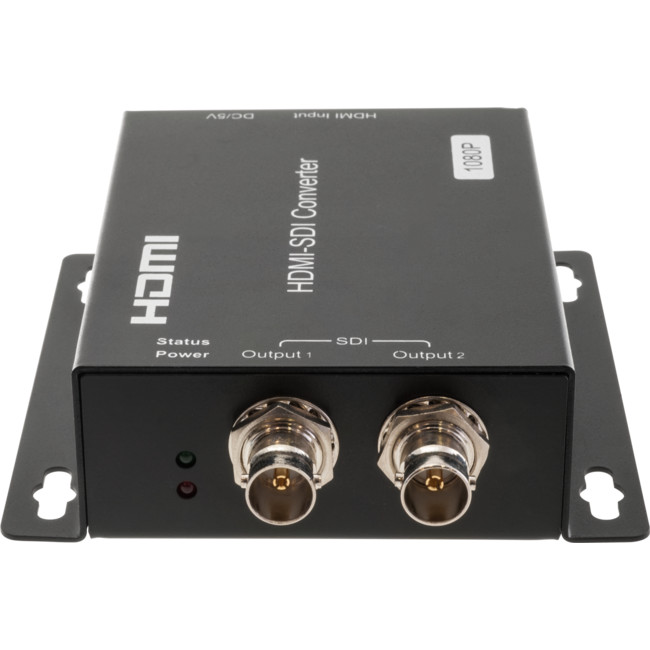

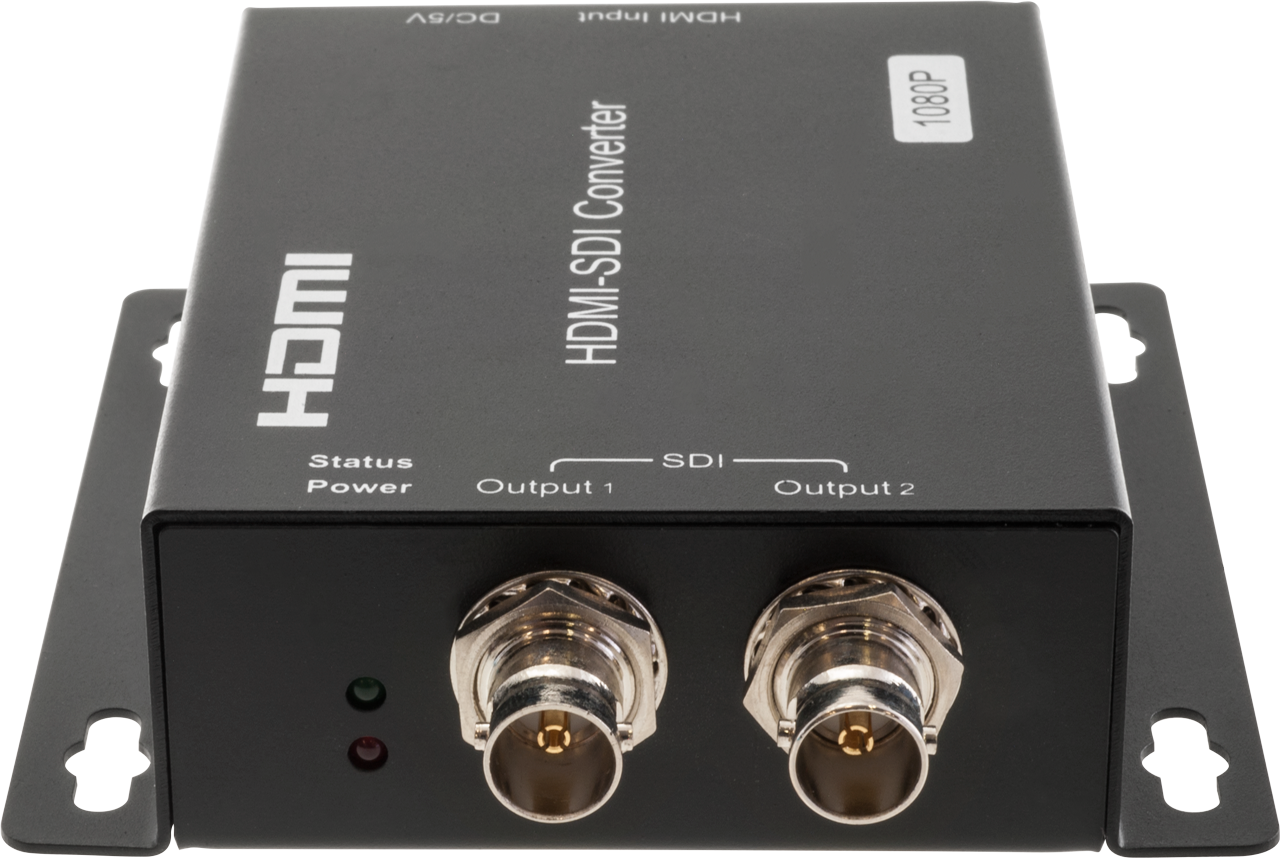

Outputs 3G-SDI/​HD-SDI/​SDI
HDMI Standard Type A connector
HDCP HDCP Compliant
Power consumption 2.5Watts (Maximum)
Dimension (L×W×H) 95×95×29mm
Operating Temperature Range -5 to +35°C (+23 to +95°F)
Operating Humidity Range 5 to 90% RH (No Condensation)
Net Weight 245g
