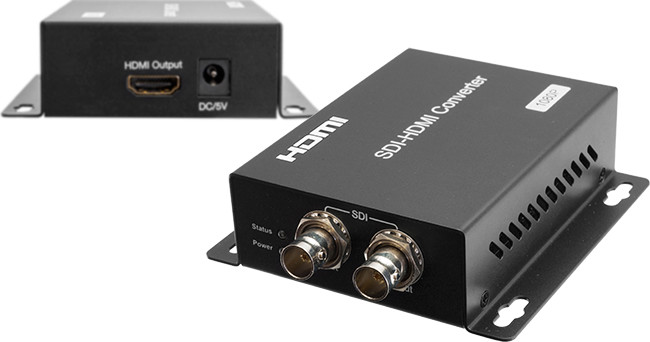

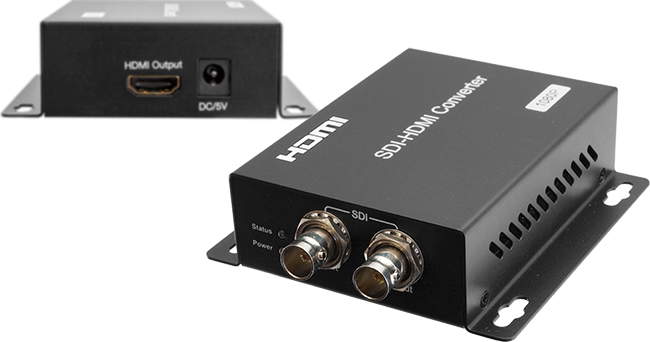

CCTV systems are moving towards digital video transmission via SDI or HD-SDI. With this in mind, and the fact most consumer Full HD Displays only have HDMI inputs, the SDI2HDMI performs a vital role in monitoring your digital CCTV system from your home entertainment system.
The SDI loop-out means you can connect your camera to your home video distribution system and your Digital CCTV system simultaneously without lag!
Why would I need to connect my CCTV system to my TV?
Most modern TVs feature a PIP (or Picture in Picture) mode where an alternate video input can be displayed on top of your current picture. This means you can keep an eye on your football game while checking your CCTV system to see who is at the door!
Features
- SDI / HD-SDI to HDMI
- Equalized Looping SDI / HD-SDI output
-
Supports 1080p@23.9 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60Hz
1080i@50/59.94/60Hz
720P@50/59.94/60Hz
576i @50Hz
480i@59.94 / 60Hz
- HDCP 1.4 Compliant
- Uses 5V power (power adaptor included)
Specifications
| Operating Temperature Range | -5 to +35°C (+23 to +95°F) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Formats |
1080i @ 50/59.94/60Hz
1080p @ 25Hz 1080p @ 29.97Hz 1080p @ 30Hz 1080p @ 60Hz |
| Video Input | 3G-SDI / HD-SDI / SDI |
| Outputs |
HDMI
SDI/HD-SDI Loop-out (75 ohm, unterminated) |
| HDMI |
|
| HDCP | Compliant HDCP |
| Power consumption | 2.5W (Maximum) |
| Dimension (L×W×H) | 95×95×29mm |
| Net Weight | 245g |
Click on images for larger version

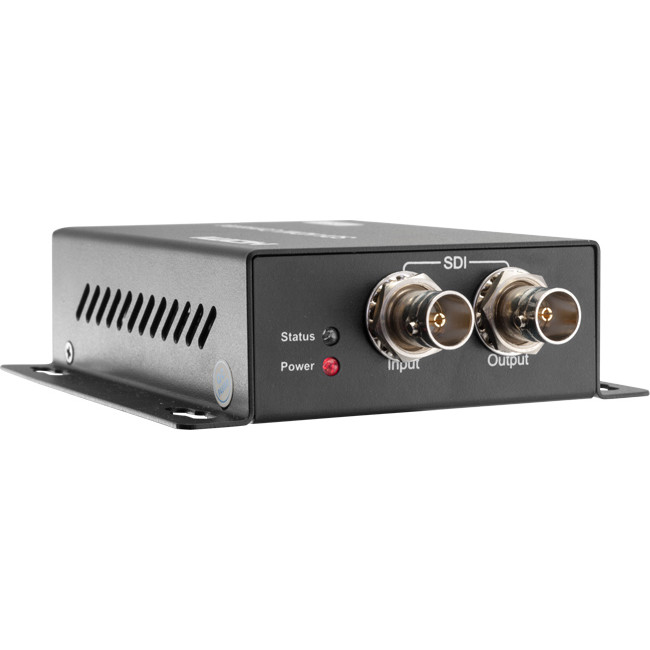

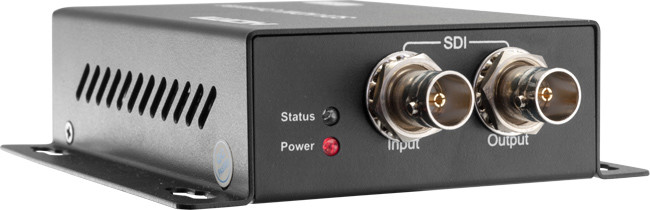

SDI input and output with LED indicators for power andstatus

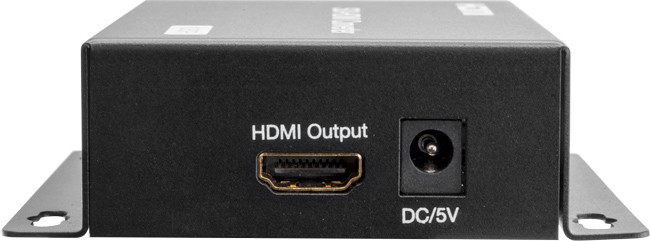

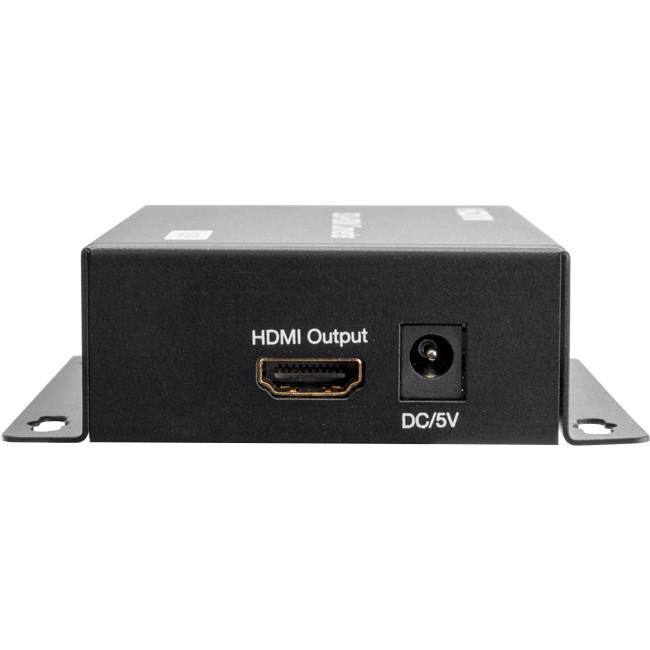

HDMI output and 5V DC power socket
