Features

  • Measurement of the power of optical sender (dBm and W)
  • Insertion loss test of optical devices
  • New REF user-defined
  • FC / SC / ST general-purpose interface
  • 5Wavelength: 850/​1300/​1310/​1490/​1550/​1625nm

Specifications

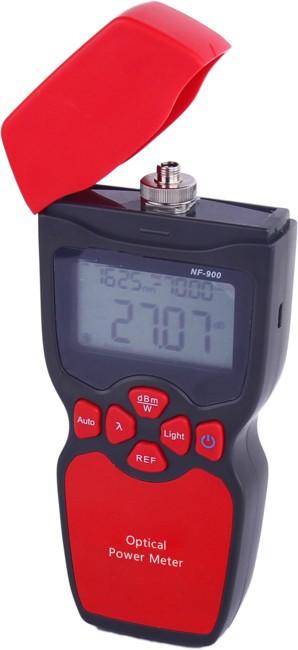

Model NF-900
Power metre Power detecting range (dBm) -70 ~ +10 -50 ~ +26
Wavelenth (nm) 800-1700
Probe InGaAs
Detection limit ?1.0mm
Standard wavelenth 850, 1300, 1310, 1490, 1550, 1625nm
Display resolution 0.01dBm
Working temp -20 ~ +70°
Power supply 1.5V * 3pcs battery (not included)
Overall dimension 160x75x32mm
