NVR8CHECO – 8 CHANNEL NVR WITH 4CH POE (Discontinued)

CCTV Calculator Calculate everything!

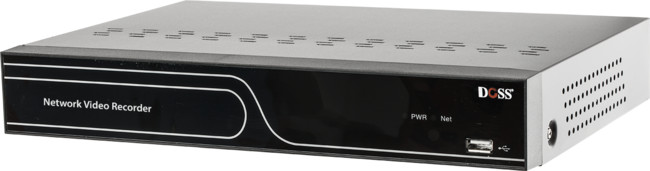

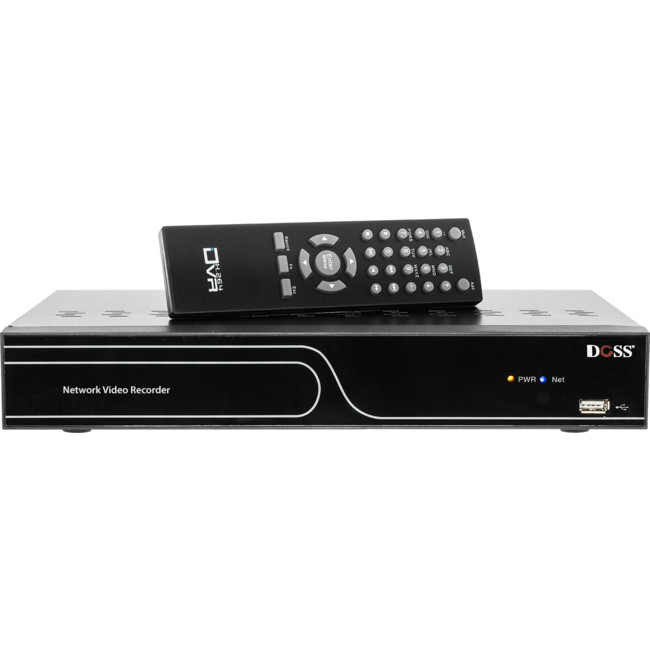

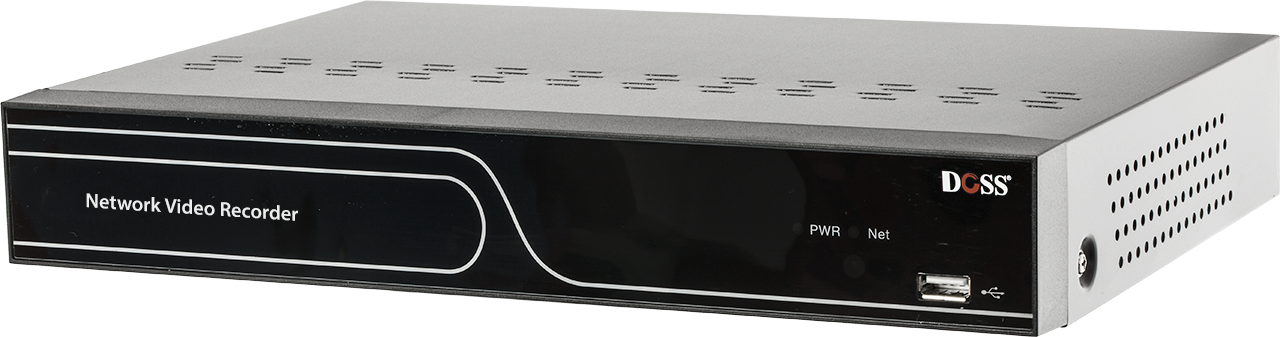

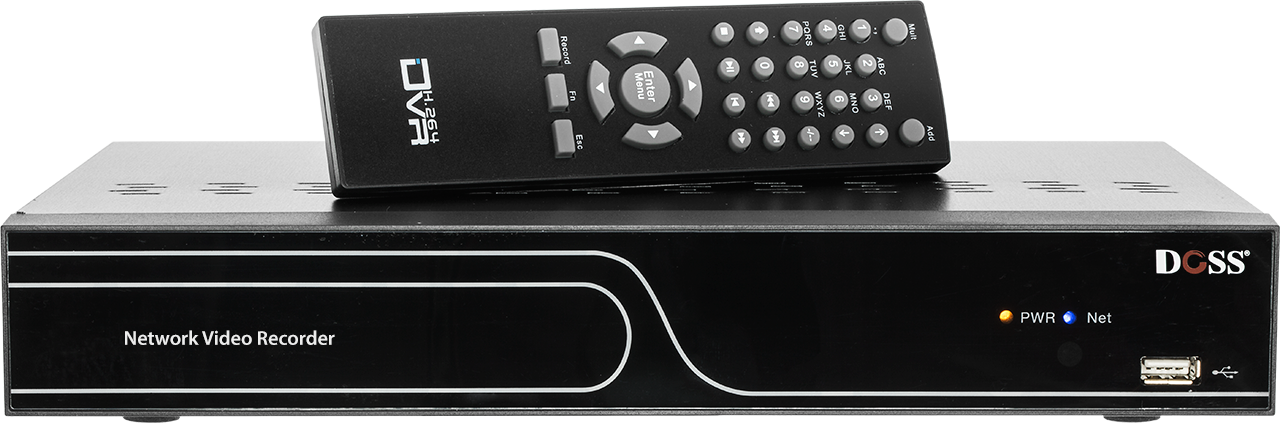

Doss 8 channel NVR is a budget NVR that is suitable for all your daily needs.

• 8CH 1080P full real-time video access, less than 1U NVR case
• Supports 4CH standard POE power supply
• H.264 dual-stream compression, embedded linux operation system
• Supports sync video recording, playback, remote monitoring and backup
• Fits one hard drive, supports maximum storage of 6 TB.
• VGA/​HDMI sync output, supports 1080P HD preview
• Supports 15 times electronic zoom preview and palyback video image
• Standard ONVIF, GB28181 protocols optional
• Supports alarm snapshot, Email sending
• Supports DDNS, EMAIL, UPNP, NTP, P2P
• Supports WEB, mobile viewer, Client, CMS
• Supports external alarm

Specifications

VIDEO
Video input	8CH 1080P / 8CH 960P / 8CH 720P
Video compression	H.264
Video output	VGA/​HDMI sync output
	1920*1080, 1440*900, 1280*1024, 1366*768, 1024*768, 800*600
Video bit rate	64-8000Kbps
Video resolution	1080P / 960P / 720P / D1 / VGA / 4CIF / 2CIF / CIF / QCIF
Image display	1/​4/6/​8/9
Snapshot	BMP Supported
Motion detection	396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable
AUDIO
Audio compression	G.711A
Audio input	IPC complex audio input
Audio output	Not Supported
Bidirectional talk input	Not Supported
VIDEO RECORDING AND PLAYBACK
Video frame rate	1-30fps
Record mode	Manual, alarm, MD, regular
Sync playback	1CH 1080P / 4CH 960P sync playback
Search method	Time, calendar, event, channel
Video playback	Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback
STORAGE AND BACKUP
Interface	1 SATA
HDD capacity	Single, Max.6T
Backup location	Local HDD, network storage
Backup method	Network, USB storage device, USB recorder
FUNCTION
Network protocol	TCP/​IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF
Interface protocol	Onvif, RTSP, GB28181 optional
Mobile surveillance	Support Apple, Android
Internet explorer	Support IE, Chrome, Firefox, Safiri
Intelligent detection	Motion detection, video loss, privacy mask, tampering alarm
EXTEIROR INTERFACE
Network interface	RJ45 10M/​100M adaptive Ethernet port
RJ45 interface	4CH
Alarm input	2CH
Alarm output	1CH
RS-485	1 RS485, support FS-KT301 keyboard
USB port	2, USB2.0, support WIFI/​3G extensions
ESATA	Not Supported
GENERAL
Power supply	DC48V/​3A
Power consumption	<10W (Without HDD)
Operation temperature	-10°C ~ 55°C
Dimension (mm)	300 (L) * 209 (W) * 48.5 (H)
Weight/​PCS (g)	2 Kg

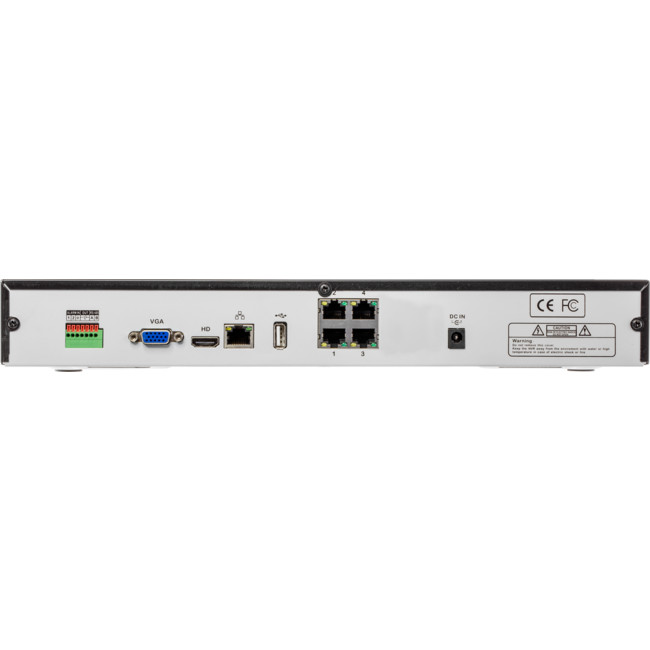

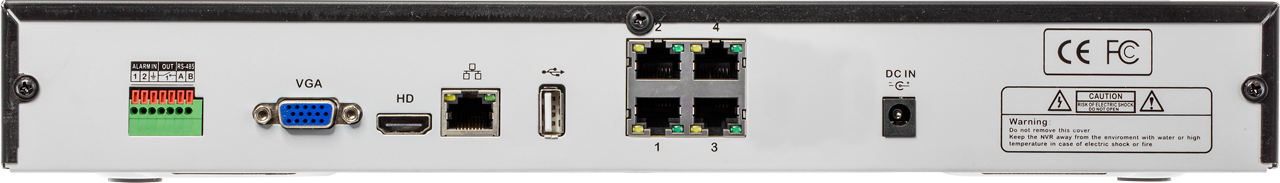

1. USB 2.0
2. RJ45 network interface
3. HDMI video output
4. VGA video output
5. DC48V
6. Alarm output
7. Alarm input
8. RS485

I’ve just hooked up my NVR8CH and I can’t access it—I’ve tried the default password "123456" but it won’t let me continue.

The NVR8CH comes with no password out of the box. You can simply press enter when asked for a password. Remember to set one up from the menu later!

The video from my camera is corrupted.

By default, the NVR main stream is set to 720P, whileyour camera stream may be set to 1080P. Setting the NVR’s stream to 1080P solves the problem.

To change the NVR’s main stream format:

1. Open the NVR’s settings menu
2. Navigate to Device > Device Info
3. Change "Video Format" to either of the [1920×1080] options
4. Reboot the NVR and the problem should be resolved.

My Doss NVR4CH can’t find my ACTi IP Camera.

Firstly, your ACTi IP Camera may not be running the latest firmware. If not, update it first. Finally, both the NVR and ACTi IP camera need to be set to use ONVIF only.

• 8 channel NVR
• 2x Sata Cable
• HDD power cable
• 48V DC power supply
• Mouse
• Software CD
