Features

CCTV Calculator Calculate everything!

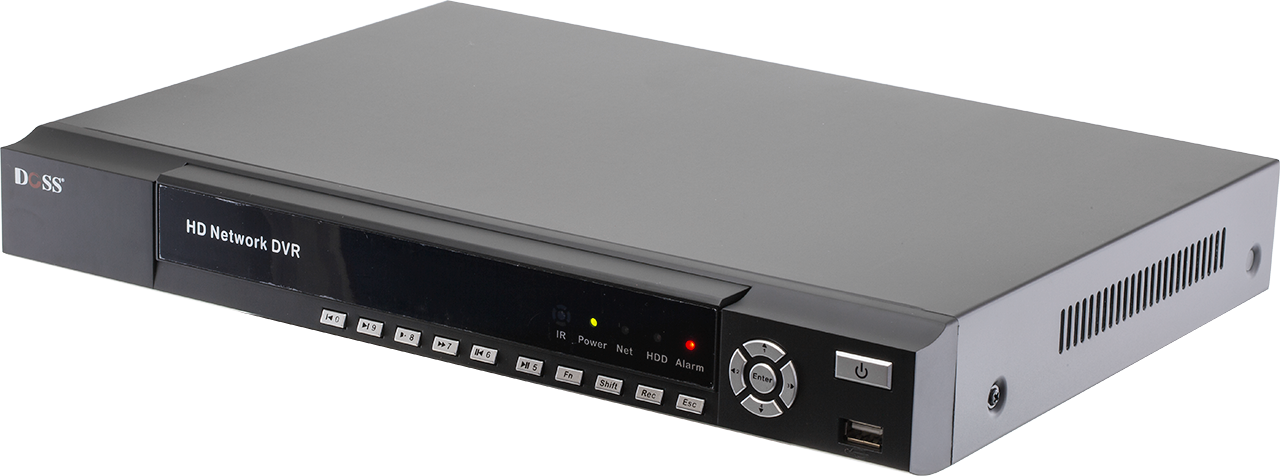

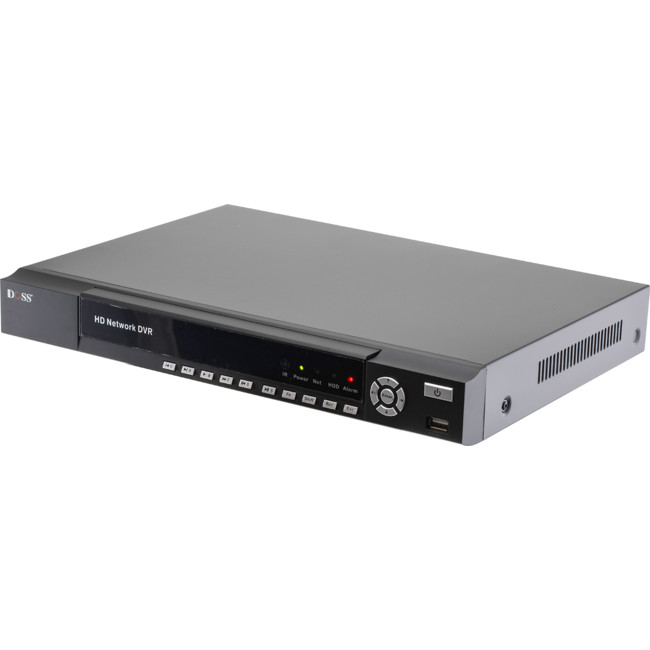

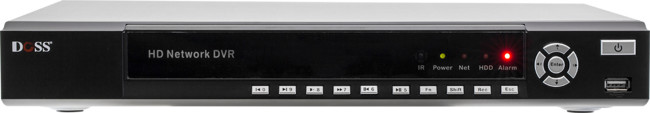

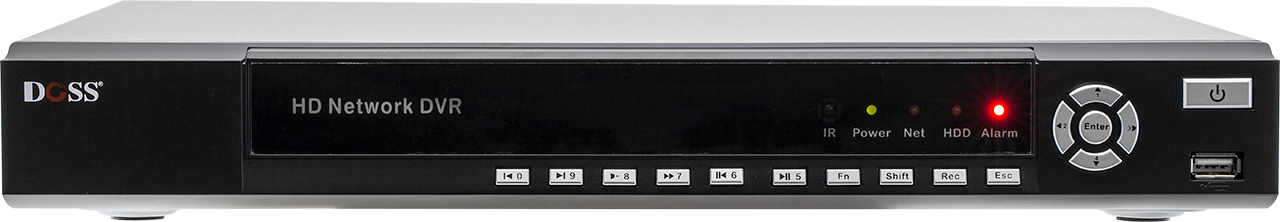

Doss 16 channel Hybrid 1080P AHD video recorder provides the solution for easy setting up home CCTV system. It could work with analogue, analogue HD and IP cameras. It enables you to play back, record and remote view functions.

  • AHD 2.0/​analog/​IP hybrid video access
  • H.264 dual-stream decoding
  • Embedded Linux operation system
  • Supports synchronic video, playback, remote monitoringand back-up
  • VGA/​HDMI sync output, supports 1080P HD preview
  • Supports 15 times electronic zoom preview and playback
  • Supports EXT alarm
  • Supports DDNS, Email, UPNP, NTP, P2P
  • Supports WEB, mobile app, client software access

Specifications

Video
Video Standard PAL; NTSC
Video Compression H.264
Video Resolution 1920×1080
1280×960
1280×720
960×576
Video Output VGA/​HDMI sync output, 1080P@60Hz
Bit Rate 64-8000Kbps
Image Display 1/​4/6/​9/16/​25/​36
Motion Detection 396 (22*18) surveyed area can be set in each channel and sensitivity can be adjusted
Audio
Audio Encoding G.711A
Audio Input 4CH
Audio Output 1CH
Video Recording And Playback
Video Frame Rate AHD: 13 fps (PAL) /​15 fps (NTSC); Analogue/​IPC
Analogue/​IPC: 25 fps (PAL) / 30 fps (NTSC)
Record Mode Manual / Alarm / Schedule
Playback Synchronic 4 CH
Search Method Time, Calender, Event, Channel
Video Backup
Interface 2 SATA
HDD Capacity Single Max. 6T
Backup Location Internal HDD, Network
Other Backup Network, USB
Network Management
Protocol TCP/​IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPOE, UPNP, NTP, P2P, Onvif

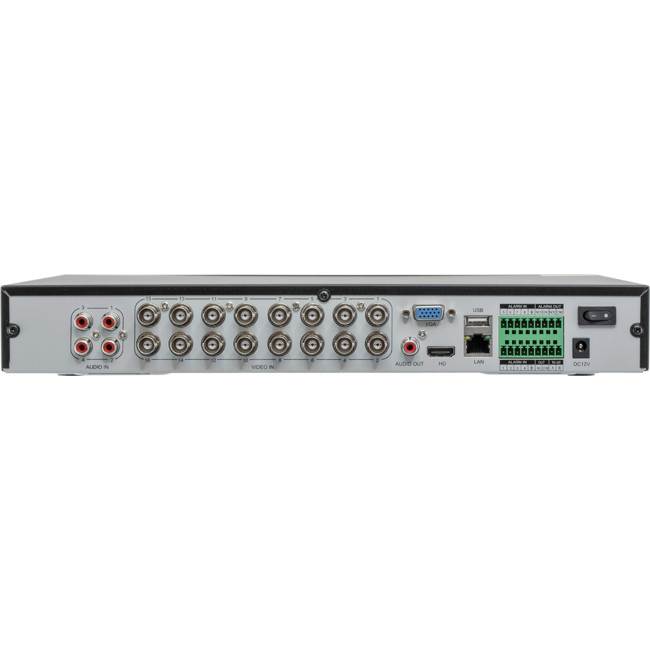

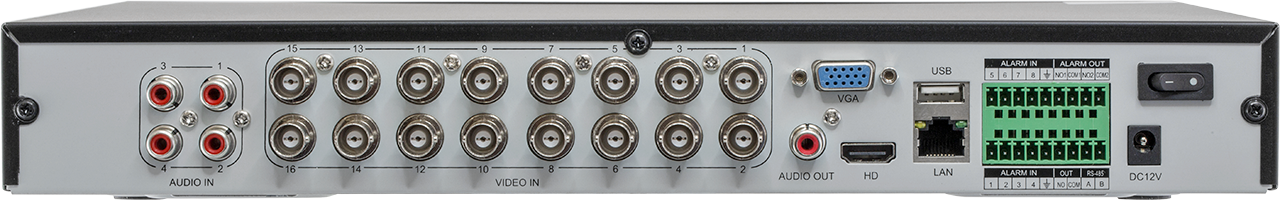

Exterior Interface
Video Input 16CH BNC
Network Interface RJ45 100M Ethernet Port
Alarm Input 8 CH
Alarm Output 3 CH
USB Port 2 USB2.0
General
Operation Temperature -10°C-55°C
Operation Humidity 10%-90%
Power Supply DC12V/​5A
Power Consumption 35W (without HDD)
Dimension (mm) 360 (L) *250 (W) *44 (H)
Weight 2 Kg
