Features
CCTV Calculator Calculate everything!

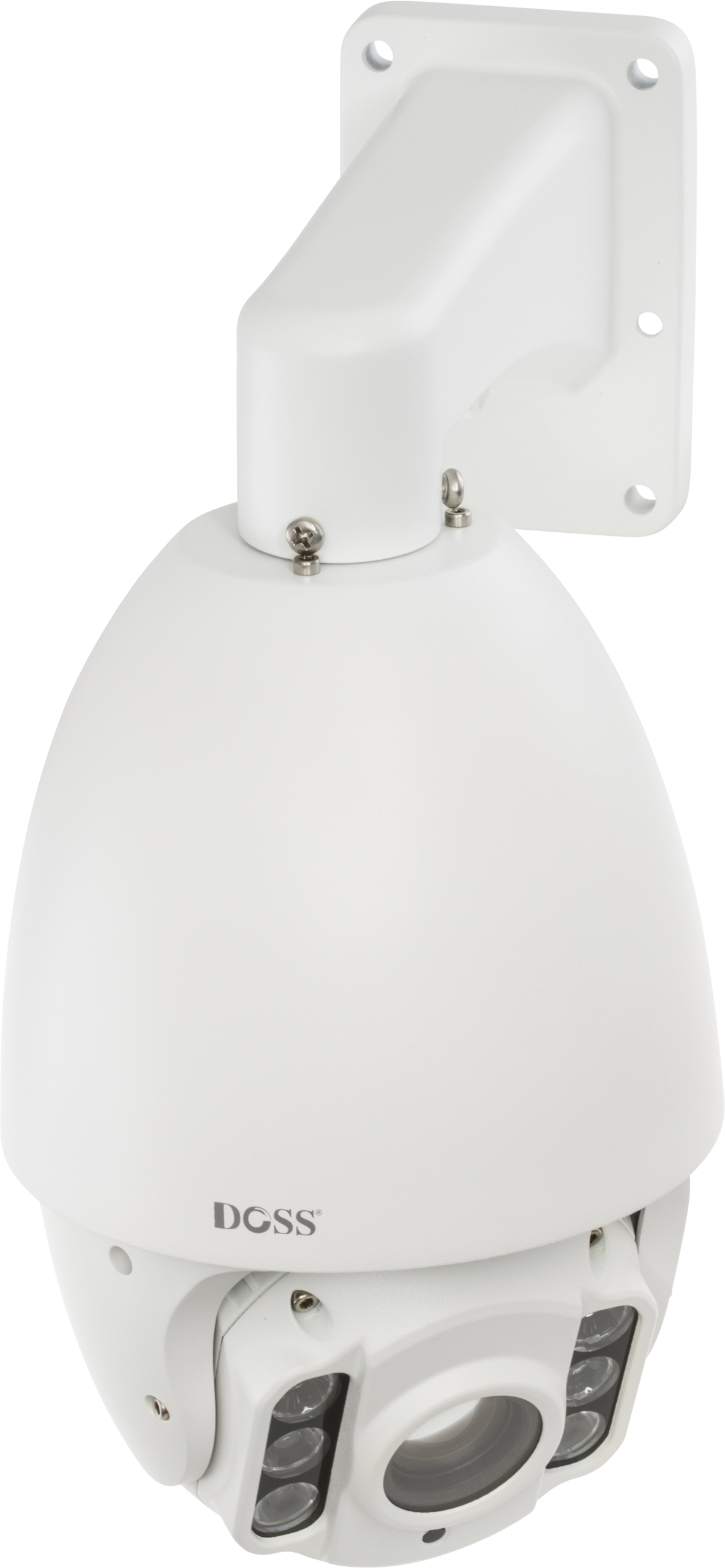

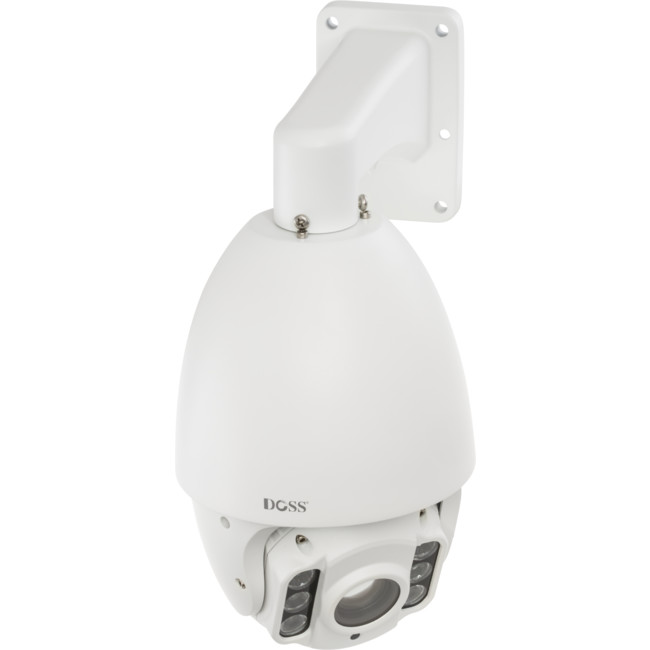

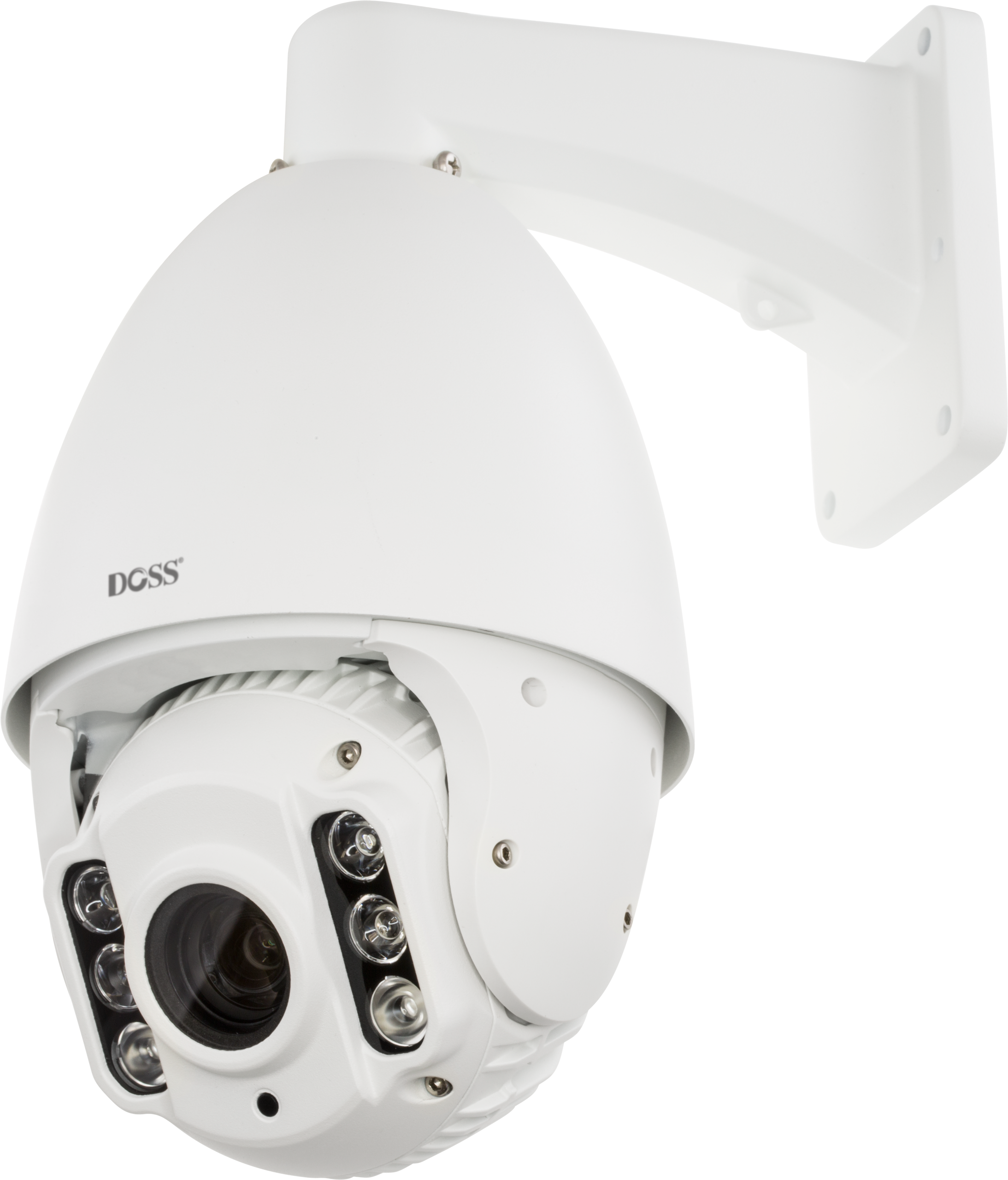

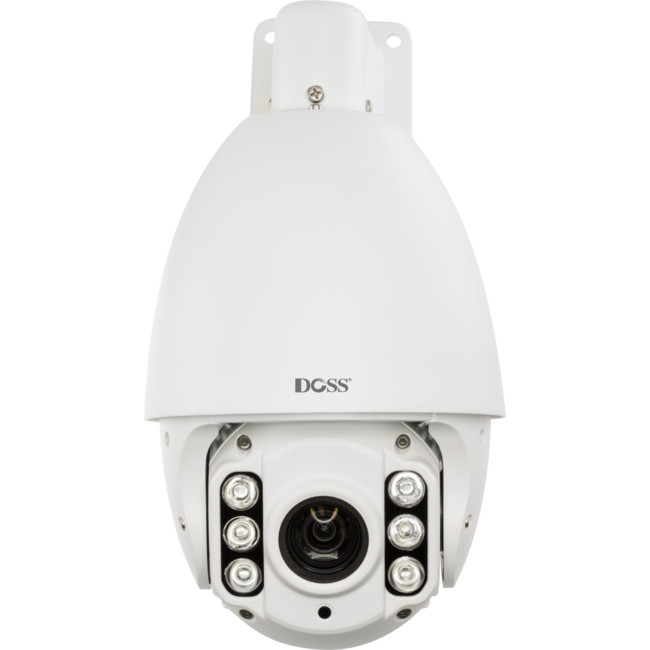

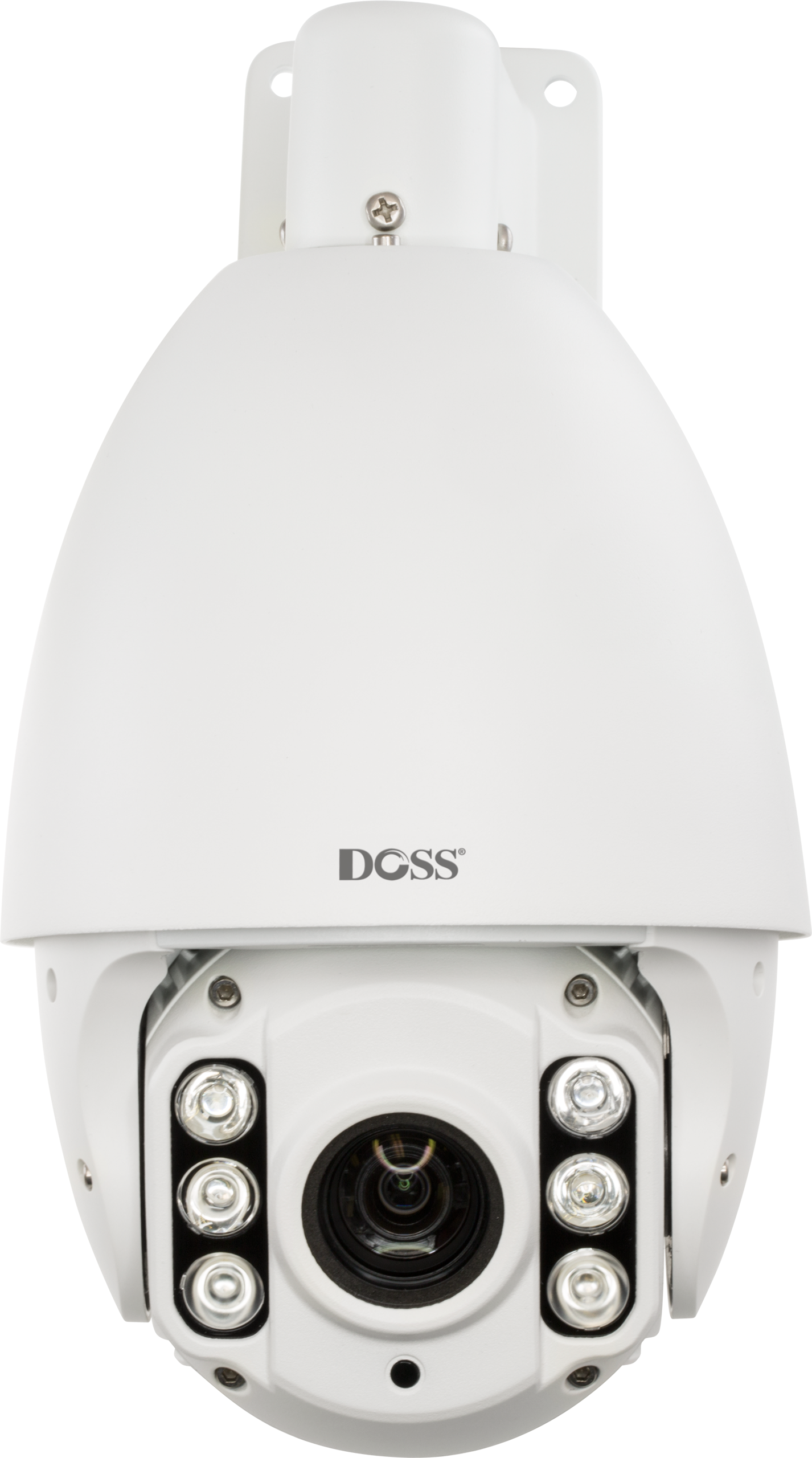

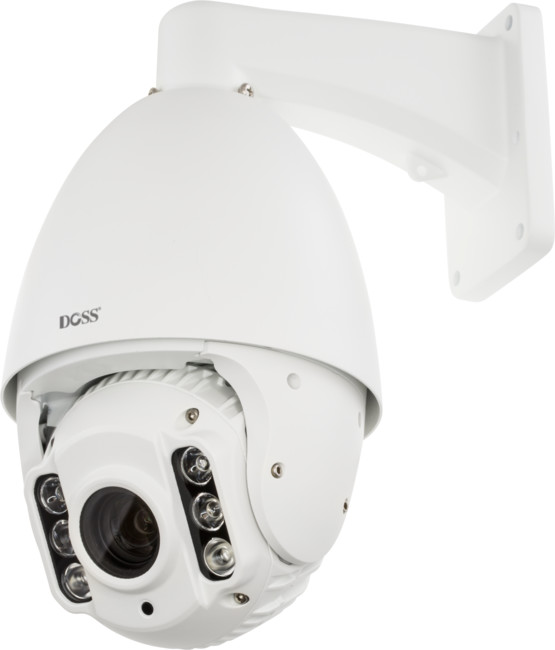

DOSS DMZ50IPW camera enables you to keep an eye on your territory 24/7!!! It has 2MP camera for clear image taking or recording as well as tilt and zoom in functions. Area scan function provides routine scanning of the areas of yourchoice, non-stop unless you told it to. Easy set up and easycontrol, powered by POE means no more hassle for wiring power cable!
- 2MP HD IR network intelligent high speed dome
- 1/2.8" CMOS sensor
- Ambarella zoom module
- Encoding system: H.264/MJPEG, dual stream output
- F= 4.7mm ~ 47mm
- 10x optical zoom
- Full HD 1080P
- Horizontal 360° continuous rotation, 90° vertically auto rotation
- Audio alarm input/output
-
MicroSD card slot
- Accepts up to 64GB
- Support ONVIF / HTTP / TCP / DDNS / NTP / SMTP / RTSP
- ONVIF Profile S protocol, GB/T28181 protocol
- 255 preset, 4 pattern, 4 cruise
- Lightning-proof, IP66
- DC24V / POE
Specifications
| ZOOM MODULE | |
| Image sensor | 1/2.8", 2.0MP CMOS sensor (Ambarella A5S66+IMX222) |
| Effective pixels | 2MP |
| Min. illumination | Colour: 0.06Lux@F1.6; B/W: 0.01Lux@F1.6, 0Lux (IR ON) |
| IR distance | 50-80m |
| White balance | Auto / White low lamp / 4000K / 5000K / Sunshine / dark clouds / flash light / fluorescent lamp / high fluorescent lamp / water bottom / customized/ |
| Gain control | Auto, manual |
| 3DNR | Supported |
| S/N Ratio | 50dB |
| BLC | Supported |
| WDR | DWDR |
| Electronic shutter | Max:1/15, Min: 1/5000 |
| Day & Night | B / W, colour, auto |
| Optical zoom | 10X optical zoom |
| Focus mode | Auto / Manual |
| Focal length | f=4.7mm ~ 47mm |
| Iris | F1.6 (W) -F3.0/ (T) |
| FUNCTION | |
| Horizontal | 360° endless |
| Vertical | 0°~90° auto roration |
| Rotation speed | Manual: 0.1- 200°/sec, Preset: 240°/sec |
| Preset accuracy | 0.1° |
| Proportion zoom | Supported |
| Preset | 255 |
| Cruise | 4 |
| Pattern | 4 |
| Area scan | Supported |
| PTZ Watch | Preset / zone / cruise / pattern / OFF |
| Smart alarm | Network disconnect, IP address conflict, Storage plena, Storage error, Access violation |
| Smart image enhance | Not Supported |
| NETWORK | |
| Max image dimensions | 1920*1080 |
| Dual stream | Supported |
| Video compression | H.264 |
| Audio compression | Not Supported |
| Network protocols | IPv4, HTTP, FTP, SMTP, UPnP, DDNS, NTP, RTSP, TCP, UDP, DHCP |
| Password protection | Supported |
| Character display | Supported (channel, date) |
| Mobile surveillance | Supported |
| SYSTEM INTEGRATION | |

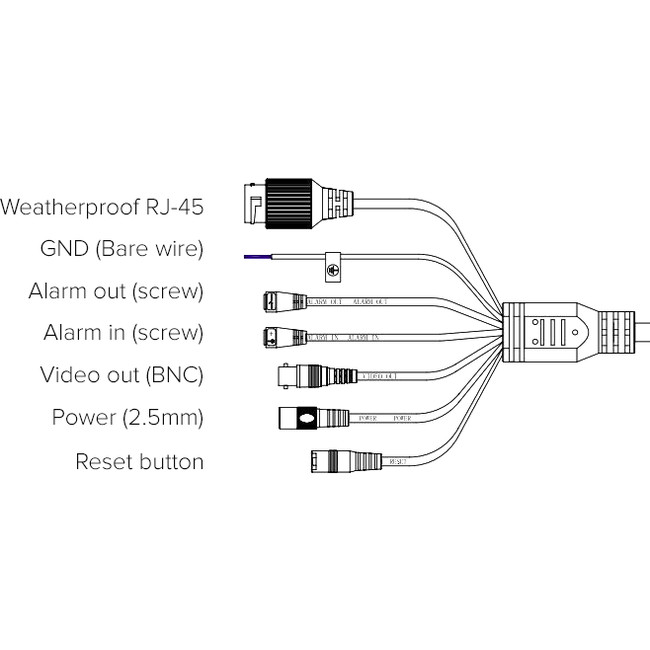

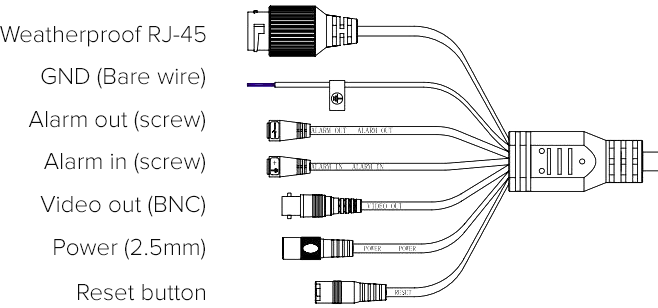

| Alarm in | 1CH |
| Alarm out | 1CH, support alarm linkage |
| Alarm Linkage | Email, FTP |
| Audio in | Not Supported |
| Audio out | Not Supported |
| Network interface | Built in RJ45 network port, support 10M/100M network data |
| Analog video output | Supported |
| RS485 port | Not Supported |
| Browser | Support IE8, IE9, IE10 and based on the IE core browsers |
| GENERAL | |
| Operating temperature / humidity | -20°C ~ 55°C/0%-90% (Can enable cold start and self-heating below -20°C, and running normal after 30 minutes) |
| IP rating | IP66 |
| Power supply | DC24V 1.5A / POE (IEEE 802.3 AF STANDARD) |
| Power consumption (max) | 25W |
| Dimensions (mm) | 219 (H) *149 (D) mm |
| Weight/PCS (g) | 2.7kg |
FAQ
Where is MicroSD card slot located?
1. Undo the 4 screws for camera lense cover
2. Open camera lense cover
3. Pull out camera lense carefully and find the MicroSD card slot located on the lense body.
Why I can’t PTZ control through DOSS Hybrid DVR?
DMZ50IPW only supports IP PTZ control, therefore it will not work with RS485 controllers.
To be able to control it through DOSS Hybrid DVR, please make sure that Hybrid DVR has been set using IP signal (Not analog signal through BNC connectors). This can be done in settings device page under stream type. Also please make sure RS485 has been set to keyboard.
