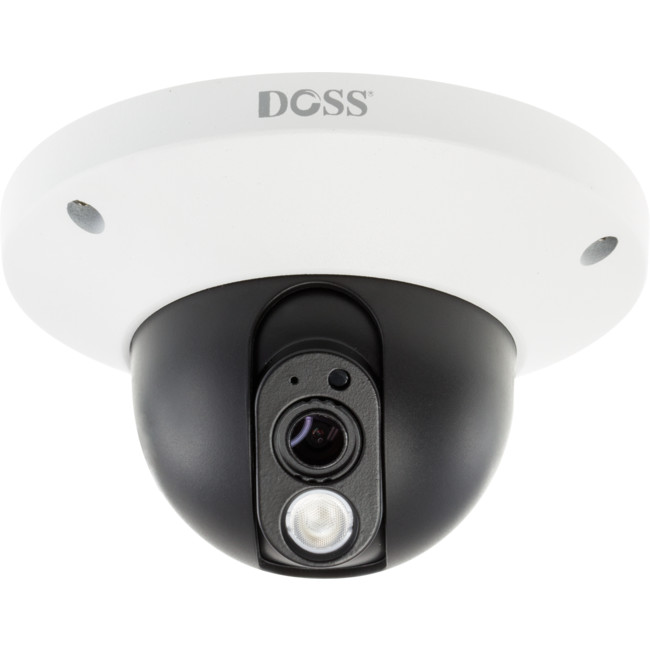

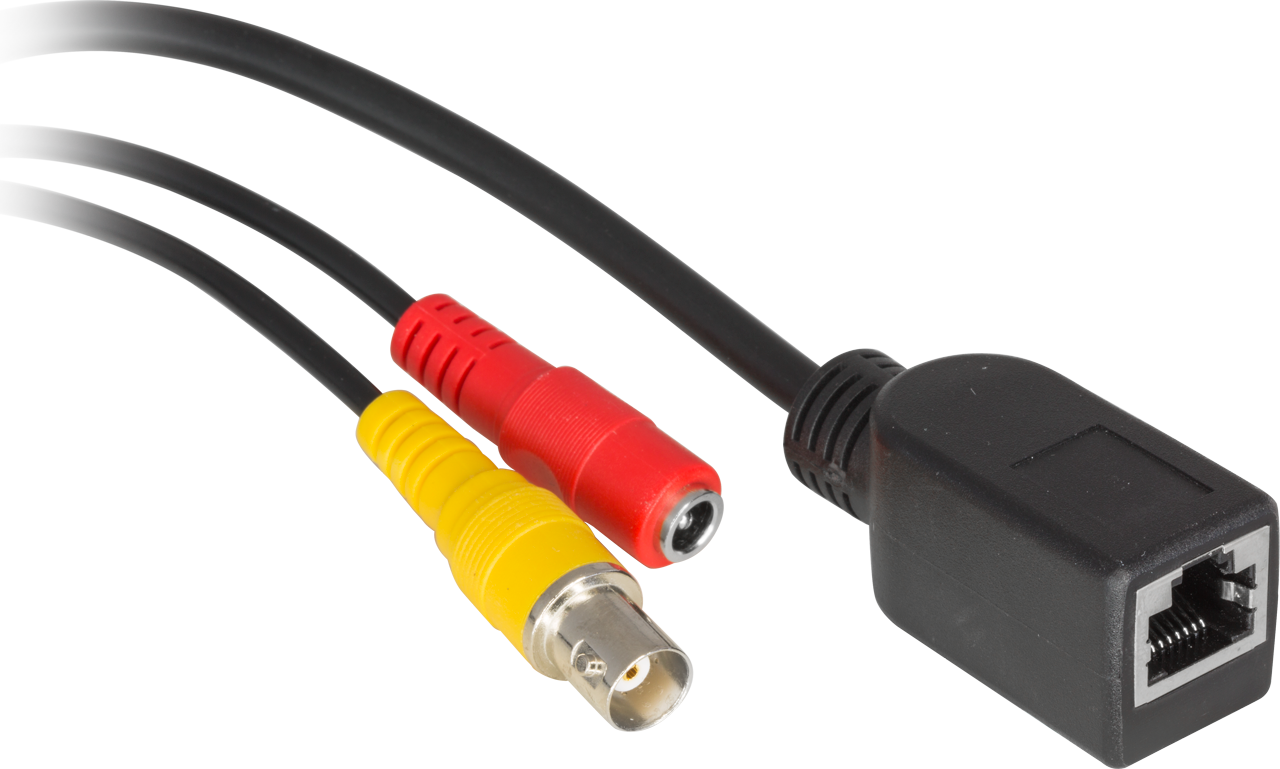

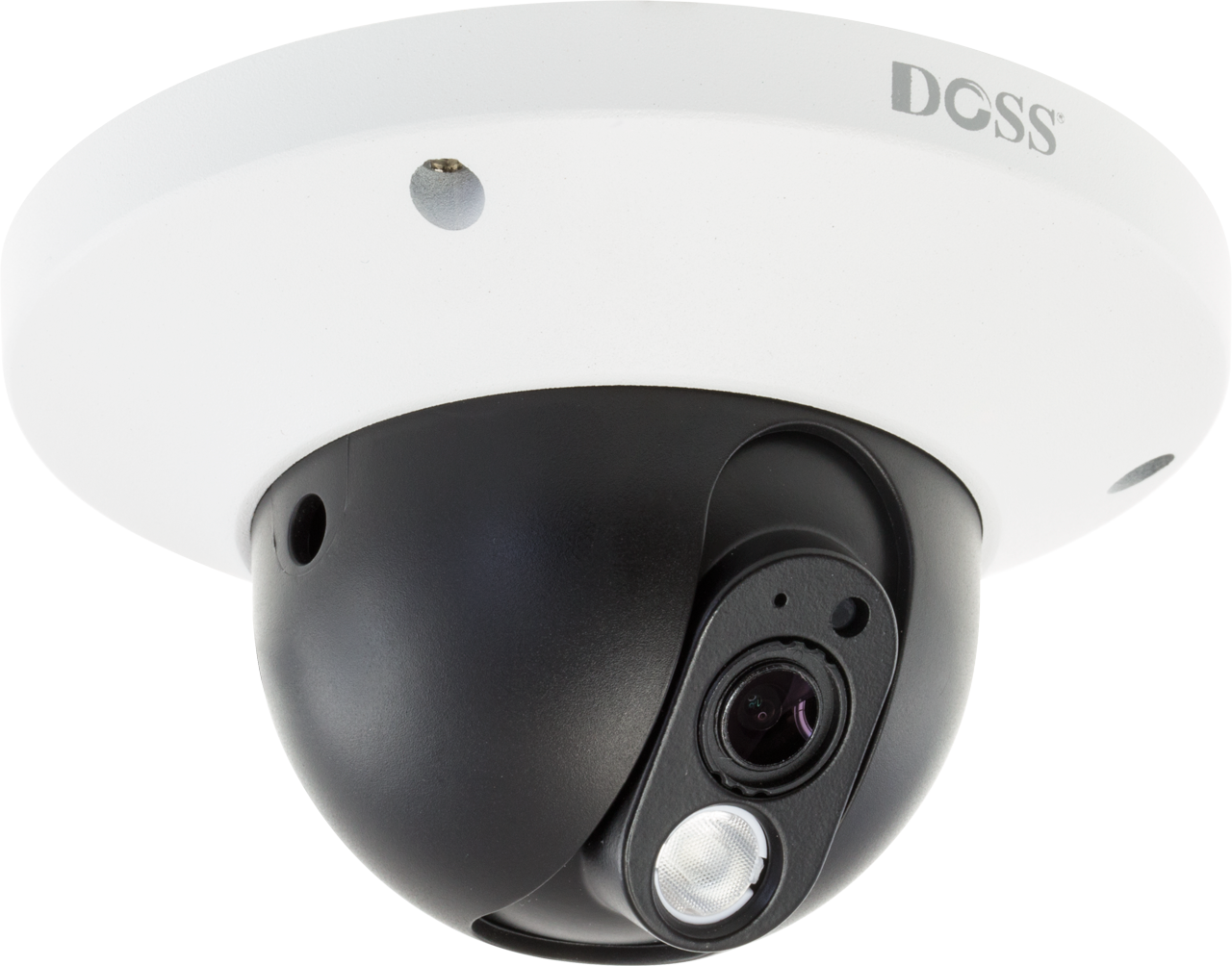

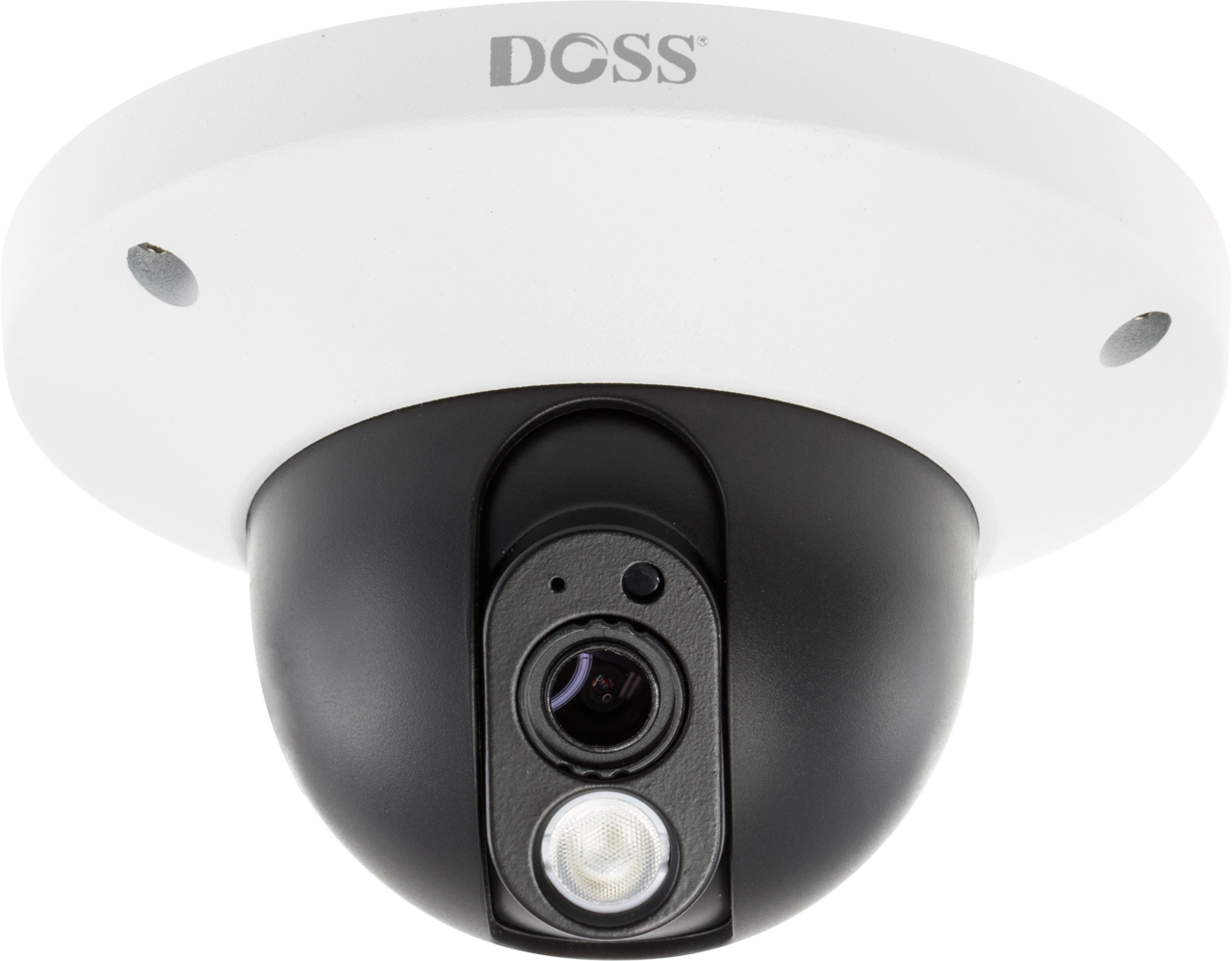

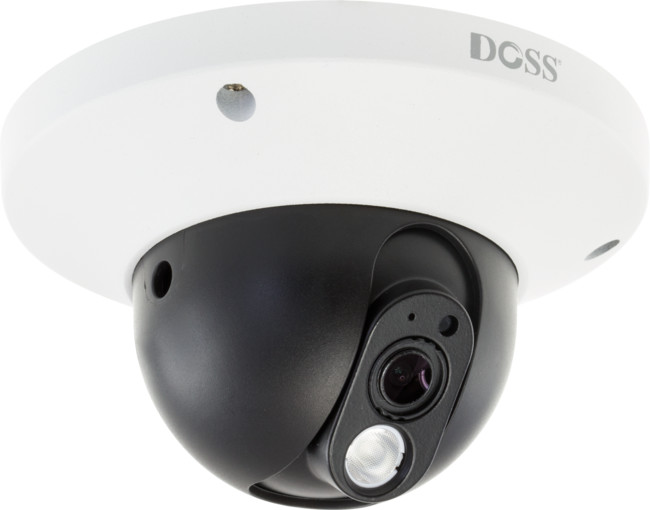

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.

  • 1/​2.8" Sony CMOS Sensor
  • Hi3516C DSP
  • h.264 / MJPEG encoding
  • 1080P (Full HD) recording and viewing
  • Conforms to ONVIF (Open Network Video Interface Forum) protocols (Profile S v2.2)
  • Supports Power Over Ethernet (PoE)
  • 3.6mm (2MP) lens
  • Approx view angle (Horiz): approx 83°
  • Dual stream
  • Privacy zone
  • DC12V with PoE

Specifications

CAMERA
Sensor 1/​2.8" SONY 2.43 Mega-pixel Progressive scan CMOS
Min. illumination 0 Lux / F1.4 (IR On)
Electronic shutter
 Auto / Manual (1/​25 ~ 1/​10000)
Day / Night Auto / B / W / Colour / EXT ICR switching
Video Parameter DWDR, Mirror, 3D Noise reduction, Sharpness / Lightness adjustable
IR Range 10~15m
IR LEDs 1 x IR Array Leds
Adjustable IR Brightness No
Lens 3.6mm 2MP fixed Lens
AUDIO / VIDEO COMPRESSION
Video compression H.264
Encoding Dual-stream, Main stream
PAL: 1920×1080 25fps; NTSC:1920×1080 30fps
Effective pixels 1920×1080
Encoding System Constant bit rate, Variable bit rate optional
Video Bit rate 16kbps-8000kbps
Stream Type Complex stream / Video stream
Audio Compression G.711A
Audio Bit rate 64 kbps
NETWORK FUNCTION
Motion detection Can be set to a single detection zone, Multi-level sensitivity can be set
Privacy zones 4 zones

Snapshot

 Support JPEG format, max. resolution based on encoding resolution
Password protection Support
Character display Support (Channel & Date)
Alarm function Video loss, Network disconnect, Tampering alarm
Mobile surveillance Web-browser, Apple, Android
Protocol TCP/​IP, UDP, HTTP, DHCP, RTP/​RTSP, DNS, DDNS, NTP, PPPoE, UPNP, SMTP
Port protocol I8, ONVIF
INTERFACE

Network Interface

 RJ45 10M / 100M adaptive

Analog video output

 1CH CVBS analog video output
GENERAL
Operating Conditions
-10°C ~ 55°C
Protection Level IP 65
Power Supply DC12V / PoE (IEEE 802.3 AF STANDARD)
Power Consumption <6W
Dimensions Ø100 x 62mm
Weight
 0.4kg

FAQs

Can I use a DOSS IP camera with my NAS?

If your NAS has NVR functionality that is compatible with the ONVIF protocol then yes. Our DOSS IP cameras have been tested fine with Synology Surveillance Station and QNAP VioStor NVR. By default, you can find the ONVIF protocol is accessed on port 8000 for all DOSS IP cameras.
