Discontinued

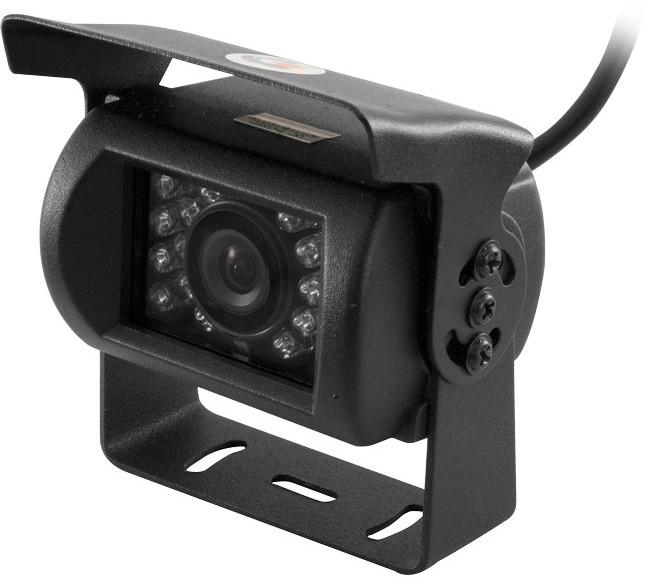

The IN10REV is the perfect package for use as a vehicle reversing camera but is also small enough and has a high resolution sensor making it suitable for discrete surveillance. It features IR LEDs so that even at night, obstacles and hazards will still be visible!

Note: The image output ofthe IN10REV is not reversed—or flipped horizontally—as the name may suggest. Please ensure that your monitor is capable of flipping the image if the purpose is for a vehicle reversing camera

Features

  • 1/​3" SONY Super HAD II CCD
  • Resolution: 540TVL
  • Min. illumination:color: 0Lux (IR ON)
  • Electronic shutter (Auto), Day&Night, Auto white balance
  • IR distance:5~10m
  • Lightning proof, DC12V
  • Dimensions: 80 (w) *76 (h) *54 (l) mm

Specifications

Pick-up device 1/​3" SONY Super HAD II CCD
Effective pixels NTSC:768*494,PAL:752*582
Resolution Color 540TVL
Min. illumination 0Lux (IR ON)
Sync system Internal
Scan system 2:1 interlace
S/​N ratio more than 50dB
Lens 3.6mm pinhole Lens (2.8mm M12 lens optional)
Electronic shutter Auto
White balance ATW
Day&Night Auto
Gamma 0.45
IR distance 5-10 m (18xF5)
Video output 1.0Vp-p Composite Video Output, 75 Ohm
Power supply DC12V± 10%
Power consumption (Max) 320mA/​DC12V (IR on)
Operation temp -20°C ~ 50°C
