Features

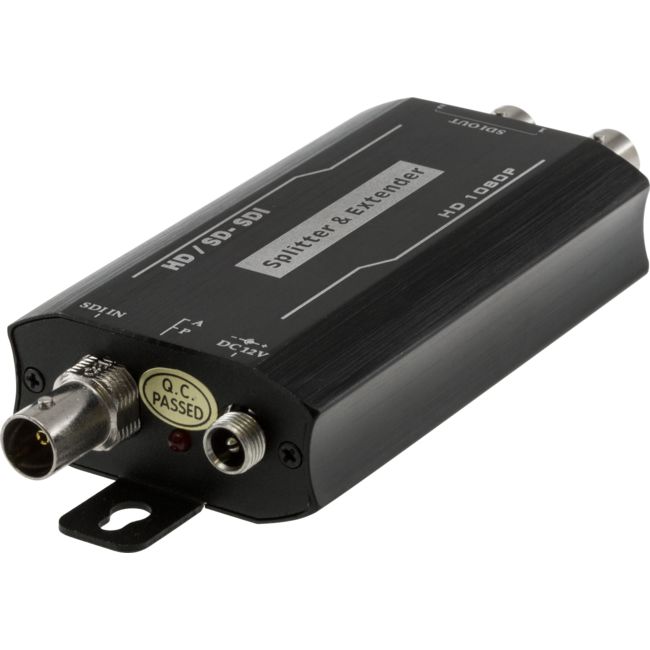

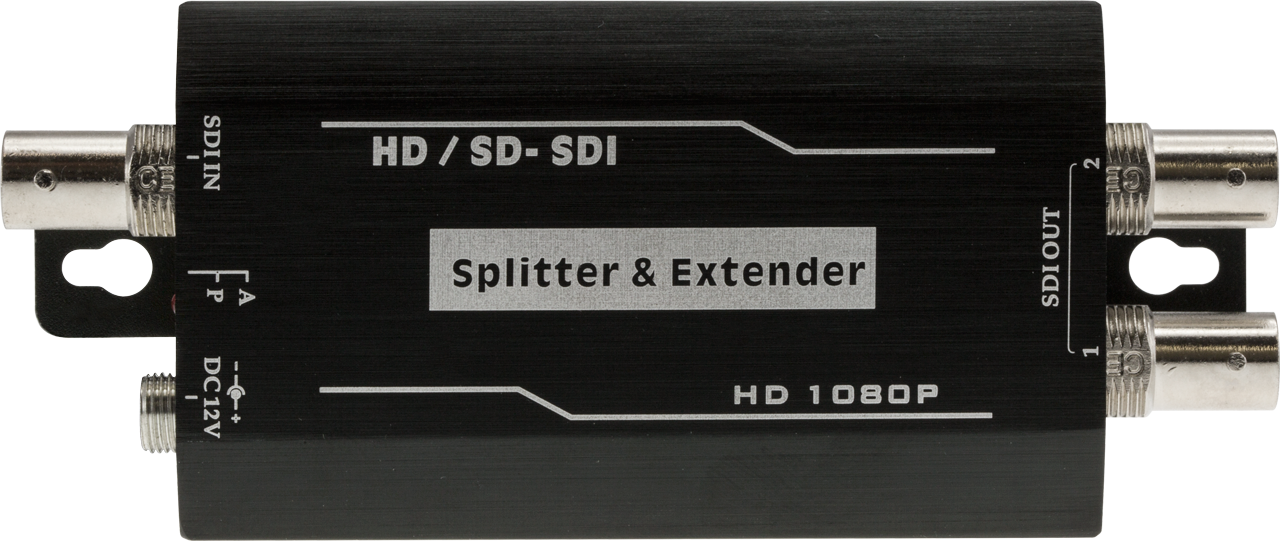

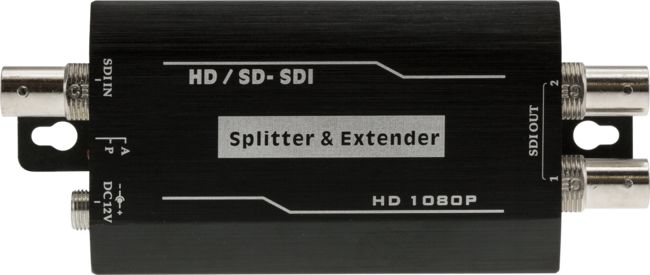

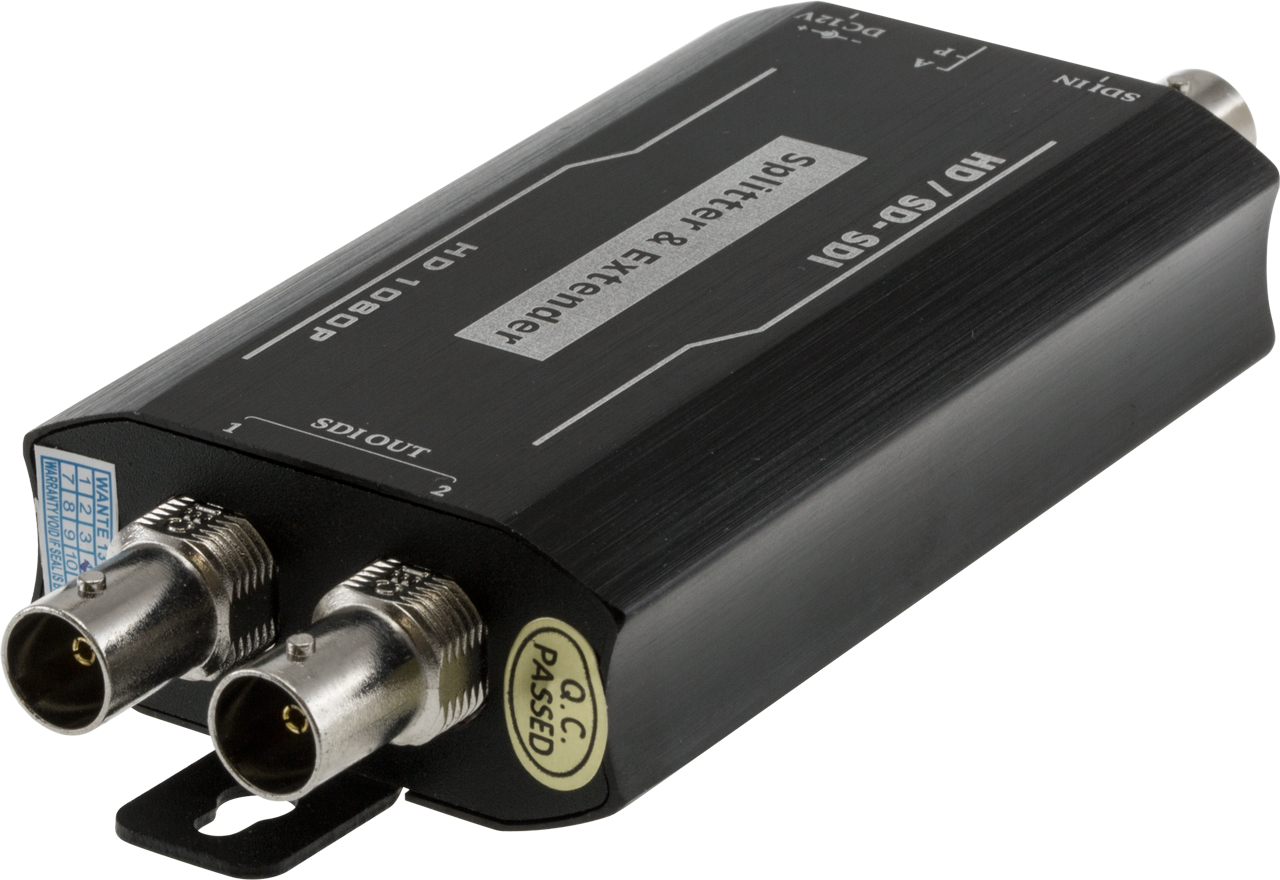

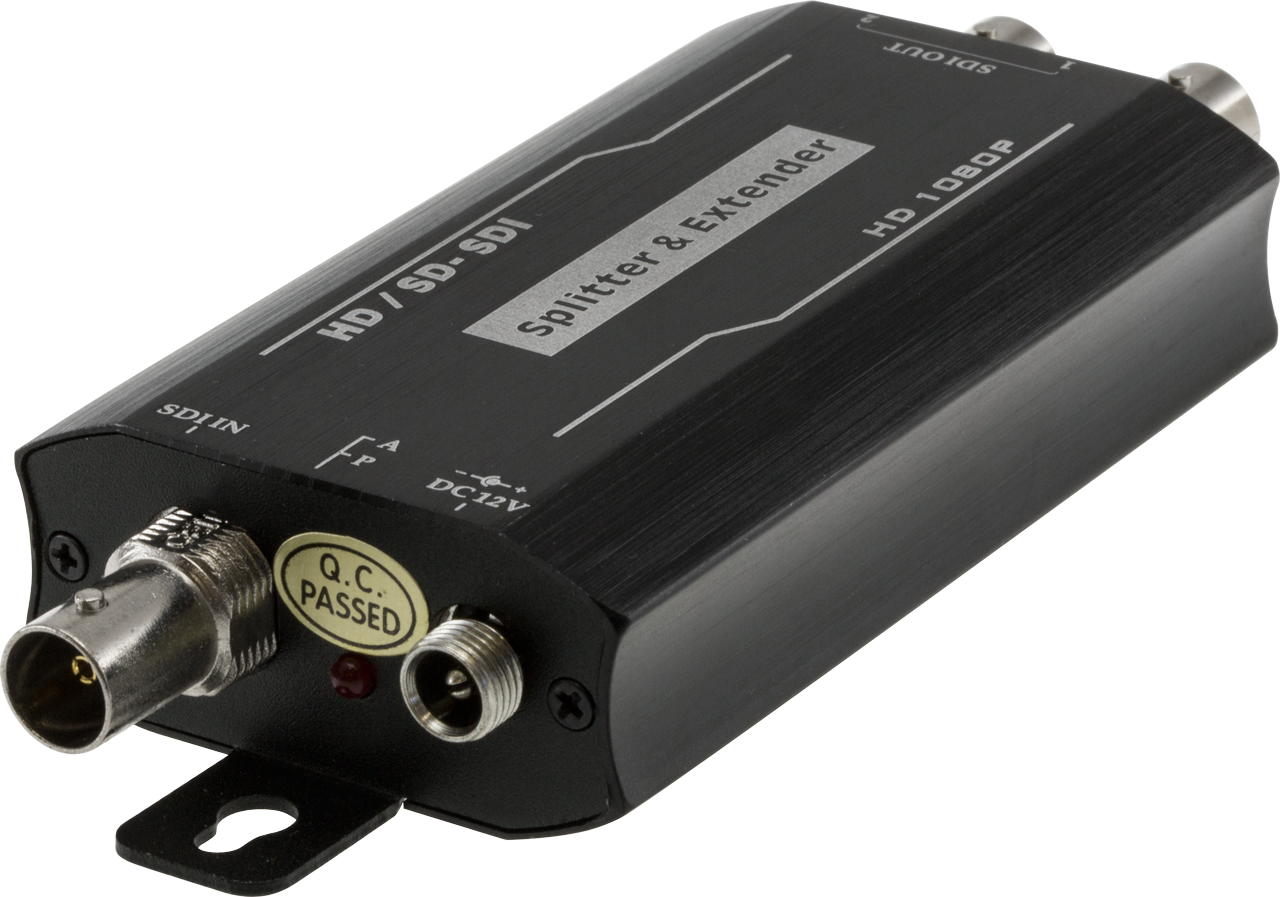

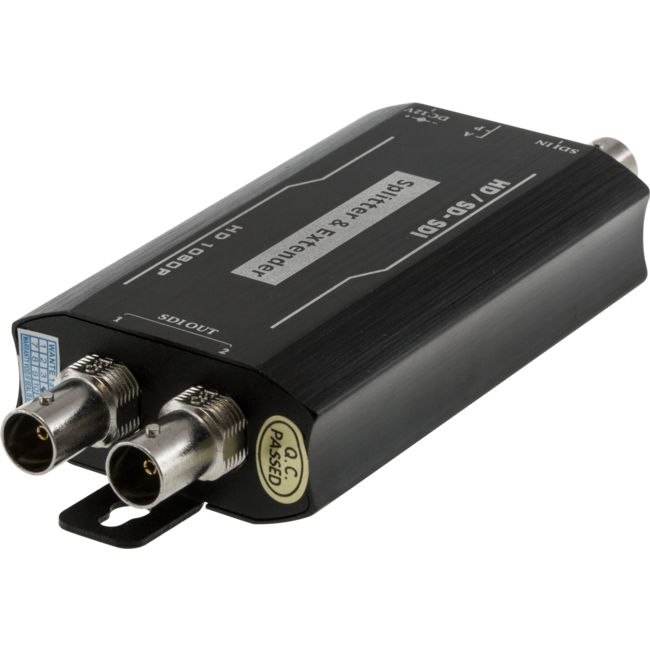

HD8002D 2-Port SDI Splitter allows a single SDI, or HD-SDI video source to be distributed to as many as two Hi-Def SDI/​HD-SDI devices at the same time without loss of signal. Crisp, highly defined visuals are generated in High Definition resolutions up to 1080p Full HD at 60 Hz.

  • Support SD-SDI (270Mbps), HD-SDI (1.485Gbps)
  • Full HD video format
  • Built-in Cable Equalizer, Re-clocker & Cable Driver
  • Distance (Maximum): SD-SDI 400m (1300ft), HD-SDI 200m (600ft)
  • Excellent SDI signal jitter suppression function
  • Power supply and SDI signal format indicator
  • Embedded ESD to protect the circuit
  • +12~24V DC

Specifications

Input signal 1x BNC (SDI, HD-SDI)
Input Signal Type SD-SDI (270Mbps)
HD-SDI (1.485Gbps)
Support Input Format
    SD-SDI:
  • 525i@59.94Hz
  • 625i@50Hz
    HD-SDI:
  • 720p@23.98Hz/​24Hz/​25Hz/​29.97Hz/
    30Hz@50Hz/​59.94Hz/​60Hz
  • 1080i50Hz/​59.94Hz/​60Hz
  • 1080p@23.98Hz/​24Hz/​25Hz/​29.97H / 30Hz
Video Standard
  • SMPTE424M
  • SMPTE292M
  • SMPTE259M
  • ITU-RBT.601
  • ITU-RBT.1120
SDI Signal Range 0.8Vp-p
SDI Impedance 75Ω
SDI Coupling Type AC Coupling
Distance (Max) SD-SDI: 400m (1300ft)
HD-SDI 200m (600ft)
Output signal 2x BNC SD-SDI, HD-SDI
Re-clocking Auto Support 270Mbps / 1.485Gbps
Power Supply +12~24V DC / Locking Power Connector
Power Consumption <10 Watts
Operating Temperature -10°C~60°C (14°F~140°F)
