The DOSS Range of UTP Video Baluns allow you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable.
The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported.
Applications
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, securities, financial information display system
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and banks
- School Campuses

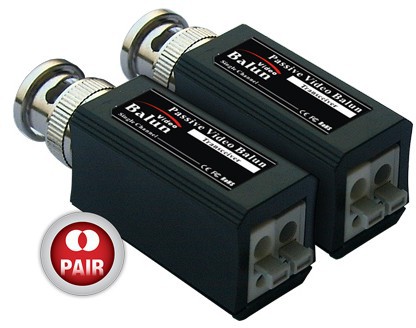

BVB4100P MINI PASSIVE BNC VIDEO BALUN PUSH PIN TERMINAL
Male BNC of BVB4100P allows connection directly to the camera or DVR. Tool-less push pin terminals allow easy and quick connection of UTP cable output. Working in pairs, the BVB4100P eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 400m (1300ft). The BVB4100P is also compatible with other Video Balun products from DOSS.
The superior interference rejection and low emissions ofthe BVB4100P allow signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existingcable infrastructure. The BVB4100P has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Basic Usage
Advanced Usage
click for larger image
Features
- Single Channel Passive Video Transceiver
-
Full-motion colour video signal up to 400m (1300ft) and
monochrome (B&W) up to 600m (1950ft) via UTP cat5e/6 - NTSC, PAL & SECAM video format compatible
- Real-time transmission
- No power required
- Two push-pin terminals; tool-less installation
- Male BNC connector
- Exceptional interference rejection
- Built-in TVS (Transient Voltage Suppressors) for surgeprotection
- Lightning protection design Grade III
- 50 dB crosstalk and noise immunity
- Compact size and easy installation
- ABS engineering plastic housing
Specifications
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | |
| Video | Video Format | PAL, NTSC, SECAM |
| Operating Frequency | DC to 5MHz | |
| Max Distance |
UTP Category 5e (24AWG)
Color: 400m (1300ft) B&W: 600m (1950ft) |
|
|
Common-mode /
Differential-mode rejection |
15kHz to 5MHz 60dB typical | |
| Impedance | Coax, Male BNC 75Ω unbalanced | |
| UTP, Push pin terminal 100Ω balanced | ||
| Attenuation | 1.5dB Max typical | |
| Wire Type | Network Wiring |
One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm) |
| Category Type | 2 or better | |
| Impedance | 100 ±20Ω | |
| DC Loop Resistance | 18Ω per 100m (52Ω per 1,000ft) | |
| Differential Capacitance | 62 pF/m max (19 pF/ft max) | |
| Power | No external power required | |
| Connector | Video input/output | Male BNC connector |
| Video input/output | Push pin terminal | |
| Protection | Surge Protection | Renewable solid state surge protection |
| Video Input |
2KV (common mode),
10/700µs IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
|
| Video Output |
2KV (different mode),
10/700µs IEC6100-4-5/1955 (GB/T 1726, 5-1999) |
|
| Mechanical | Housing | ABS engineering plastic |
| Body Color | Black | |
| Dimensions (L*W*H) | 42.4*17.8*17.4mm (BNC connector) | |
| Net Weight | 20g | |
| Environmental | Operating Temperature | -20°~ 70° C |
| Relative Humidity | 0~95% (non-condensing) | |
| Storage Temperature | -40°~ 150° C | |
