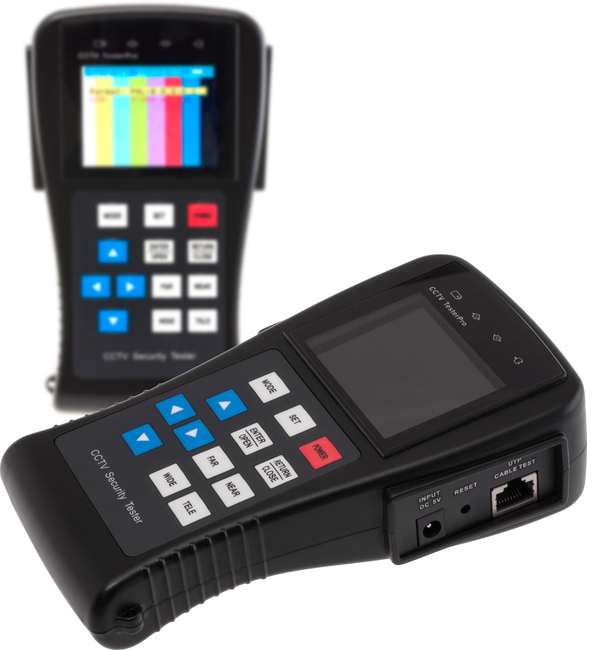

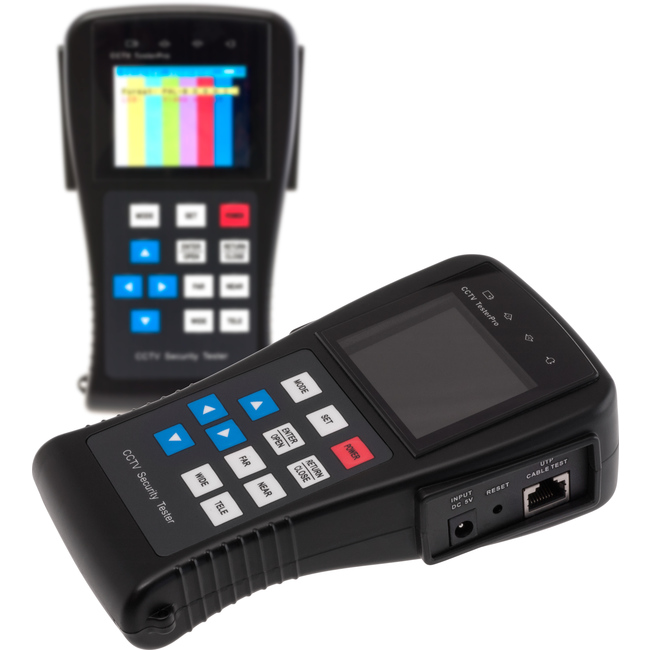

Features

With UTP cable tester, colour-bar signal generator, CCTV camera video input and more, the M281PTZ is a versatile device for CCTV installers.

With the ability to power, view and control CCTV cameras and adjust their settings via the in-built PTZ controller, you can test each device as it’s installed without anything else being connected! The UTP cable tester and video signal generator means you can find faults in cables before the cameras are installed, speeding up installation.

  • 2.8" TFT-LCD, 960H×240V resolution
  • Built-in PAL/​NTSC Colour Bar Signal Generator—transmits/​receives colour signals
  • Automatically identifies NTSC & PAL signals
  • Support RS232 and RS485 interface, baud rate adjustable
  • PTZ (RS485) Protocol analysis and identification including address scanning
    • Support more than ten kinds of PTZ controller protocols
  • PTZ Control: Control the status of P/​T, zoom camera in/​out, adjust the aperture, focus and set parameters, save and recall presets
  • Also tests LAN (UTP) cable—measures the connection status and pin sequence
  • Lithium Ion Polymer Batteries (3.7V DC 2000mAh) —high capacity and reliable charging

Specifications

Display area 2.8" TFT LCD active matrix
Resolutions 960H×240V
Input signal level 1.0 Vp-p 75Ω
Back light type LED
Brightness 300cd/​m2
Baud Rate
  • 150 bps
  • 300 bps
  • 600 bps
  • 1200 bps
  • 2400 bps
  • 4800 bps
  • 9600 bps
  • 19200 bps
PTZ Protocol
  • Pelco-D
  • Pelco-P
  • Samsung
  • Panasonic
  • LiLin
  • custom
PTZ Data Test Capture and Analyze the PTZ data sent from controlling device
Signal format PAL/​NTSC
Power requirements 5V DC / 2A
Operating temperature -30°C ~ +70°C
Work Humidity 30% ~ 90%

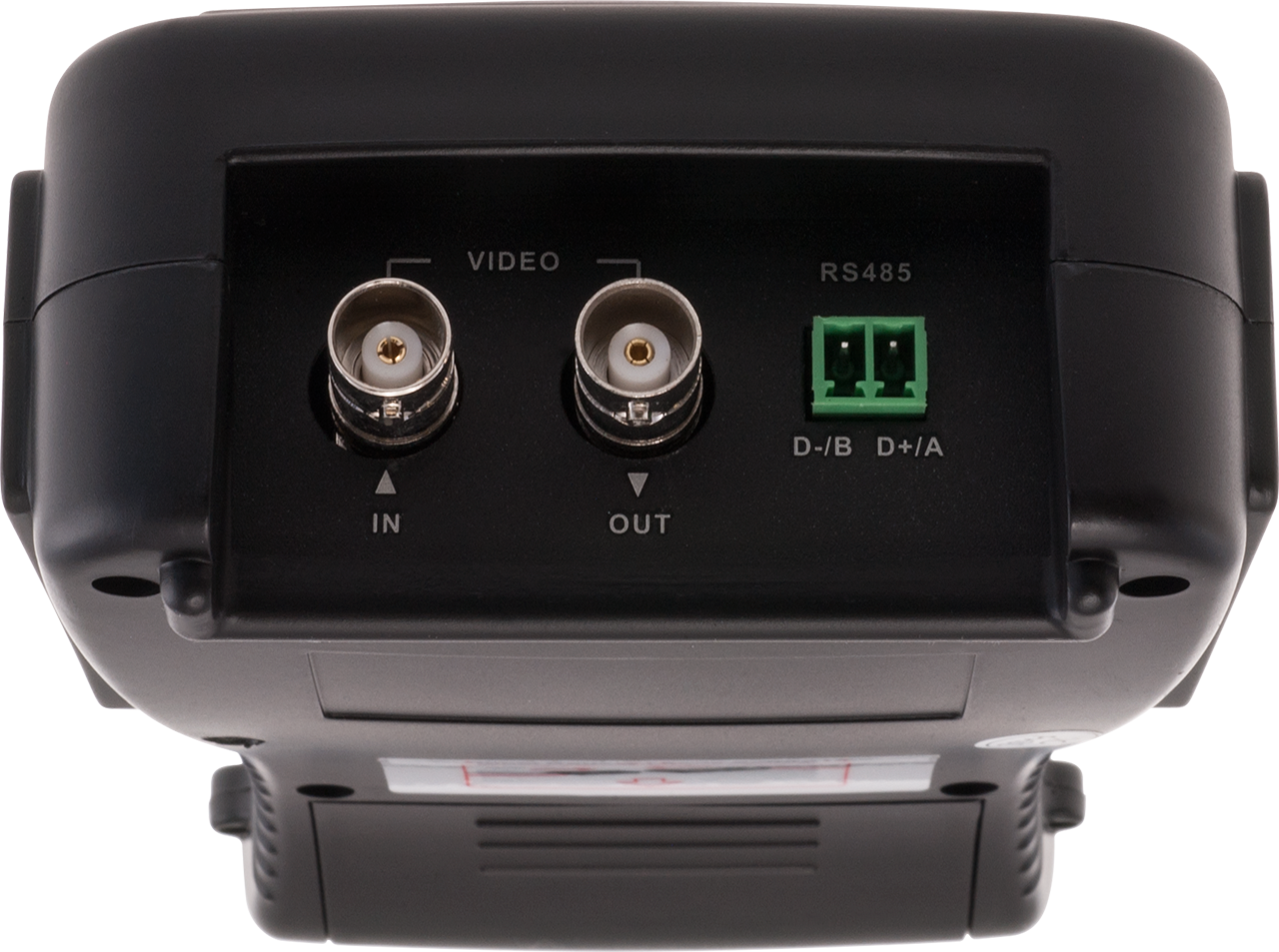

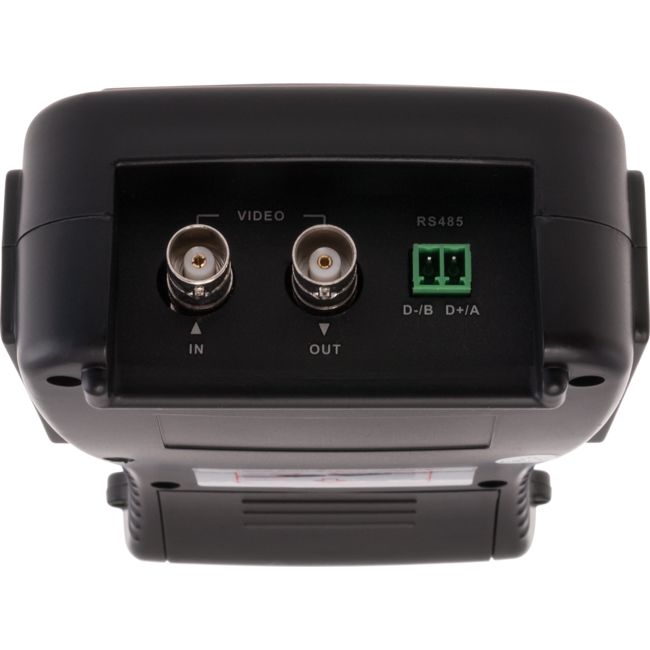

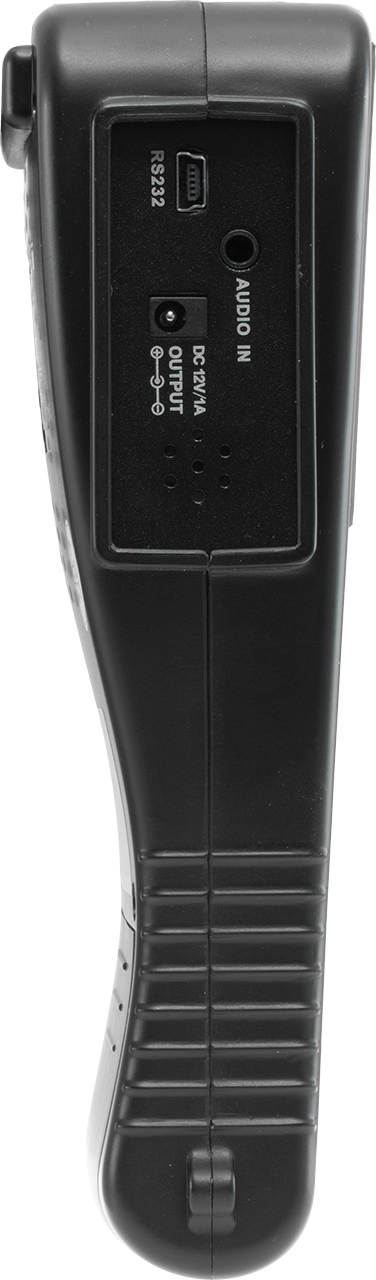

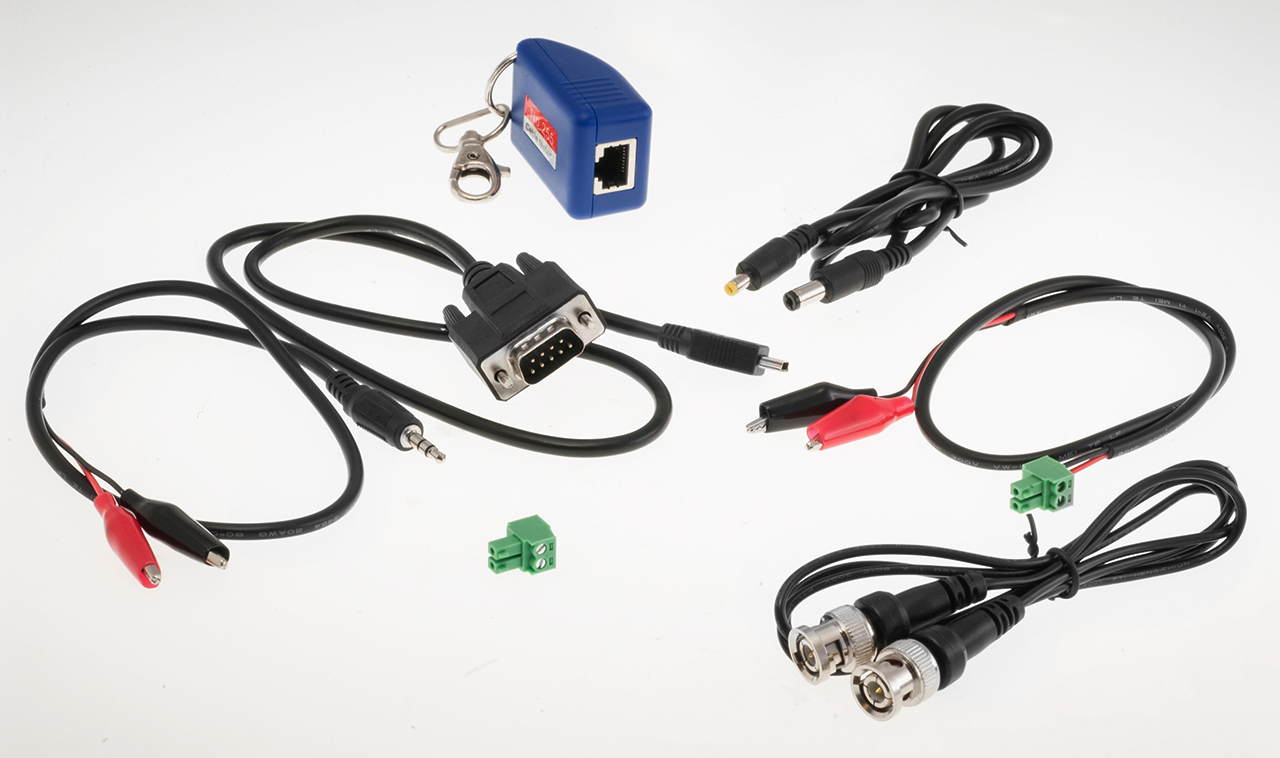

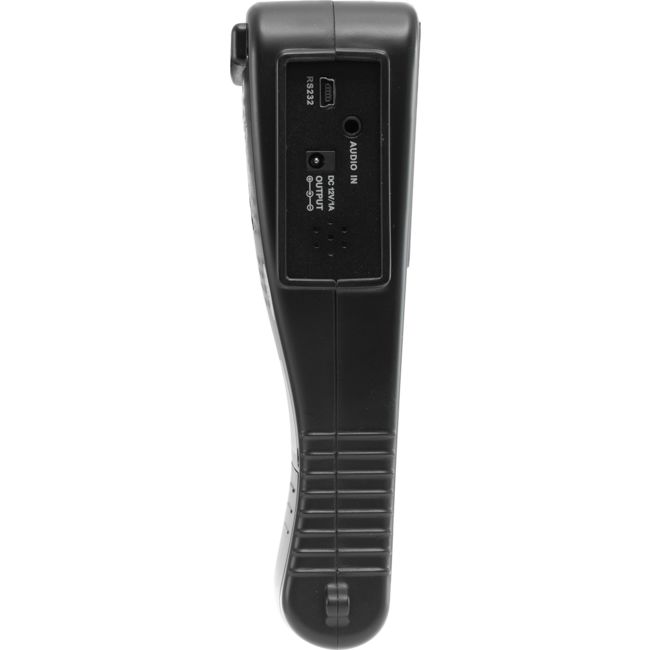

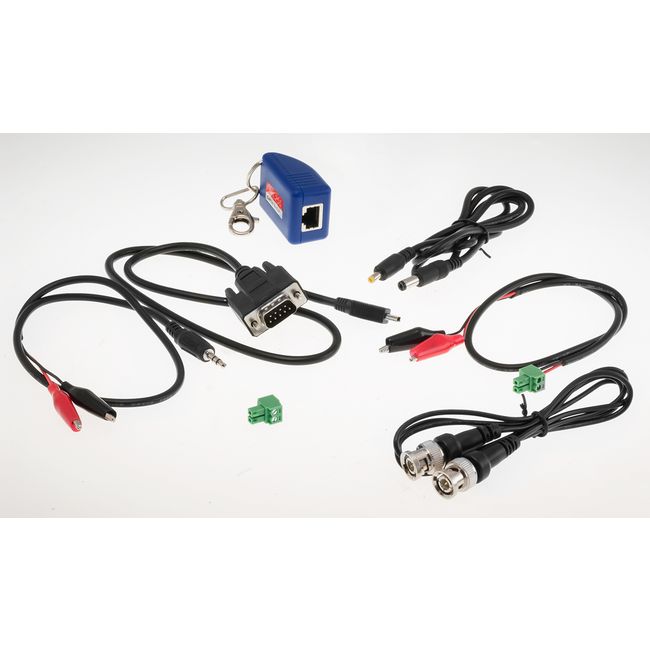

Connection port 1x BNC input
1x BNC output
1x RJ45 Jack
1x Jack for RS232
Dimentions 170 x 99 x 48mm
Packing size 260 x 195 x 90 mm
Gross weight: 1.05 kg
