Features

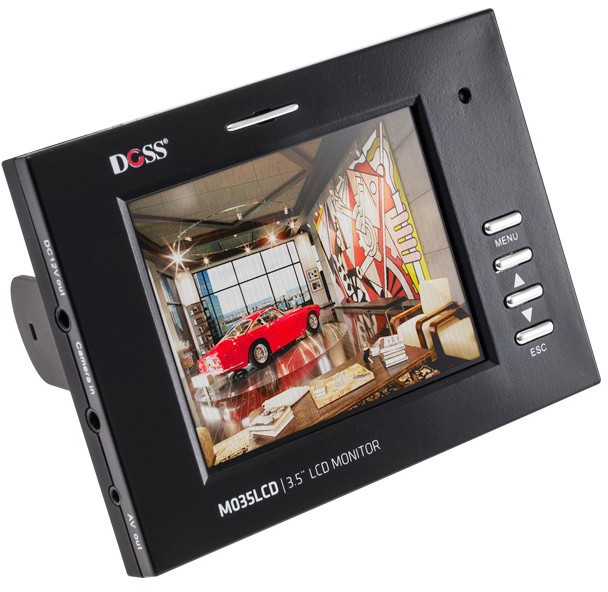

A convenient and lightweight LCD monitor ideal for security installers for CCTV testing and monitoring.

  • 3.5" TFT LCD monitor
  • OSD menu
  • Video System input: PAL/​NTSC
  • AV In & Out
  • DC 12V Output; test camera without separate power adapter
  • LED light indicator
  • Smart Portability – Multiple carry and mount options
    • Use it on your desk or attach it to your waist with the versatile kick-stand
    • Wear it on your wrist with the included wrist strap
    • Mount it to a wall with a bracket (not included); standard camera mount screw-thread

Images

Gallery


Easily connect to security cameras using the includedAV cable

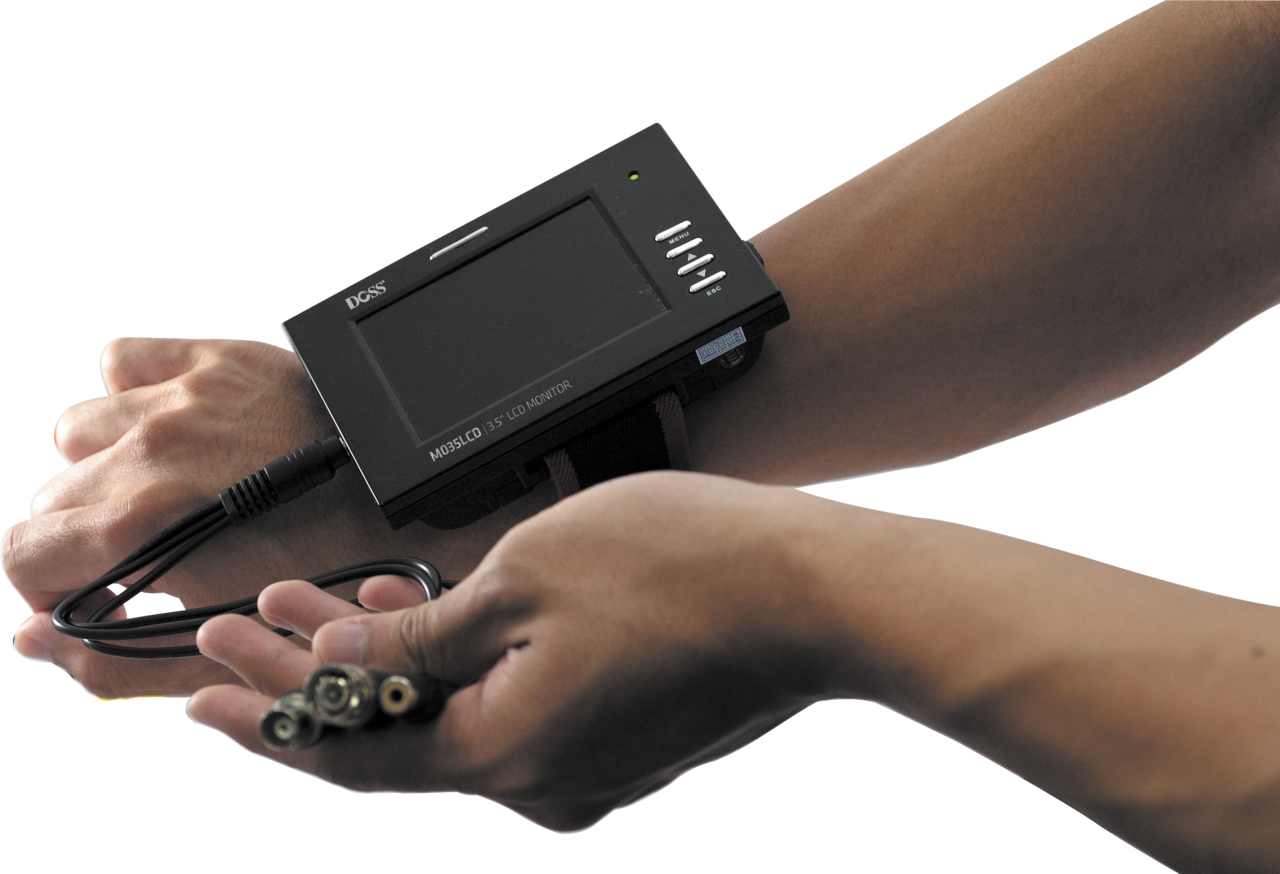

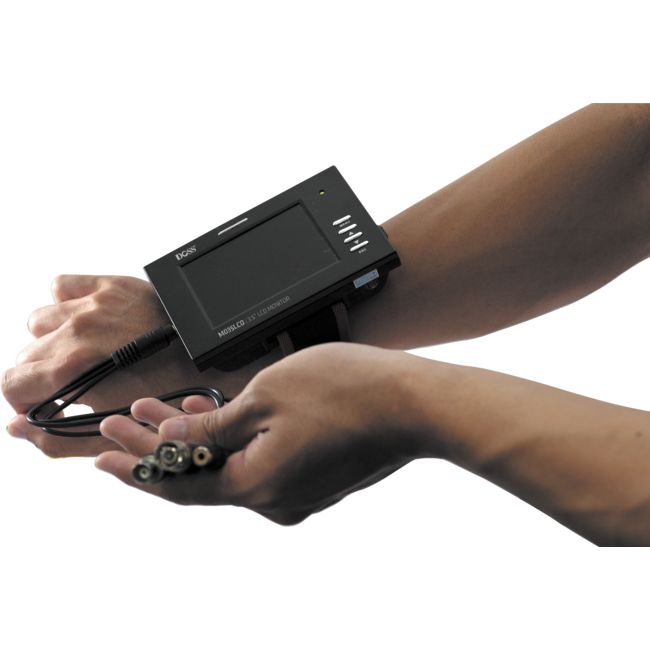

You can strap the M035LCD on your wrist for easy camera testing and aligning

Bracket screw point built-in for fixed installations (bracket not included)

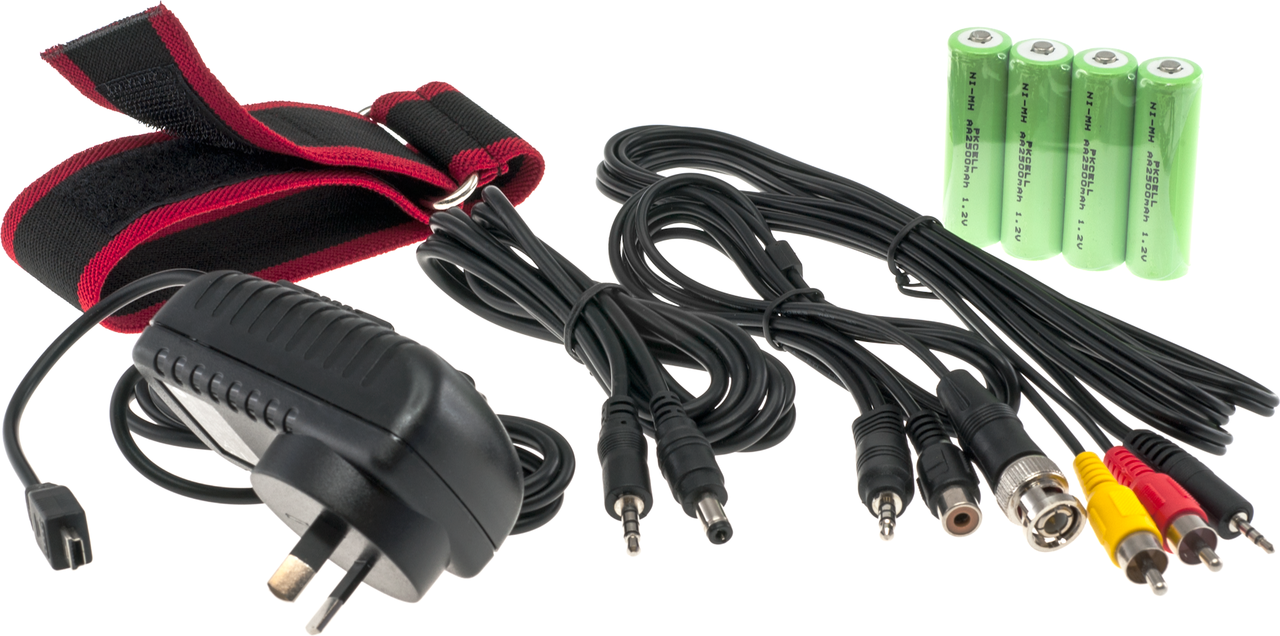

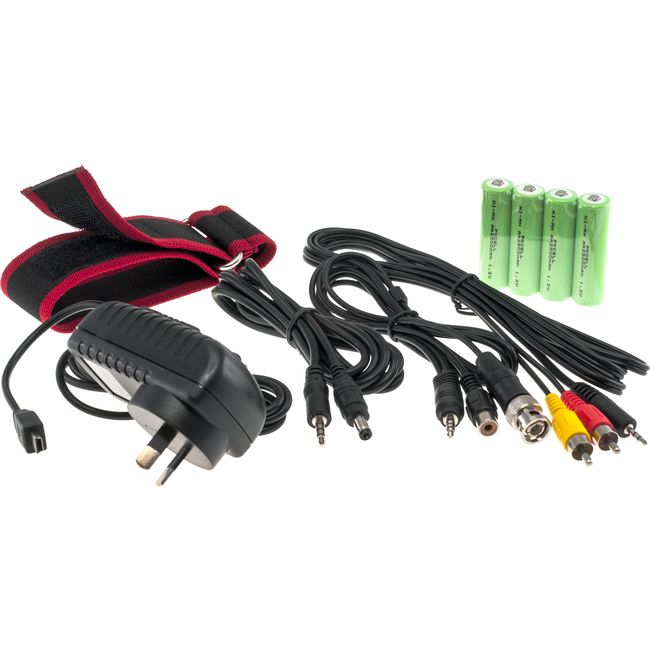

Comes with a variety of accessories

Rear kick-stand for table-top use

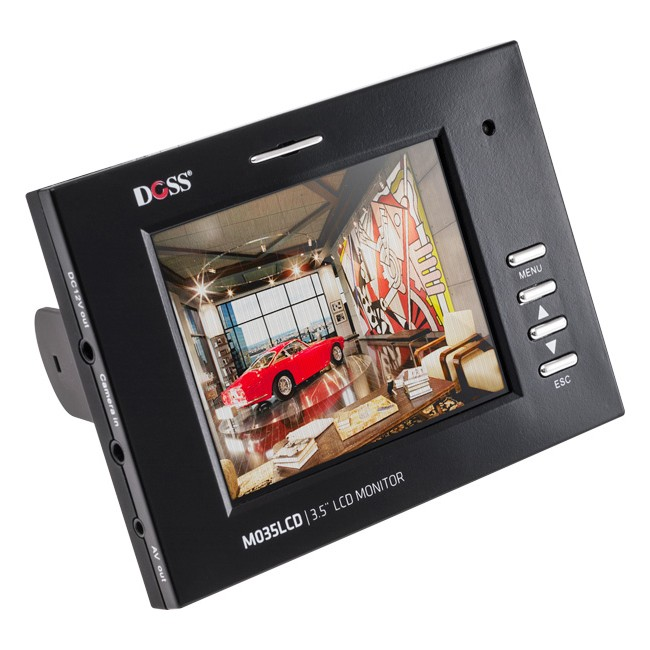

High resolution 480x360px display

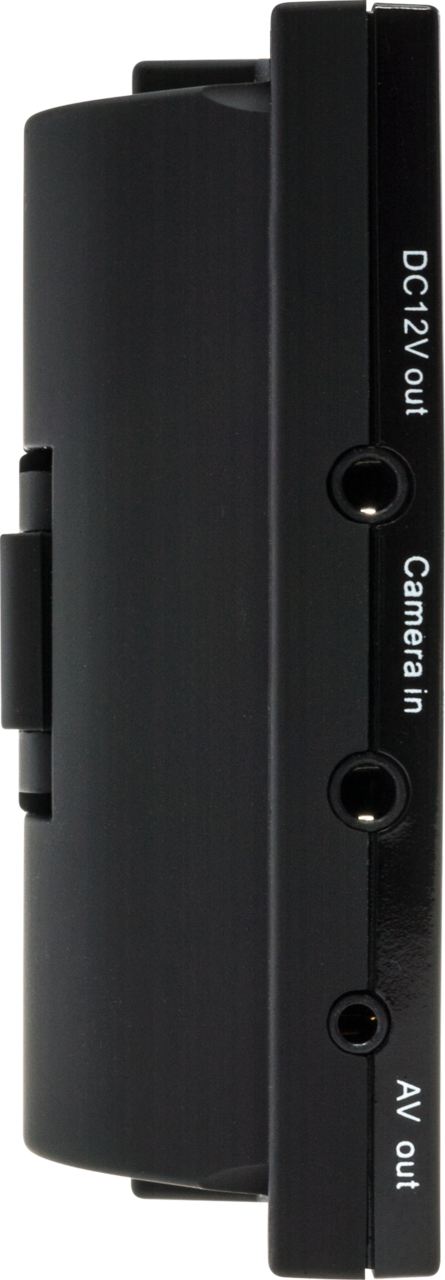

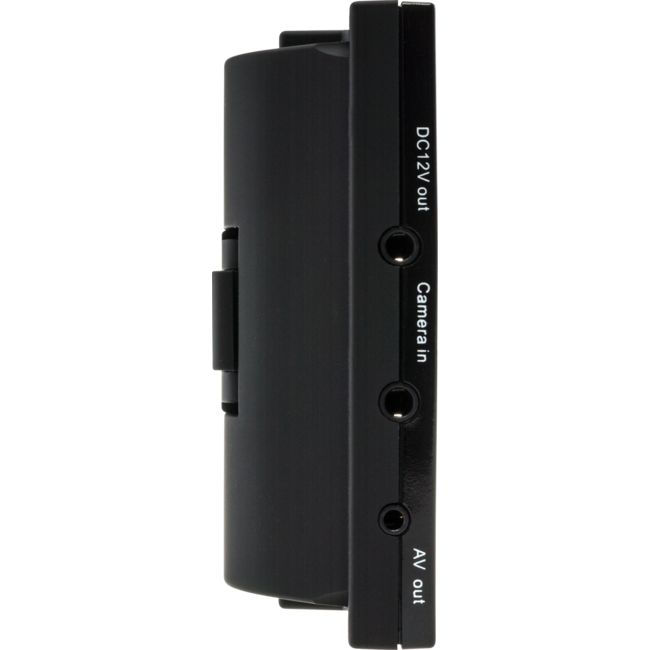

AV-out / Power out

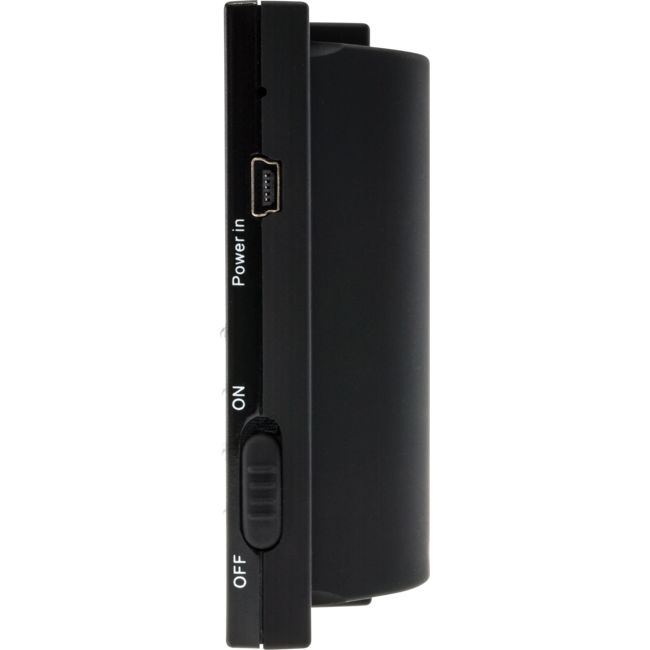

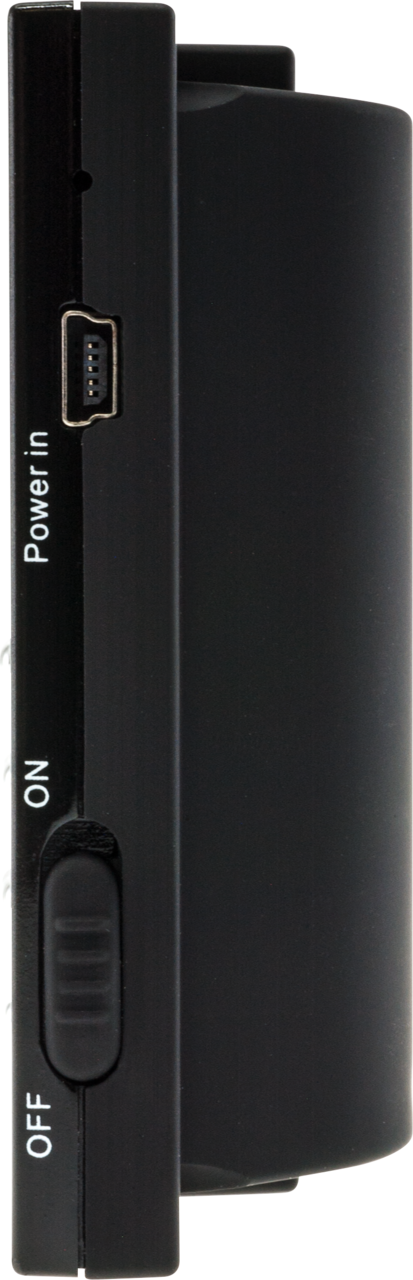

On-Off Switch and Charging port

Package Contents

  • 2x RCA (1x Video + Mono Audio) to 2.5mm AV lead
  • CCTV 1x BNC Male (Video) + 1x RCA Plug (Audio) to 3.5mm lead
  • Instruction manual
  • Power supply: 12V 1500mA DC Mini-USB power supply
  • 4x 1.2V / 2500mAH NiMH rechargeable AA batteries
  • Wrist strap

Specifications

  • Screen size: 3.5-inch
  • Resolution: 480 x 360 pixels
  • Power in: DC 12V
  • Power out: DC 12V
  • Power consumption: 1.5W
  • Ambient temperature: 0-50°C
  • Storage temperature: -30 ~ 80°C
  • Dimensions: 118 (W) x 83 (H) x 27mm (D) mm
  • Weight: Approximately 120g

Connections

  • Mini-USB power input
  • 3.5mm Camera AV input
  • 2.5mm AV output
  • 12VDC Output

FAQs

Why is the screen on my unit black when I power it up?
The M035LCD needs a camera input to activate the screen and associated menus.
