Expecting AHD but only getting Composite?

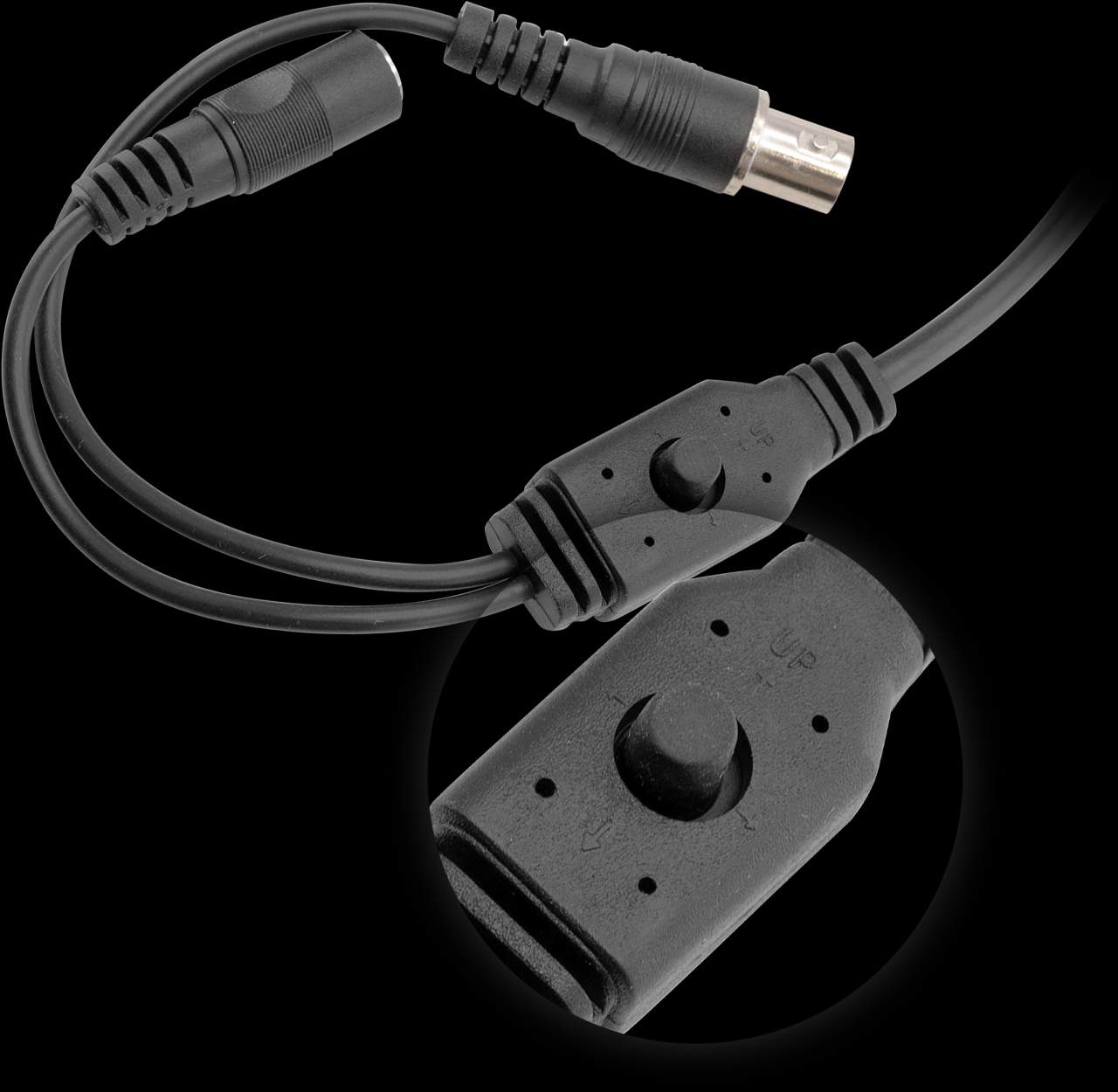

Our AHD cameras come out of the box configured to output Composite (CVBS) to allow installers with test monitors to quickly align the camera. Once positioned correctly, you can set the camera to AHD output using the setting shortcuts below:
- For CVBS output, hold the OSD key left for 3 seconds
- For AHD output, hold the OSD key right for 3 seconds
- To toggle between PAL & NTSC, hold the OSD key down for 3 seconds

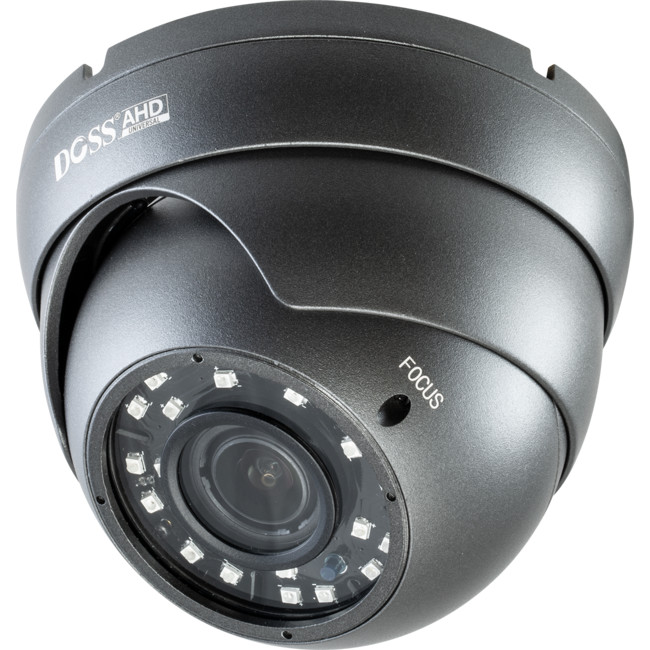

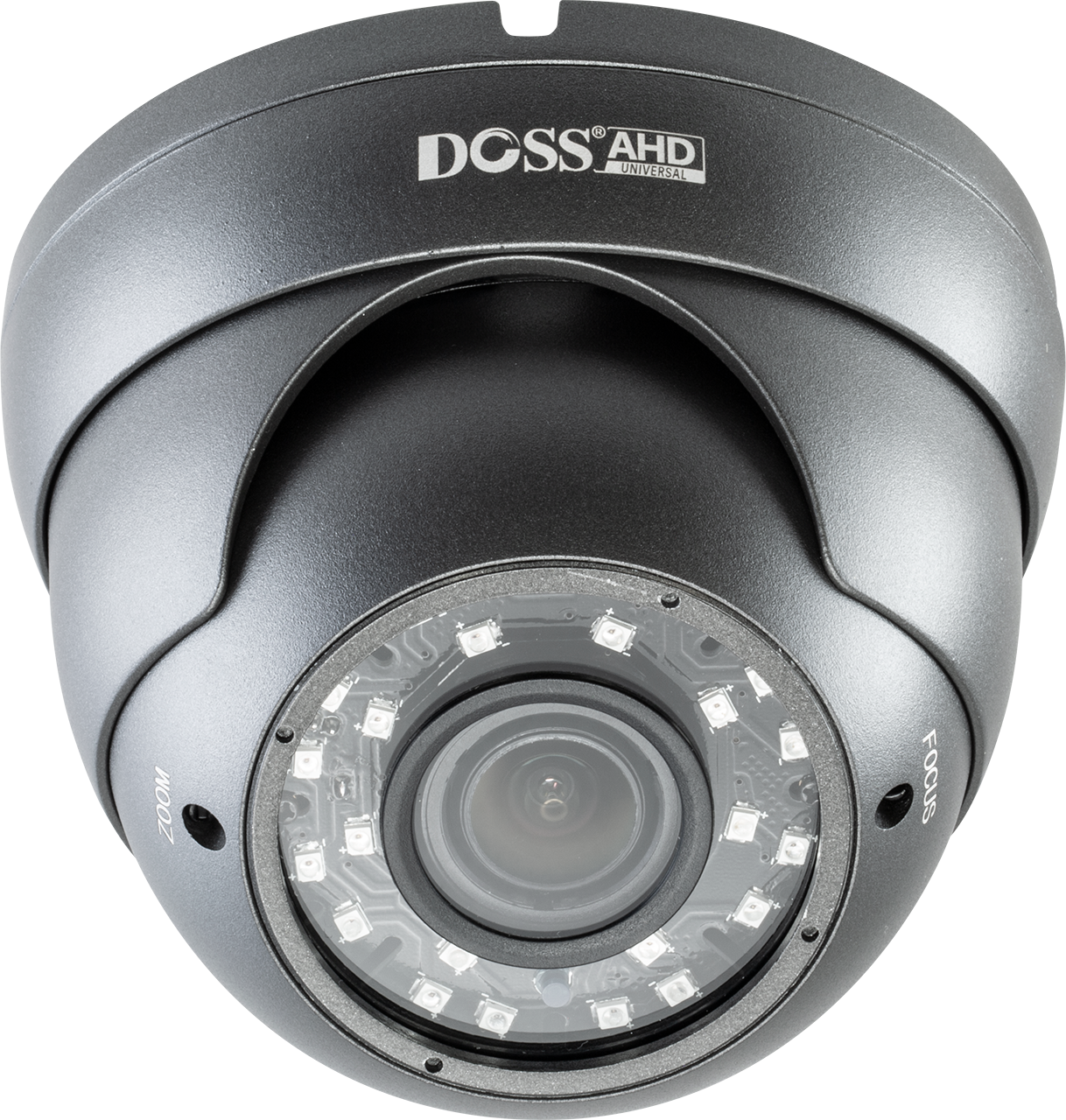

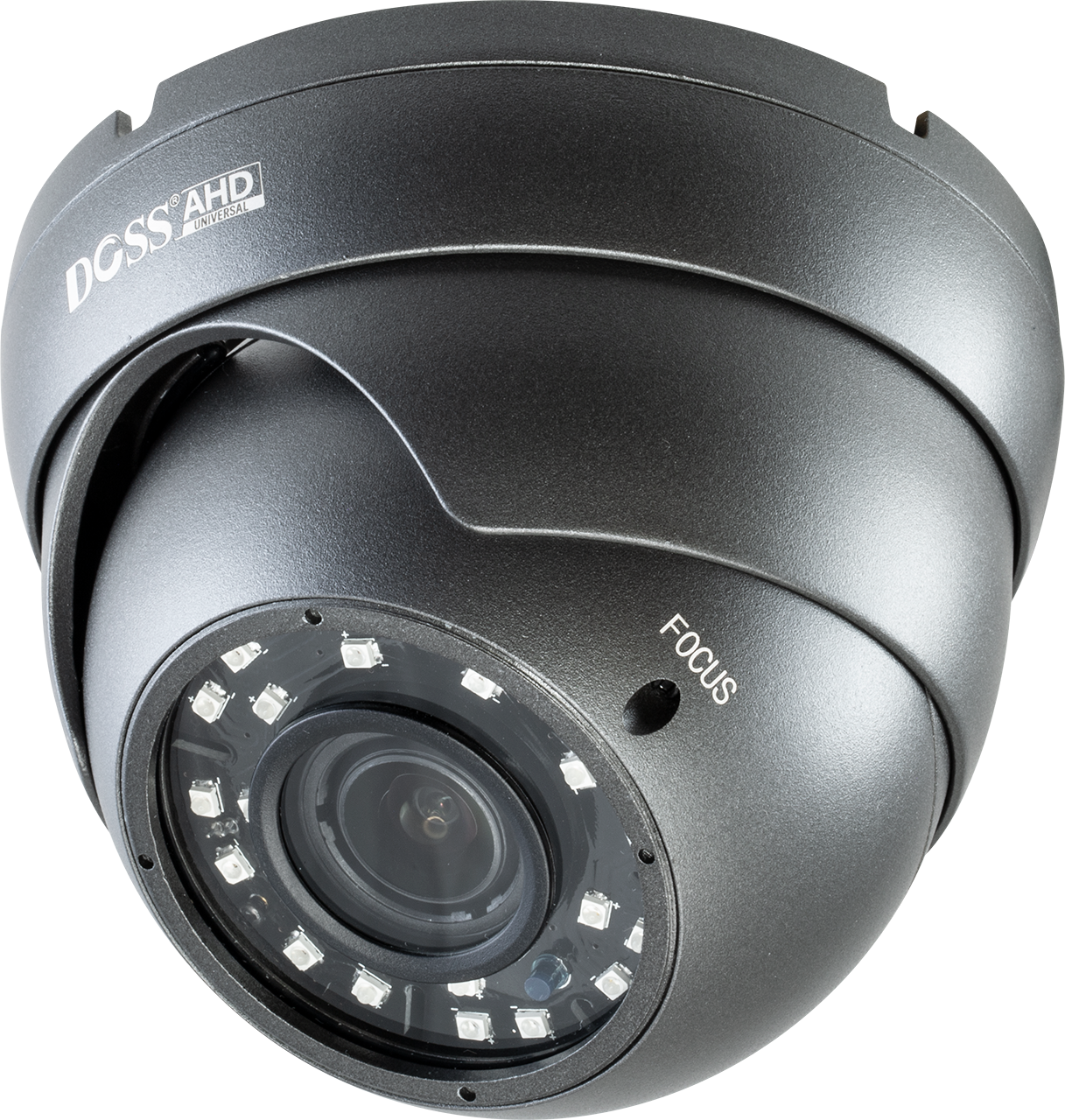

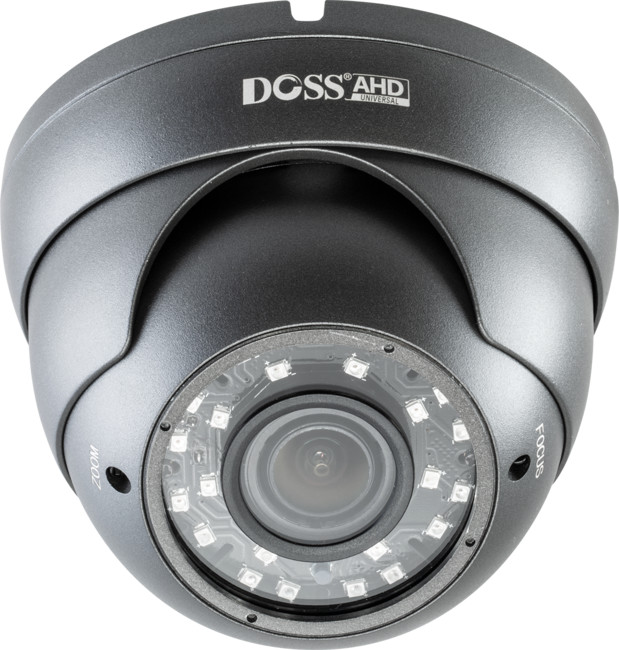

- AHD high definition camera at 1080P resolution
- Low illumination 1/2.8" SONY 2.43M CMOS sensor
- 2.8-12mm lens
- 20-30m IR distance
- 36 x Ø5 leds
- HD AHD 1080P, 800TVL analog dual-output
- AHD coaxial transmission distance up to 500m
- AHD / analog signal
- D-WDR, 2D / 3D NR, defog, CRR
- Motion detecton, Privacy zones, BLC and HLC
- OSD Menu
- Black colour
Specifications
|
CAMERA |
||
|
Sensor |
1/2.8" SONY 2.43M pixels CMOS |
|
|
Effective pixels |
1920*1080 |
|
|
HD AHD output |
1080P |
|
|
Resolution |
800TVL (CVBS input) |
|
|
Min. Illumination |
0 Lux (IR ON) colour: 0.1Lux/F1.2; B/W: 0.01Lux/F1.2 |
|
|
Sync System |
Internal |
|
|
Scan System |
Progressive scan |
|
|
Lens |
2.8-12mm M12 lens |
|
|
Electronic Shutter |
Auto/ Manual (X30~1/50000) / FLK |
|
|
S/N Rate |
≥50db (AGC OFF) |
|
|
Video output |
1.0Vp-p composite video output, 75O |
|
| IP rating | IP65 | |
|
output model |
PAL / NTSC adjustable |
|
|
OSD menu |
||
|
White balance |
ATW / AWC-SET / INDOOR / OUTDOOR / MANUAL / AWB |
|
|
NR |
2DNR / 3DNR, OFF |
|
|
Image adjustable |
lightness, contrast, sharpness, AGC |
|
|
DWDR |
AUTO / ON/ OFF |
|
|
BLC |
BLC/ HLC/ OFF |
|
|
AGC |
ON/ OFF/ AUTO (1-15) |
|
|
TDN |
B/W, COLOUR, AUTO, EXT |
|
|
Privacy mask |
OFF/ ON (4 zone) |
|
|
Motion detection |
OFF/ ON (4 zone) |
|
|
Mirror |
horizontal/ vertical/ HV mirror |
|
|
Sens-up |
OFF/ON (X30, X25, X20, X15, X10, X8, X6, X4, X2) |
|
|
Lens shading compensation |
OFF / ON |
|
|
DPC |
Auto/ Manual |
|
|
Defog |
OFF/ Auto (Effective under B / W model ) |
|
|
OSD menu |
Chinese, English etc 12 languages |
|
|
Dual-output |
HD AHD/ analog CVBS optional |
|
|
General |
||
|
Transmission distance |
75 – 3 / 300m, 75 – 5 / 500m |
|
|
IR distance |
20-30m (36 x Ø5IR led) | |
|
power supply |
DC12V ± 10% |
|
|
Power (max) |
280mA ± 10mA (IR ON) |
|
|
Operating Temperature |
−20°C ~ 55°C/ 0%-90% |
|
|
Dimensions (mm) |
100 (H) * 120 (D) mm |
|
|
Weight / PC (g) |
800g |
|
