Discontinued

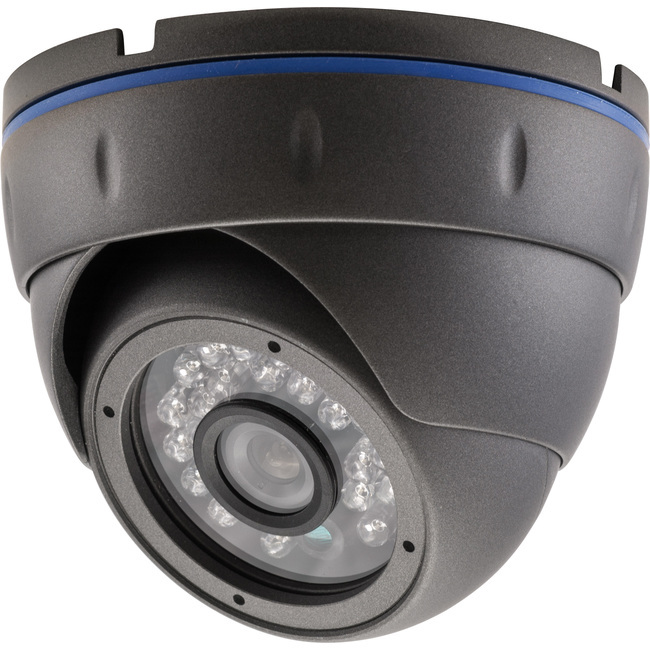

Features

  • Sony EXview HAD CCD II
  • Sony EFFIO-E DSP Chipset
  • 700TVL Resolution
  • Fixed 3.6mm lens
  • 10-15m IR Range
  • Colour: Grey


Download the latest DOSS CCTV Cameras Sellsheet

Specifications

.rpg_table { border-collapse: collapse; width: auto; } .rpg_table th, .rpg_table td { padding: 5px; min-width: 150px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

Sensor

 1/​3" Sony EXview HAD CCD II
DSP Sony EFFIO-E
Resolution 700TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 3.6mm
Lens Type Fixed
Lens Origin China
Approx View Angle (H) 90°
IP Rating IP65
IR LEDs 24x Ø5mm
IR Range 10m – 15m
Adjustable IR Brightness no
WDR (Wide Dynamic Range) none
Sens-up no
OSD no
Inline Controller no
Noise Reduction no
Backlight Compensation no
Image Colour Adjustment?
(ie brightness/​contrast / tone/​saturation/​sharpness) 		no
Mirror function
(Horiz / Vert / Rotate) 		no
Privacy Zones no
Motion Detection Zones no
RS-485 no
Power
(with IR on where applicable) 		12VDC / 400mA
Dimensions 93Øx76H

About Sony Chipsets

.sony-camera { margin:0; border-collapse:collapse; padding:0; width:450px; border: 0 none !important; } .sony-camera td { padding:5px; margin:0; width:10%; border: 0 none !important; } .sony-camera .pad-left, .sony-camera .pad-right { width:0; } .sony-camera td[align=center]{ text-align:center } .sony-camera td[valign=middle]{ vertical-align:middle }

Sony’s EXview HAD CCD II offers improved characteristics over the Super HAD CCD II and EXview HAD CCD Sensors, andother CCD Sensors.

  • Less space between On-chip microlenses and lightsensors
  • Improved and longer life colour filters
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • High sensitivity to near IR range
    • Lower noise
  • Reduced image Smearing
Microlens
Structure
Low light
& IR sensitivity
Smear
Other CCD Sony EXview HAD II CCD

New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-E DSP Chipset supports the following features*:

  • Entry-level Effio technology
  • ATR (Adaptive Tone Reproduction)
  • 2D noise reduction
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption
*Features mentioned are supported by Effio chipset but may not be implemented/​enabled – please check the camera specifications.
