Features

CCTV Calculator Calculate everything!
  • 1/​3" Sony EXview HAD CCD II Sensor
  • Sony EFFIO-S DSP Chipset
  • 700TVL Resolution
  • Adjustable lens: 4mm – 9mm (approx 98° – 38°)

Specifications

.rpg_table { border-collapse: collapse; width: auto; } .rpg_table th, .rpg_table td { padding: 5px; min-width: 150px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }

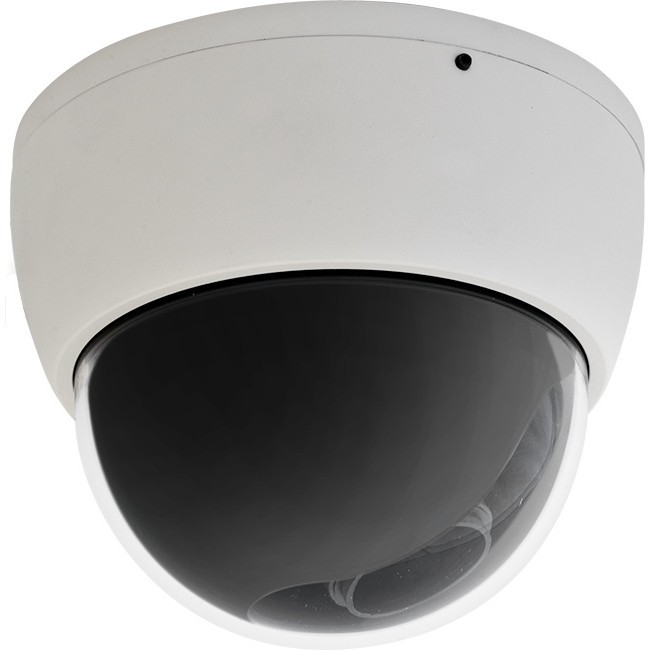

Model STEALTHDOME

Sensor

 1/​3" Sony EXview HAD CCD II
DSP Sony EFFIO-S
Resolution 700TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 3.6mm
Lens Type Manual
Lens Origin Korea
Approx View Angle (H) 98° – 38°
IP Rating IP65
IR LEDs none
IR Range n/​a
Adjustable IR Brightness n/​a
WDR (Wide Dynamic Range) ATR-EX
Sens-up yes
OSD yes
Inline Controller no
Noise Reduction 3D-NR
Backlight Compensation HLC/​BLC/​OFF
Image Colour Adjustment?
(ie brightness/​contrast / tone/​saturation/​sharpness) 		yes
Mirror function
(Horiz / Vert / Rotate) 		H / V / R
Privacy Zones 15
Motion Detection Zones 4
RS-485 no
Power
(with IR on where applicable) 		12VDC / 200mA
Dimensions 108Øx89H

Downloads

About Sony Chipsets

.sony-camera { margin:0; border-collapse:collapse; padding:0; width:450px; border: 0 none !important; } .sony-camera td { padding:5px; margin:0; width:10%; border: 0 none !important; } .sony-camera .pad-left, .sony-camera .pad-right { width:0; } .sony-camera td[align=center]{ text-align:center } .sony-camera td[valign=middle]{ vertical-align:middle }

Sony’s EXview HAD CCD II offers improved characteristics over the Super HAD CCD II and EXview HAD CCD Sensors, andother CCD Sensors.

  • Less space between On-chip microlenses and lightsensors
  • Improved and longer life colour filters
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • High sensitivity to near IR range
    • Lower noise
  • Reduced image Smearing
Microlens
Structure
Low light
& IR sensitivity
Smear
Other CCD Sony EXview HAD II CCD

New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-S DSP Chipset supports the following features*:

  • Multifunction model
  • ATR-EX (Adaptive Tone Reproduction)
  • 2D & 3D noise reduction
  • Digital image stabilizer
  • Slow shutter (Sens-up)
  • Digital Zoom / E-zoom
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption

ATR-EX
(Actual camera image)

Sens-up
(Actual camera image)

Off On
*Features mentioned are supported by Effio chipset but may not be implemented/​enabled – please check the camera specifications.
