Discontinued

CCTV Calculator Calculate everything!

Features

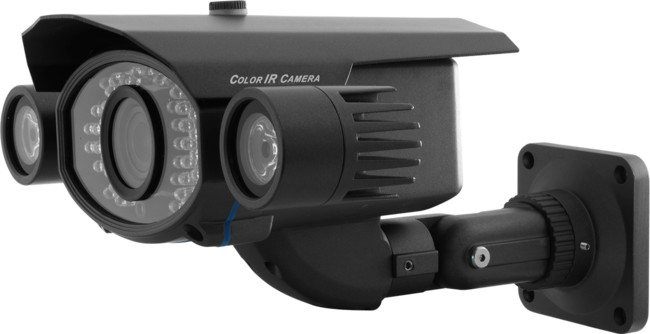

  • 1/​3" Sony EXview HAD II CCD
  • Sony EFFIO-E DSP Chipset
  • 700 TVL Resolution
  • 5mm – 50mm Varifocal Korean lens
  • 80m – 100m IR Range
    • 2x Hi-Lux Side IR spots


var c = ‘DOSS Security Camera Training 2013‘; function OpenWindowWithContent( con ) { var w = window.open( ”,’DossSecurityCameraTraining2013’, ‘width=900, height=520,location=0, menubar=0, toolbar=0’ ); var d = w.document.open(); d.write( con ); d.close(); }

Click here to watch the DOSS Security Camera Training 2013 series

Download the latest DOSS CCTV Cameras Sellsheet

Images

Control buttons and dials on the back for LED strength, zoom, focus and OSD settings.

Specifications

.rpg_table { border-collapse: collapse; width: auto; } .rpg_table th, .rpg_table td { padding: 5px; min-width: 150px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th[align=center], .rpg_table td[align=center] { text-align:center; }
Model IN100

Sensor

 1/​3" Sony EXview HAD II CCD
DSP Sony EFFIO-E
Resolution 700 TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 5mm – 50mm
Lens Type Manual
Lens Origin Korea
Approx View Angle (H) 51.8° – 5.6°
IP Rating IP66
IR LEDs 66x Ø5mm + 2x Hi-Lux IR spots
IR Range 80m – 100m
Adjustable IR Brightness no
WDR (Wide Dynamic Range) ATR
Sens-up no
OSD yes
Inline Controller no
Noise Reduction 2D-NR
Backlight Compensation HLC/​BLC/​OFF
Image Colour Adjustment?
(ie brightness/​contrast / tone/​saturation/​sharpness) 		yes
Mirror function
(Horiz / Vert / Rotate) 		H
Privacy Zones 4
Motion Detection Zones 4
RS-485 no
Power
(with IR on where applicable) 		12VDC / 1000mA
Dimensions (excluding mount) 162Lx214Wx83H

.sony-camera { margin:0; border-collapse:collapse; padding:0; width:450px; } .sony-camera td { padding:5px; margin:0; width:10%; } .sony-camera .pad-left, .sony-camera .pad-right { width:0; }

Sony’s EXview HAD CCD II offers improved characteristics over the Super HAD CCD II and EXview HAD CCDSensors, and other CCD Sensors.

  • Less space between On-chip microlenses and lightsensors
  • Improved and longer life colour filters
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • High sensitivity to near IR range
    • Lower noise
  • Reduced image Smearing
Microlens
Structure
Low light
& IR sensitivity
Smear
Other CCD Sony EXview HAD II CCD

New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-E DSP Chipset supports the following features*:

  • Entry-level Effio technology
  • ATR (Adaptive Tone Reproduction)
  • 2D noise reduction
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption

ATR

( Actual camera image )

Off On
*Features mentioned are supported by Effio chipset but may not be implemented/​enabled – please check the camera specifications.
