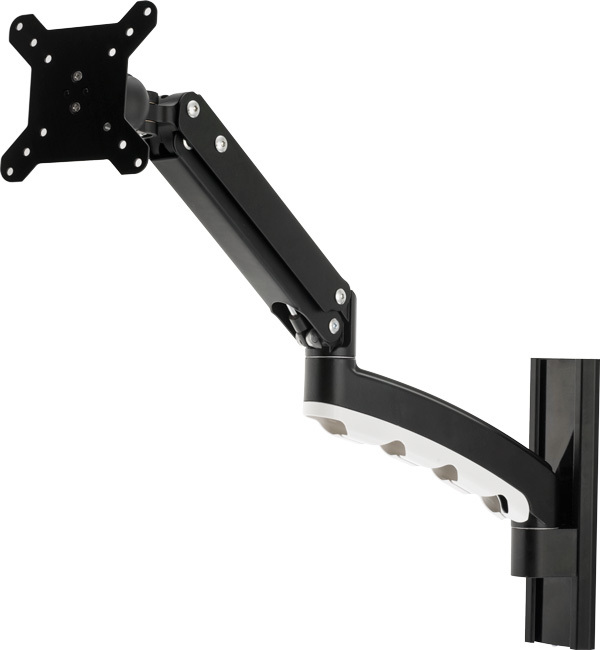

LCD23B
43136318
Doss Bracket Range PDF
A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.
Ideal for Installers
This Doss bracket has been designed to be set up and ready to go right off the bat, allowing you to get the job done quicker and more efficiently.
Packaged in a mainly pre-assembled state, all you need to do is to mount the bracket to the wall and attach the TV!There’s no need to follow complicated instructions and wastetime having to try to fit the pieces together!
| LCD23B | |
|---|---|
| Class: | Small / 3 Pivot |
| Mount: | Wall / Single Stud |
| Max Weight: |
20 kg |
| Recommended TV Size: | up to 27" |
| Compliance: | Vesa |
| Vesa sizes (mm): |
50 x 50
75 x 75 100 x 100 |
| Universal mount (max): | – |
| Tilt: | 90° |
| Turn: | 90° |
| Distance from Wall: | up to ~510 mm |
| Back Plate Dimension: | 75 x 240 mm |
| Vertical height adjustment: | 200mm (approximate) |
| Material: | Steel, aluminium alloy, plastic |
| Bracket Weight: | ? |
| Colour: |
Black |
| Warranty: | 12 months |
Dimensions
Click to enlarge image
