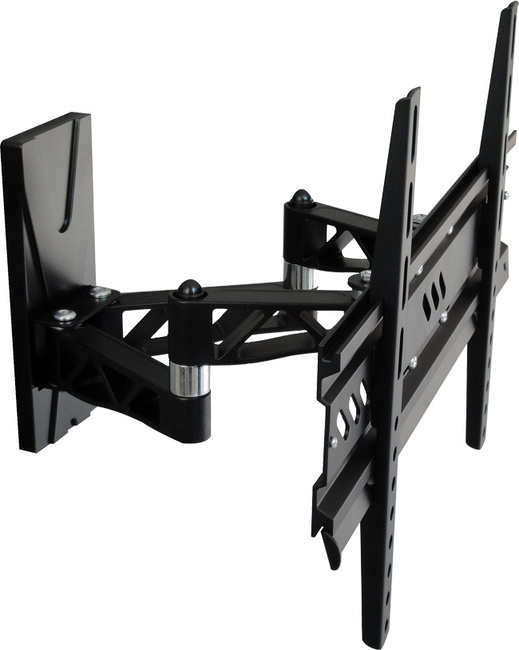

Installer Series

Ideal for Installers

This Doss bracket has been designed to be set up and ready to go right off the bat, allowing you to get the job done quicker and more efficiently.
Packaged in a mainly pre-assembled state, all you need to do is to mount the bracket to the wall and attach the TV!There’s no need to follow complicated instructions and wastetime having to try to fit the pieces together!

Class: Medium / 3 Pivot
Mount: Wall / Single Stud
Max Weight:

30 kg

Compliance: Vesa, Universal
Vesa sizes (mm): 50 x 50
Universal mount (max): 400 x 300 mm
Tilt: 15°
Turn: 90°
Distance from Wall: 60~350 mm
Back Plate Dimension:
Material: Iron, aluminium alloy, plastic
Bracket Weight: 3.8 kg
Colour:

Black

Warranty: 12 months

Line Drawing

Line drawing
Click on image to view larger version
