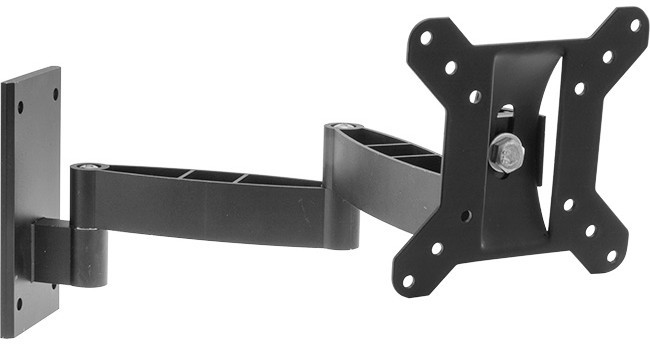

LCD02AB
43130157
Doss Bracket Range PDF
A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
View the entire range of Doss Brackets
Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.
| Class: | Small / 3 Pivot |
| Mount: | Wall / Single Stud |
| Max Weight: |
20 kg |
| Recommended TV Size: | 15 ~ 24" |
| Compliance: | Vesa |
| Vesa sizes (mm): |
50 x 50
75 x 75 100 x 100 |
| Tilt: | 20° |
| Turn: | 180° |
| Distance from Wall: | 330 mm (max) |
| Back Plate Dimension: | – |
| Material: | Aluminium alloy |
| Bracket Weight: | 0.69 kg |
| Colour: |
Black |
| Warranty: | 12 months |
Line Drawing
Click on image to view larger version
