Discontinued

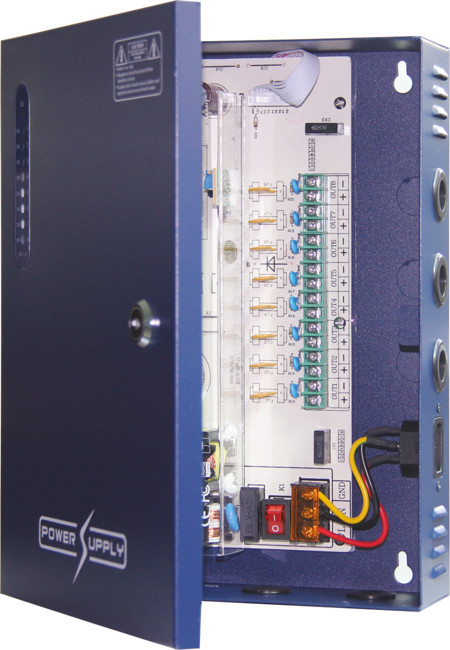

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This product doesn’t come with a K9 IEC lead.
K9-2MT (27752115) is availabe for sale.

Features

  • Universal AC input range: 96 – 264VAC, 47~63Hz
  • Each channel is protected seperately. Tube fuse and PTC for each channel are selectable.
  • Short circuit, over current and overload protection
  • Models with power larger than 60W are configured with PFC function.
  • Meet the European energy efficiency standard
  • 5kA surge protection
  • High quality cooling fin to reduce power consumption
  • External LED indicators for each channel output
  • Extra AC jack on the side of box (AC power lead is not included)
  • Buit-in EMI wave filter with 100% full load burn-in test
  • Using 105°C long life electrolytic capacitors
  • Wall type blue baking finished shell

Specificaitons

  • Input: 93 – 264V AC
  • Output: DC 12V 10A
  • Operating temperature: 30 ~ 70°C

Doss Wall Mounting Box Power supply range

Model Ways Output Voltage Output Amp. With UPS
33774960 PW0412B05
4
12V DC
5A
No
33774965 PW0812B10
8
12V DC
10A
No
33774990 PW1612B16
16
12V DC
16A
No
33775000 PWU0412W05
4
12V DC
5A
Yes
33775005 PWU0812W10
8
12V DC
10A
Yes
33775015 PWU1612W16
16
12V DC
16A
Yes
