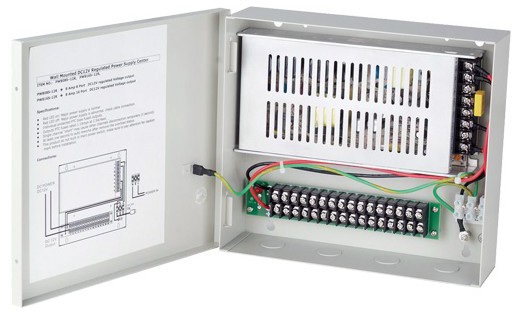

PW816S-12R PORT DC12V REGULATED POWER SUPPLY

8Amp 16 port DC12V Regulated Wall Mounting Power Supply

Specifications:

  • Red LED on: Mains power supply is normal.
  • Red LED off: Mains power supply abnormal, check incoming supply and cable connections.
  • Individual protected PTC type fused outputs.
  • Outputs PTC fused rated 1.1Amps at 2.5A/​4sec.
  • A single channel ¡§short¡¨ may cause a temporary disconnection (1 sec.) of other channels.
  • At least one second to auto rework, after removing an overload condition.
  • This product does not contain a built in main power switch, take additional care when connecting or isolating incoming mains supply. Heed all warning labels.
  • Overall Dimension: 224 x 200 x 60 mm
