Features

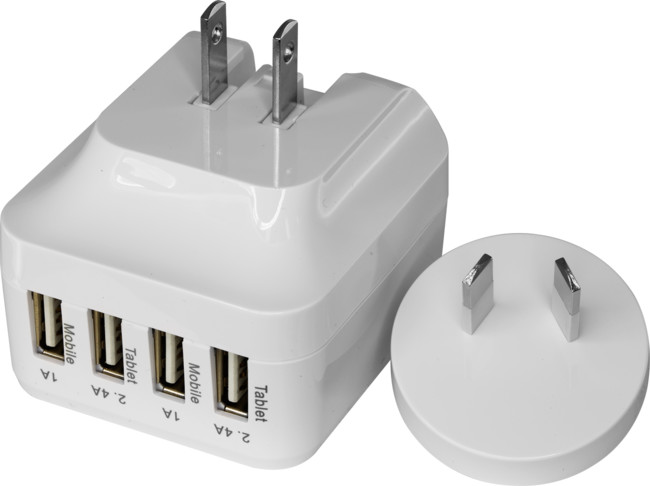

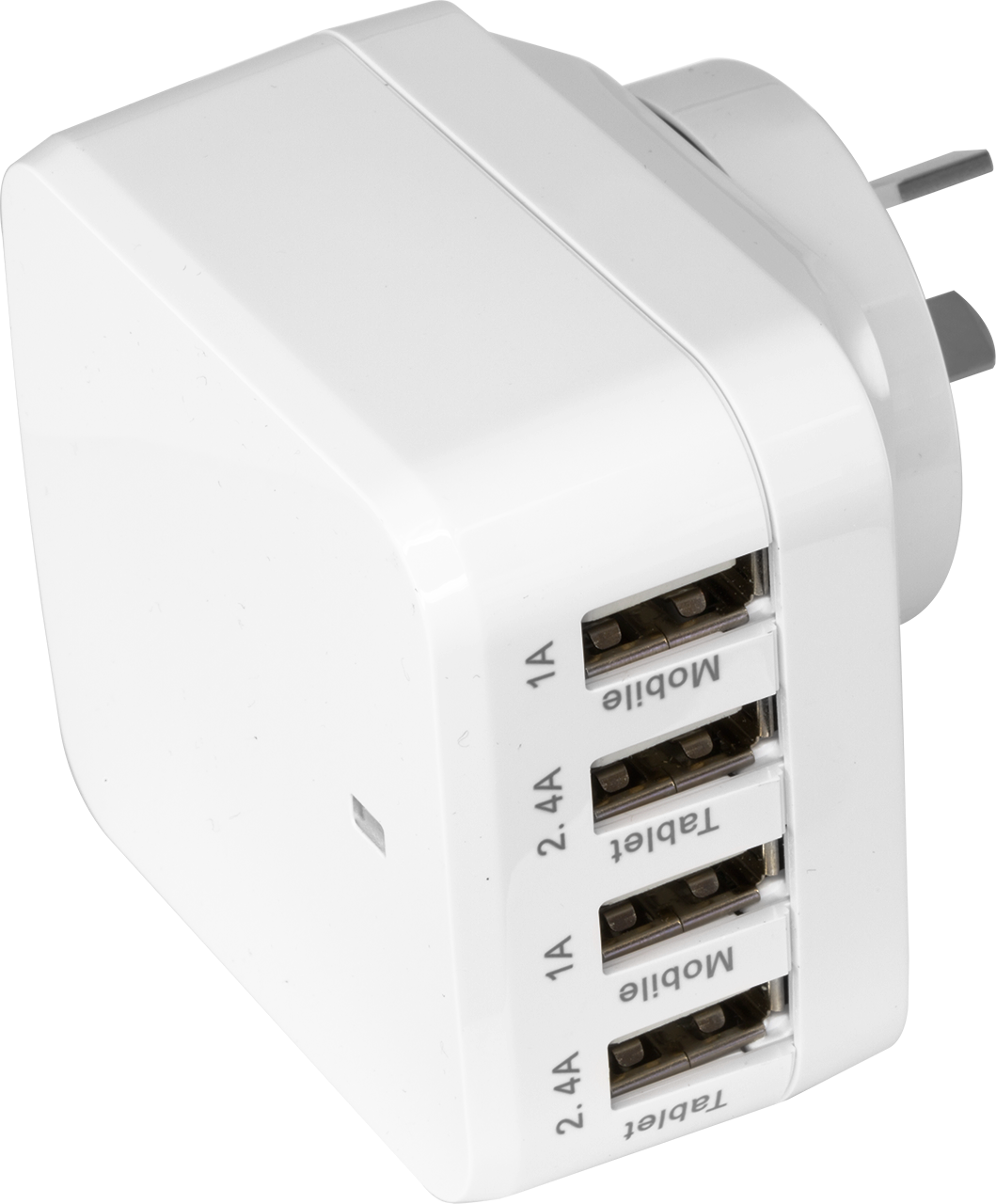

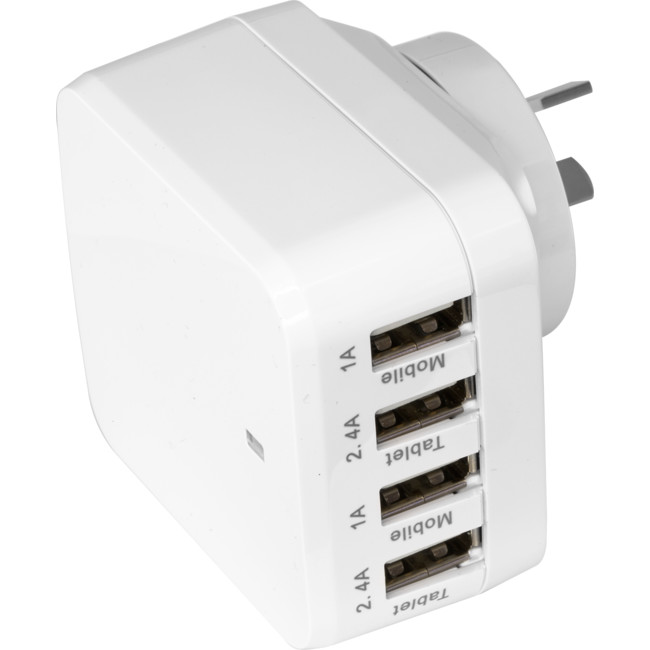

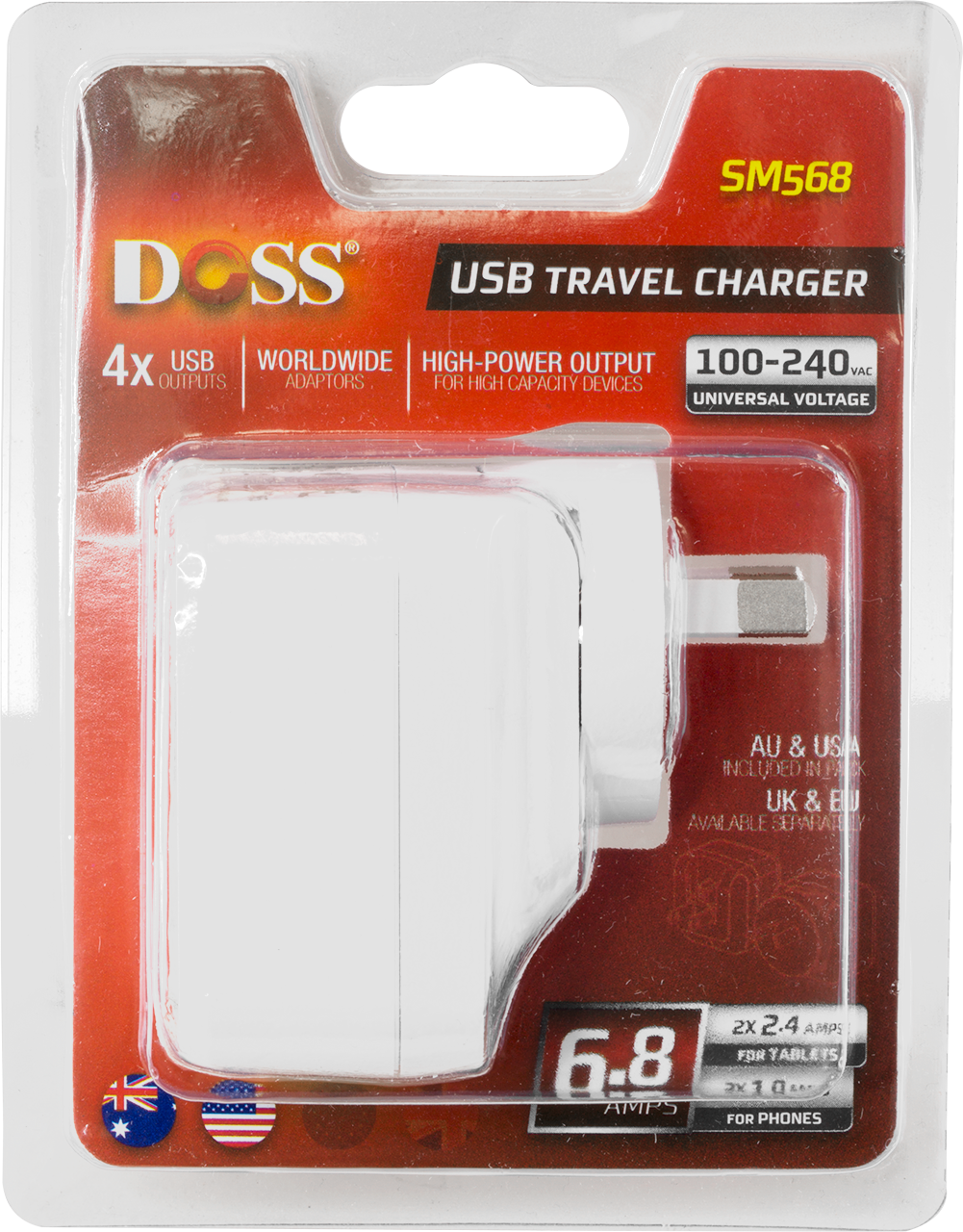

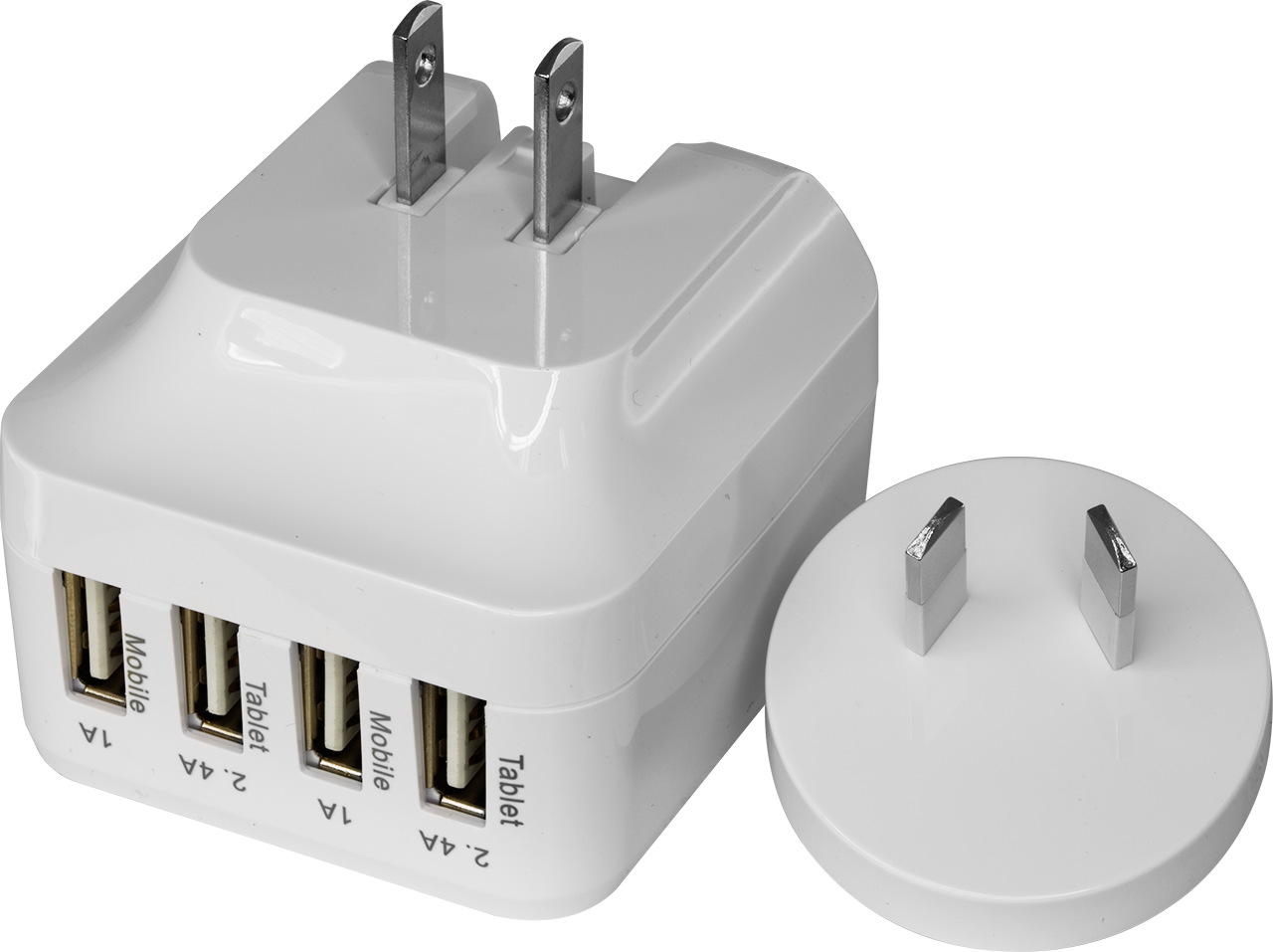

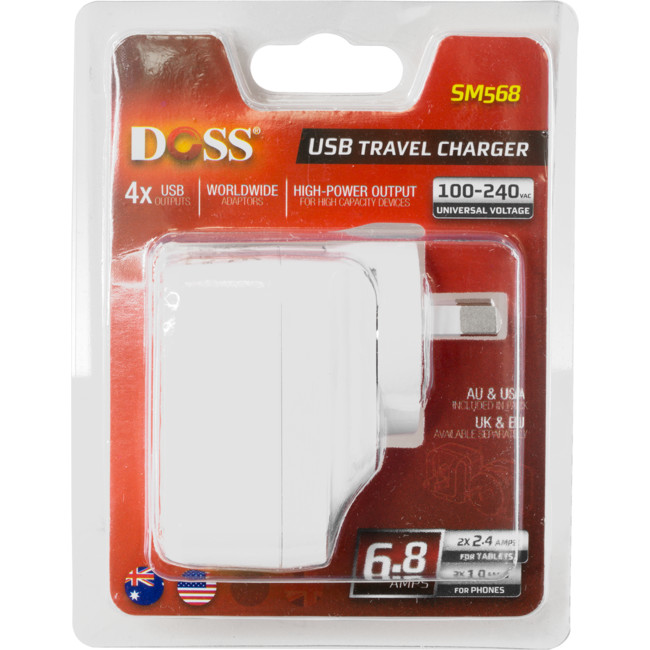

Charge everything you need in one place. The SM568 4-PortUSB Charger for Mobile Devices charges up to four of your mobile devices, including mobile & smartphones, iPod, PDAs and more, at the same time from just one wall outlet. Interchangable adaptors can suit worldwide powerpoints. It is a must thing you need to carry when travelling.

  • 4x USB Outputs
  • Universal AC Voltage input: 100~240VAC
  • Worldwide Adaptors
  • 6.8A High-Power Output for high capacity devices
  • AU and USA Adaptors included
  • UK and EU plugs available separately
  • Colour: White

Specifications

Output Voltage DC 5-6V
Output Regulation ±5% Constant Voltage Mode
Current Regulation ±5% Constant Current Mode
Current limit 6.8A max @ 5-6V, 34W max
Ripple and Noise 100mVp-p max @ 20MHz
Maximum Power 34W max @ DC 5-6V
Hold-up Time 10ms Typical At Full Load @ 115V
Protection
  • Over-current Protection
  • Short-circuit Protection
  • Over-voltage Protection
USB 4 x USB
Input Rated Input Voltage 100Vac ~ 240Vac
Input Voltage Range 90Vac ~ 264Vac
Input Current 500mA max. @ 100~240Vac Input
Rated Input Frequence 50/​60Hz
Inrush Current 20A Max. @ 100-240Vac Input
Leakage Current 0.25mA Max
Efficiency Average efficiency achieves ES Level V and Euro COCV4.0
Environmental Operation Temperature 0°C to 40°C
Storage Temperature –10°C to 70°C
MTBF >80,000 Hours At Full Load And 25°C Ambient Temperature
