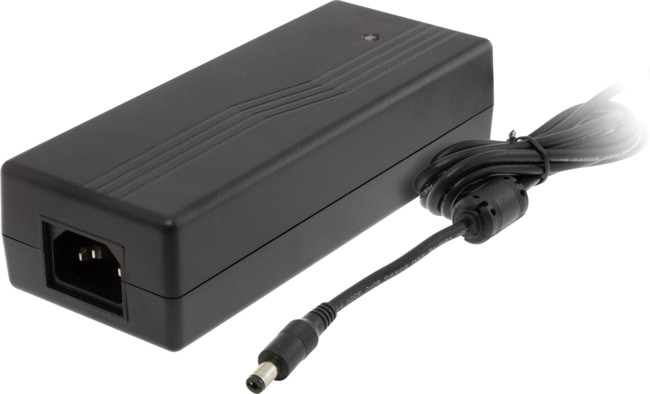

48V power supply specifically designed for power over Ethernet applications.

Features

  • 2.1mm plug
  • 1.2m lead length
  • Short circuit protection
  • Over current protection
  • Over voltage protection
  • Output 48V 2.5A
  • Max. 120W output
  • Australia approval

Specifications:

  • Input Voltage: 100 – 264VAC
  • Output voltage: 48VDC @ 2.5A
  • Input Frequency: 47Hz to 63Hz
  • Power output: 120W Max.
  • Working temperature: 0°C to 40°C
  • Working humidity: 25% to 90% relative humidity (Non-condensing)
  • Efficiency: 85% min. at full load
  • Ripple/​noise (mVpp): 2%
  • Dimension: 133x57x31mm
  • Plug diametre: 2.1mm
Note: IEC not included
