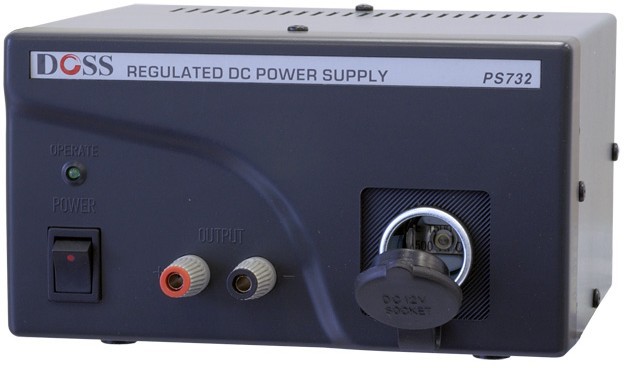

13.8V regulated DC power supply with cigarette socket. Designed to power CBs, Automotive and Marine equipment.

Features:

  • Galvanized Steel Case
  • Fixed 13.8V DC Regulated Output
  • Current Overload and Short Circuit Protection
  • High Stabilty and High Reliability
  • 4mm Banana Socket/​Screw Terminals
  • LED Power ON Indicator

Specifications

  • Output Voltage: 13.8V DC
  • Output Current: 2 Amps
  • Peak Current: 4 Amps
  • Ripple & Noise (r.m.s.): 4 mV
  • Line Regulation: 120 mV
  • Load Regulation: 250 mV
  • Dimensions (WHD): 160 x 92 x 150mm
  • Weight: 2.4 Kg
