Providing protection for:

  • Mains Filter
  • Coaxial
  • Telephone Line

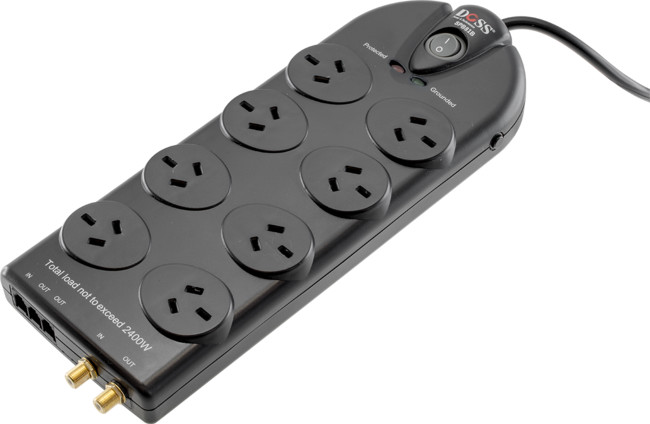

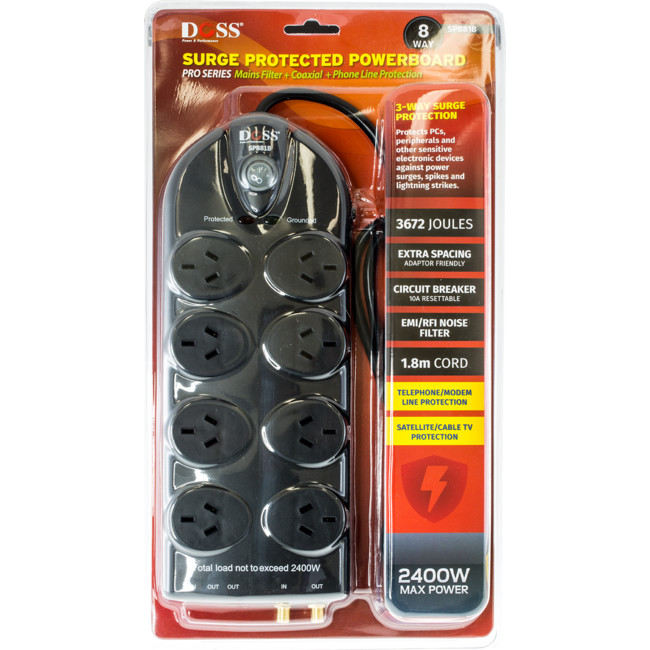

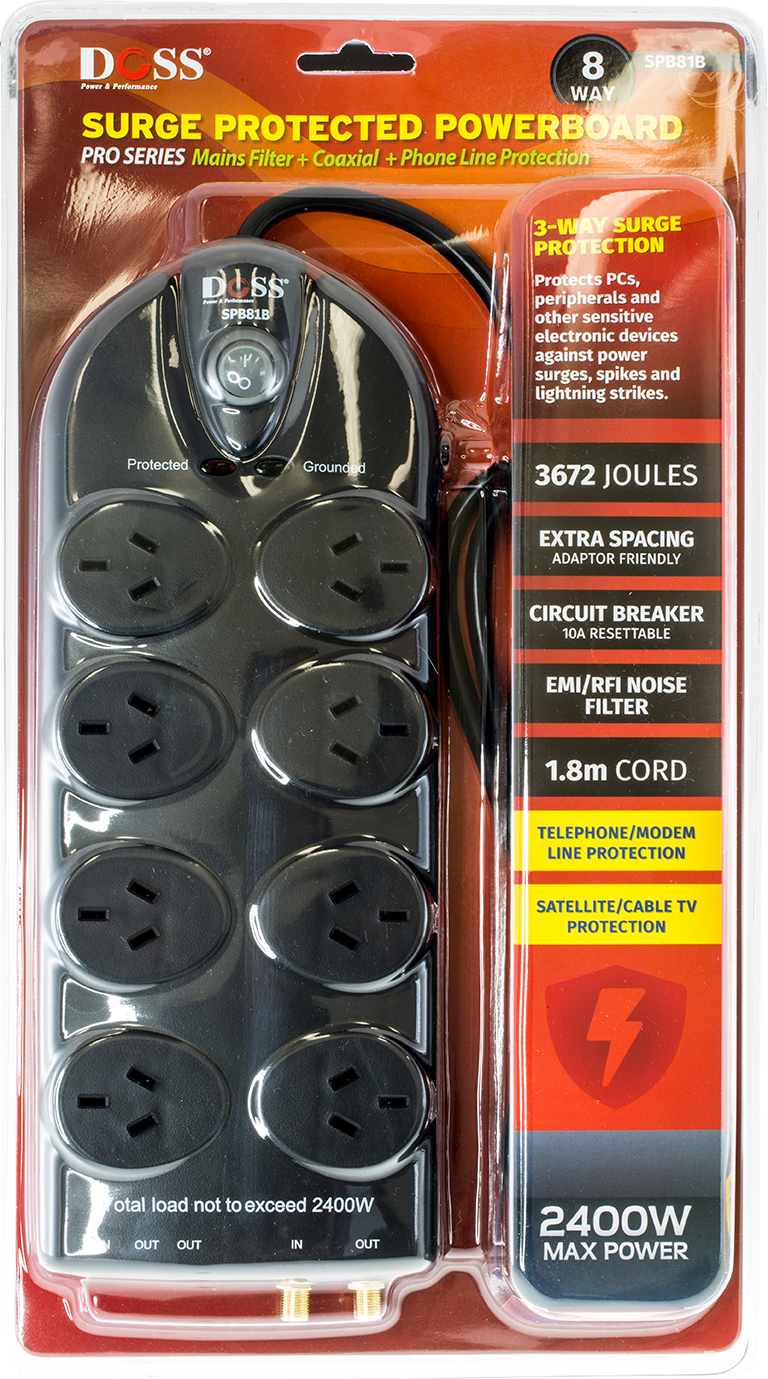

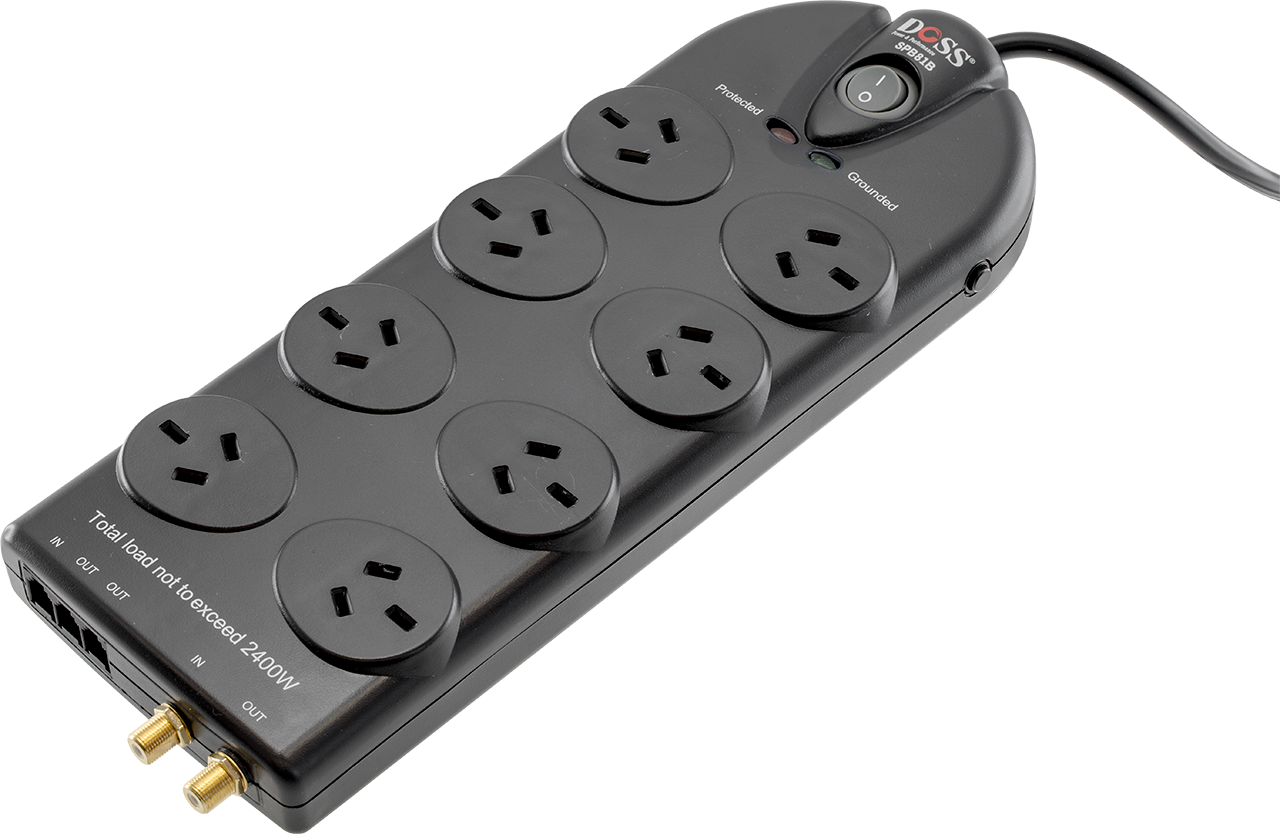

Doss 8-way Pro Series SurgeMaster provides premium surge protection for all your professional workstations, laser printers, home theatre systems, and everyday household electronics. Offers 3672 Joules, AC/​phone, fax/​modem, coaxial cable protection & insulated pins.
The Doss 8-way Pro Series SurgeMaster board is your premier solution for clean, safe power protection and the industry’s best in construction, ratings and safety standards.

  • Power rating: 10A @ 240V
  • 2 pole push button switch
  • 10 amp circuit breaker

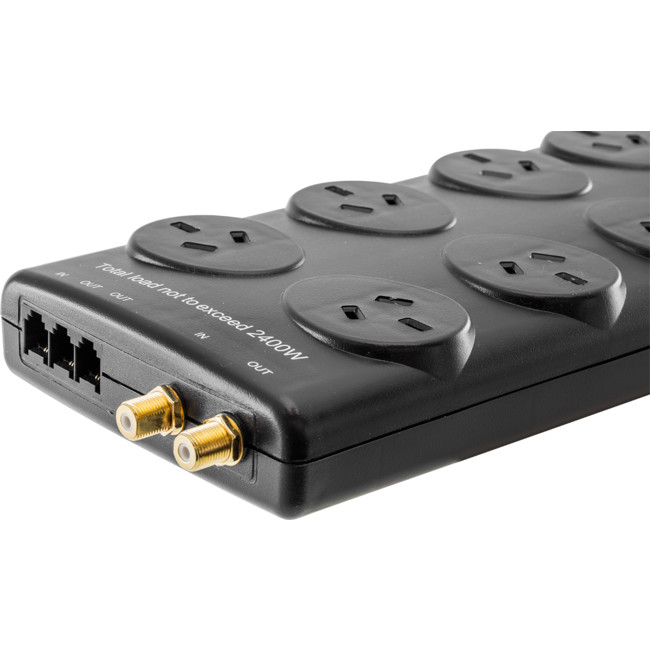

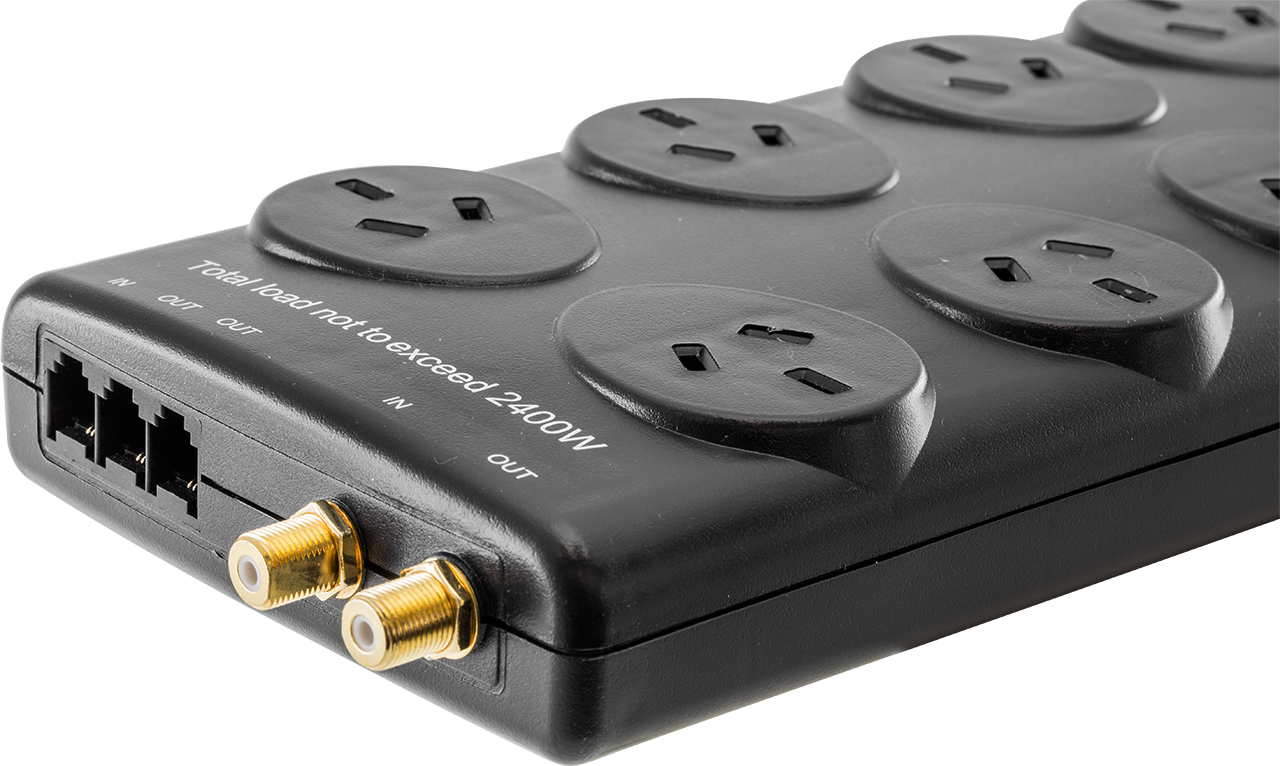

  • F-type coaxial protection
  • Telephone line protection – 1 In / 2 Out
  • 3672 joules surge protection
  • 1.8m heavy duty power cord

Specification:

Rated Voltage: 240 VAC, 50 Hz

Full Surge protection: 3672 Joules

  • Max Spike Voltage: 6KV
  • Response Time: < 1 Nanosecond

EMI/​RFI Noise Filter

  • Frequency Range:
    150 KHz ~ 100 MHz
  • Attenuation: Up to 40 dB
  • Jack Type: RJ11 (6P2C/​1-IN, 2-OUT)
  • Energy: 160 Joules

Coax/​DSS Protection

  • Surge Arrestor: Gas Tube
  • Breakdown Volts: < 75V
  • Insertion Loss: 0.1dB

Coax Type: F Connector / Aerial Type

(1-IN/​1-OUT, Nickel-Plated)

Some common questions regarding surge protect powerboards

I’ve seen a powerboard that looks the same, butis cheaper. Is there any reason?

Surge protection comes down to a couple of things, butone of the key factors is the ability to absorb energy. OurDOSS SPB81 will absorb a huge 3672 joules. Competing models may look the same, but the performance isn’t the same (example below).


How come equipment warranties are not offered by Doss?

Equipment warranties can often justify higher retail prices which is good for shops and profit margins. On the flip side, many end users, particularly those with mortgages, will already have house & contents insurance.The products connected to the power board are more than likely covered.
To find out more have a read of the PDS for your insurance policy.
Secondly, for covering a wider variety of issues, you couldconsider extended warranties from a provider that specializes in this area. This way, you can elect to cover a huge variety of issues including even data loss.
