Features

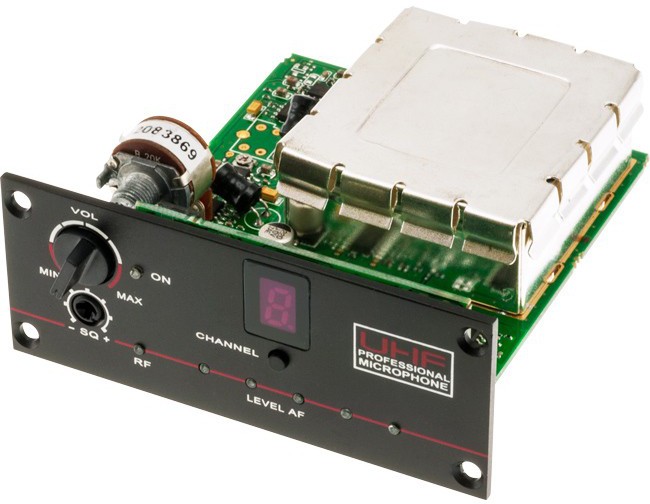

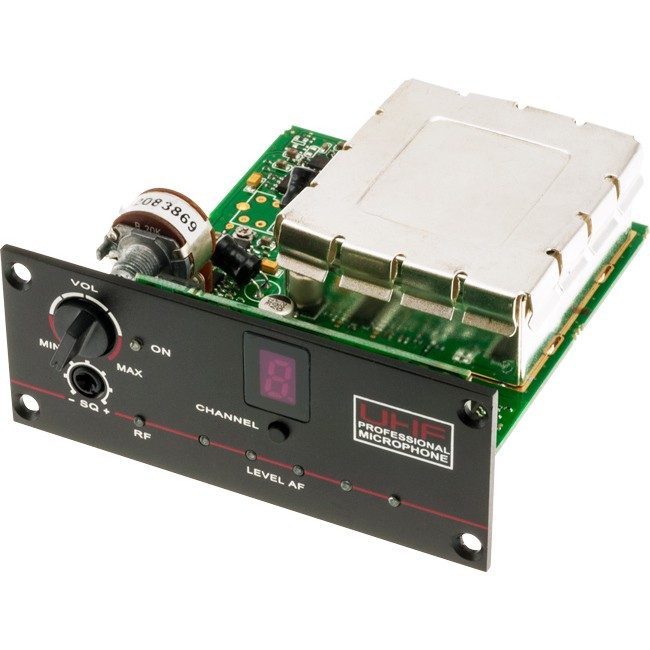

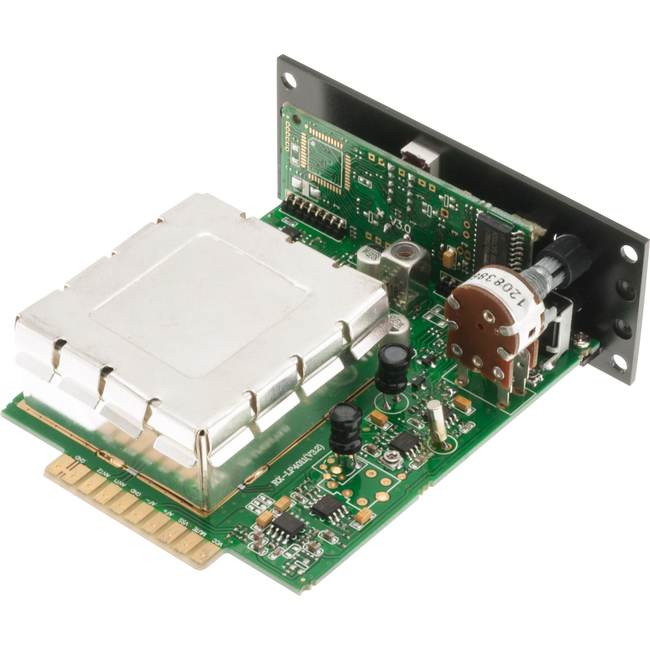

Additional UHF Receiver Module for UHF401

  • Installs into empty bay of UHF401
  • Diversity
  • Tone control squelch
  • Working range adjustable
  • Full metal design
  • LED display
  • 16 channels selectable
  • Frequency display

Specifications

System
Carrier frequency UHF 654-694 MHz
Stability ± 0.005% (at 25°C)
Ambient temperature -10°C ~ +50°C
Max deviation ± 70KHz with level limiting
Dynamic range 110dB
S/​N ratio >110dB
T.H.D. >0.5%
Pre/​De-Emphasis 50µs
Squelch Tone control and noise lock dual squelch
Frequency response 30Hz – 20KHz
Operating range 100m (approximately 300′) under typical conditions
Receiver
Receiving mode Diversity (Dual Antenna)
Sensitivity >-107dB
Image rejection Over 80dB
Audio output Balanced and Unbalanced
Power requirement

AC 110-120V/​220-240V (50-60Hz)
External 22VDC / 800mA

Dimensions (D x W x H) 235 x 420 x 45 mm
Weight Approx.2.9kg
