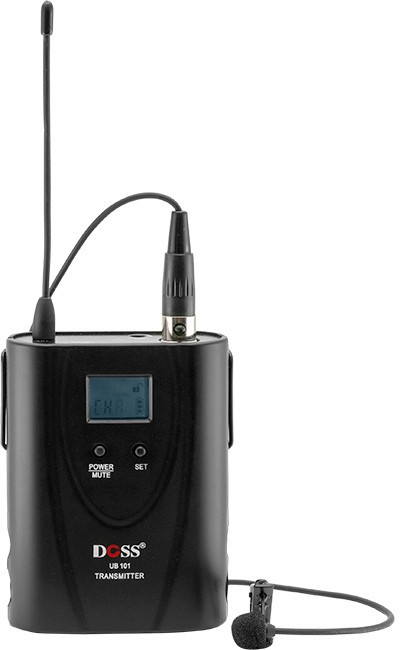

Suits UHF101 and UHF401 (UM401) Receivers

  • Adopting two 1.5V AA battery with longer operating time
  • Variable volume control of input level
  • TA4F mini-XLR prevents the connector dropping off andcreating noise; compatible with lavalier, headset microphoneor guitar connector.

Specifications

System
Carrier frequency UHF 654-694 MHz
Stability ± 0.005% (at 25°C)
Ambient temperature -10°C ~ +50°C
Max deviation ± 70KHz with level limiting
Dynamic range 110dB
S/​N ratio >110dB
T.H.D. >0.5%
Pre/​De-Emphasis 50µs
Squelch Tone control and noise lock dual squelch
Frequency response 30Hz – 20KHz
Operating range 100m (approximately 300′) under typical conditions
UB101 transmitter channel changing instructions pdf; 720KB
