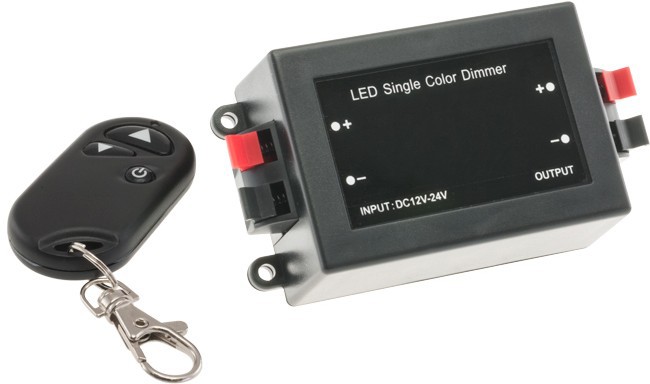

The LEDDIM01 enables remote control dimming of single colour LED strips without line of site. The dimmer uses RF signals from a discrete and handy remote to raise or lower the brightness of new or existing LED strip lighting. You can also power on or off the LED strip and the brightness isstored in memory for next time.

Remote allows quick and convenient adjustment of brightness by holding [UP] or [DOWN] buttons or with fine control by pressing either button momentarily.

Installation

Installation is simple, only needing to be installed in-line with the LED strip’s power supply. Power input is required to be between 12-24VDC. Please connect the LED Strip before connecting power to the device.

Specifications

  • Supply voltage: 12~24VDC
  • Output: 1channel
  • Rated Load Current: <8A
  • Output Power:
    • 9V: <72W,
    • 12V: <96W,
    • 24V: <192W
  • Working Temperature -25 ~ 60°C
  • Net weight: 84g
  • Product size (LWH): 116 x 57 x 34mm
