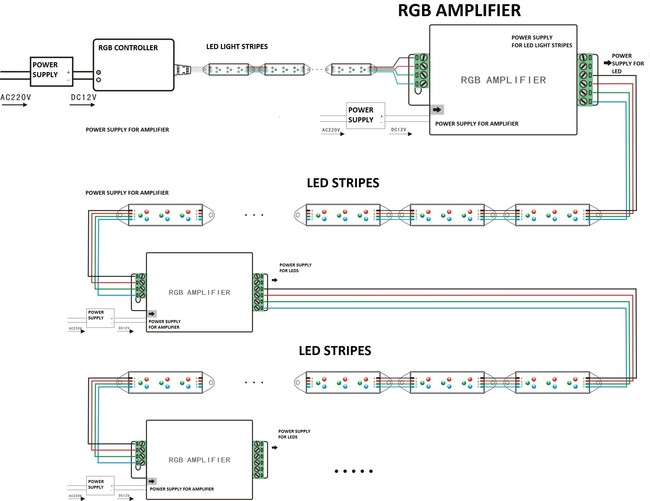

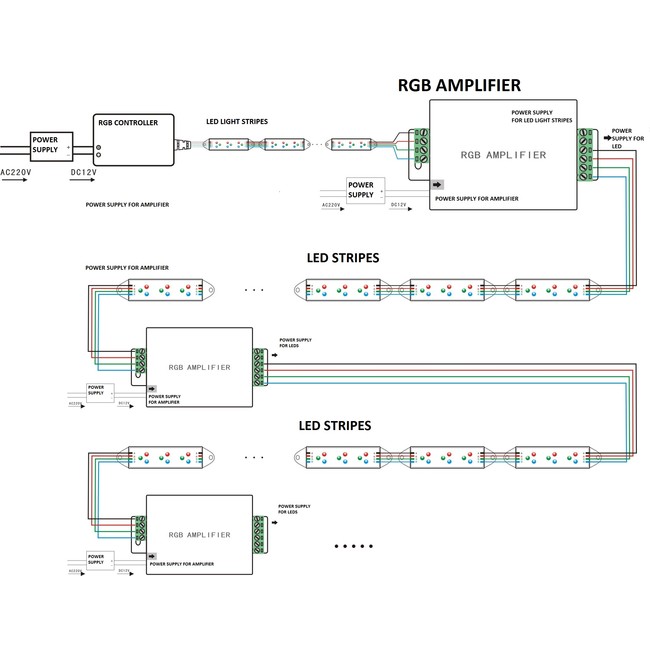

The RGB amplifier applies to the voltage-controlled LED controller. It enables you to connect twice the number of LEDs into your lighting system.

Specifications

Working temperature −20 to 60°C
Input voltage DC 12V
Output 3 channels
Connecting mode –
Dimension 105L x 65W x 23H mm
Net weight 110g
Static power consumption <1W
Output current <4A (each channel)
Output power 5V: <60W, 12V: <144W, 24V: < 288W
