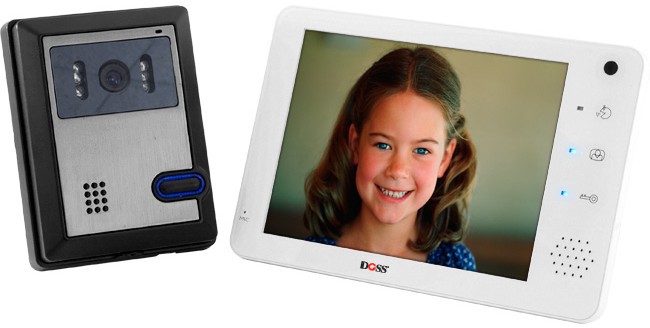

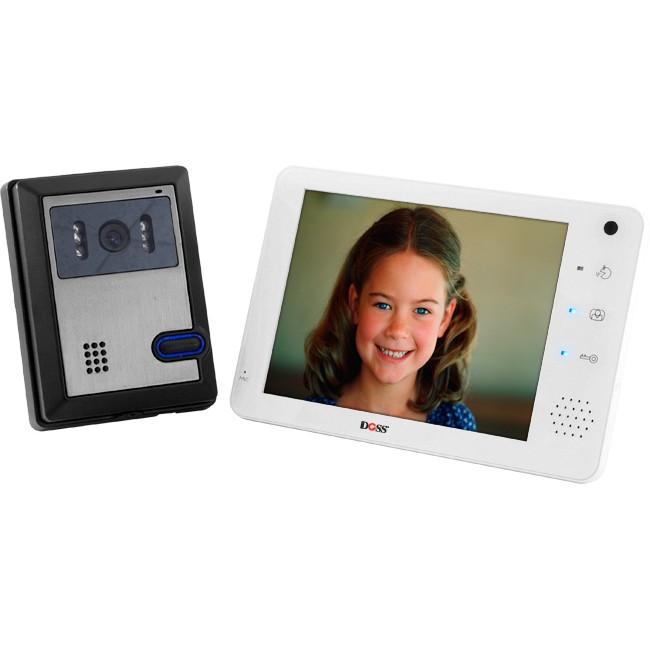

Features

Ideal solution for home video security

See who’s at the door before opening it!

Features

  • Large 7" HD TFT-LCD colour screen
  • Capacitive touch-buttons
  • Video and two way intercom system
  • Handsfree operation
  • Simple connection and easy DIY installation
  • Multiple configuration options
    Use up to 2 cameras and up to 3 monitors (see ‘Support’ tab)
  • High quality CCD Camera with IR LEDs for night illumination
  • Door lock control
  • Mounting hardware supplied

Specifications

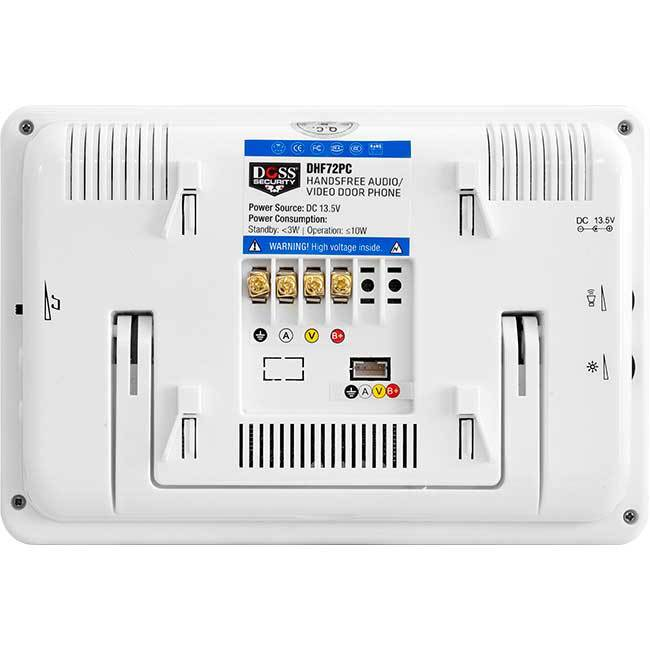

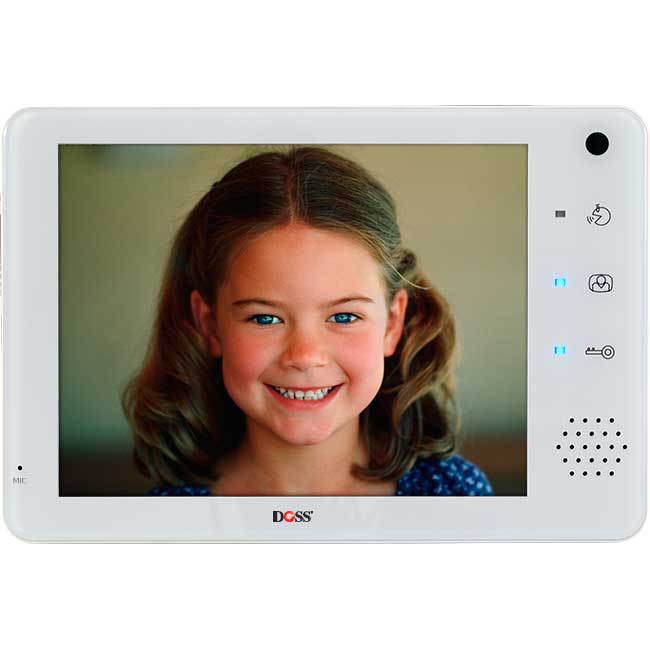

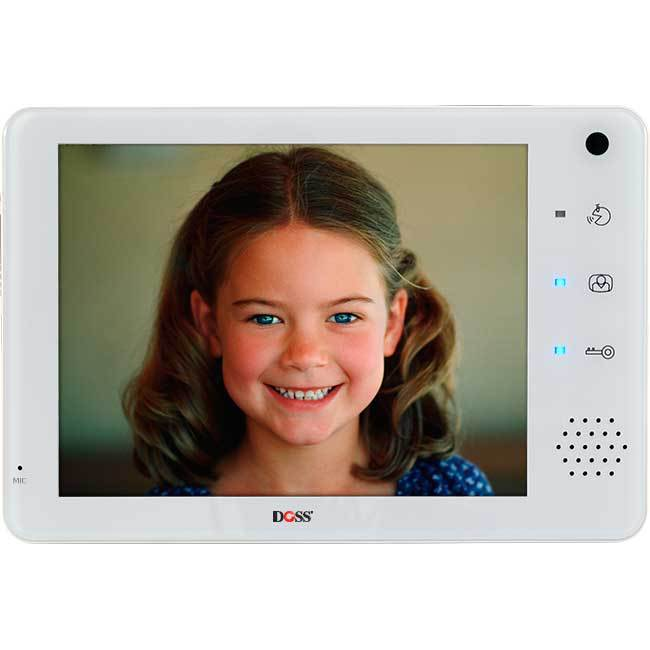

Colour Monitor

  • 7" colour HD TFT-LCD Screen
  • High resolution: 800×600 pixels
  • Capacitive touch-panel
  • Handsfree operation
  • Door lock control
  • Volume and brightness controls
  • Auto off
  • Slim and stylish design
  • 196 (W) x 132 (H) x 34.8 (D) mm
  • Power: 13.5V DC (included)

Video Camera

  • CCD Surface mount camera
  • 6 IR LEDs for night viewing
  • Lens with vertical adjustment
  • Hands-free operation
  • Built-in microphone
  • IP43 weatherproof casing
  • Viewing Angle: 53 degrees
  • 127 (H) x 95 (W) x 35 (D) mm
  • Power: 12V DC provided via monitor

Contents

  • Colour Video Monitor
  • Surface Mount CCD camera with IR LEDs
  • 15V/​1.5A Power Supply
  • Mounting hardware
  • 5m Cable
  • Manual

Support


Follow this diagram to connect an access control system to the DHF72PC. Click for a larger version ordownload PDF file
Please note: Maximum wiring length between camera and monitor is 50 metres.
