The perfect add-on to any door intercom system and a mustfor any access control system! Remotely allow visitors, staff, or family in the door! Requires simple, low-voltage wiring.

Features

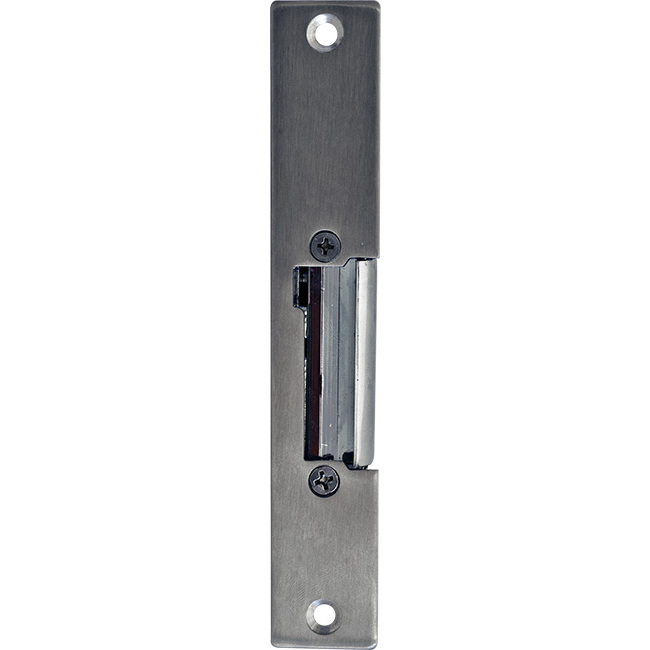

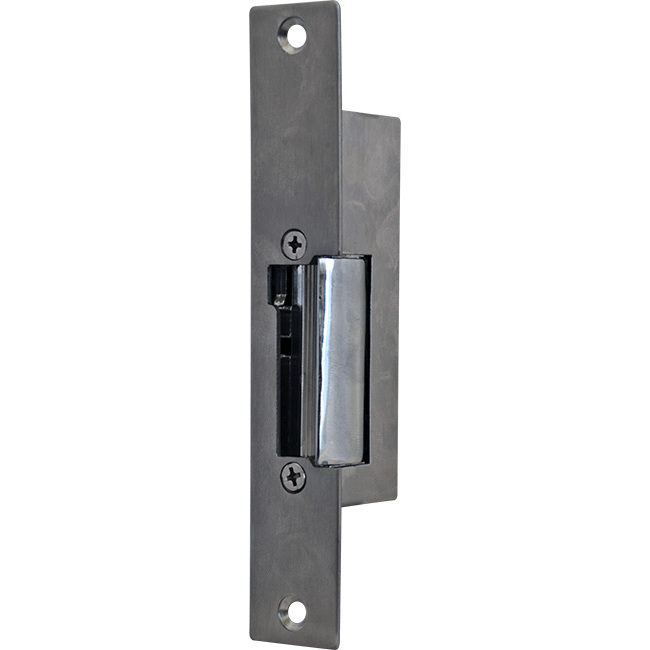

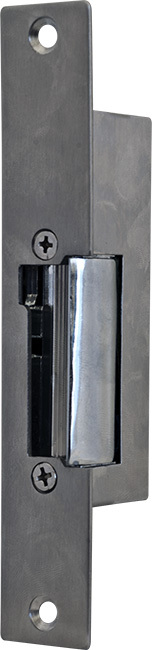

  • Electric Release Door Latch
  • Operates with 12V AC or DC
  • Activates when power removed—door only able to be opened while power is not applied
  • Once door has been opened, will re-latch when door closes without activation
  • Fail-safe (Normally Open): Latch will be unlocked uponpower failure
  • Suit most residential bevelled latch bolts (not suitable for square latch bolts)
  • Reversible—can be installed on right or left side of door

Specifications

  • Working voltage: 12VDC ±10%, 12VAC ±10%
  • Power: 2W
  • Working current:
    • Fail-safe: 140mA (12VDC/​AC)
  • Lock notch size: 45x13x8mm
  • Line connection:
    • Red → 12VDC
    • Black → Gnd
  • Working temp.: –40°C ~ +50°C
  • Rated humidity: 10% ~ 90%
