This product is sold by the metre

Qty = # length of cable ordered; max continuous length: 305m
if 305m is ordered (qty 305), cable will be supplied as a roll

This cable is perfect for running a single cable when 2 (or more) CAT5e cables are required. Not only does it meanjust one cable needs to be run, but identifying data linescouldn’t be easier!

Great for use with:

  • HDMI Dual CAT5e Baluns/​Extenders
  • Security CCTV systems using CAT5e Video Baluns
  • or simply for running to Dual Network / Network+Phone wall plates in home installations

Great for use with:

  • HDMI Dual CAT5e Baluns/​Extenders (such as HDMIC5)
  • Security CCTV systems using CAT5e Video Baluns (such as DOSS Range of Baluns)
  • or simply for running to Dual Network / Network+Phone wall plates in home installations

Features

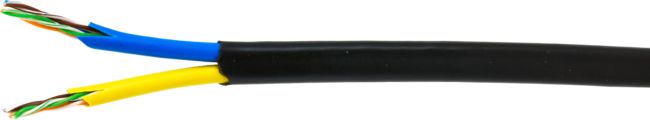

  • Consists twin UTP4 pair cables wrapped in a black outer jacket
  • Blue and yellow inner cores
  • 4 pairs per core (8 wires per core)
  • Ideal for any CAT5e distribution system where more than one CAT5e cable is required
  • High performance 100MHZ Category 5 in-building distribution cable
  • Flexible unshielded 24AWG solid pairs copper FEP insulated conductors
  • For high speed data applications
  • Kink resistant easy to install jacket
  • Impedance: 100±15Ω
  • Attenuation: 22.0Db/​100M @ 100MHz
  • Insulation PE: 0.92
  • Supports network systems i.e Ethernet, Token Ring andX-DDT
  • Lengths available:
