Features

METRE CODE:
Please note that this product is sold in METRES.
To order the reel, put in 305m in your order quantity. Otherwise ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (305m) denotes available roll length.

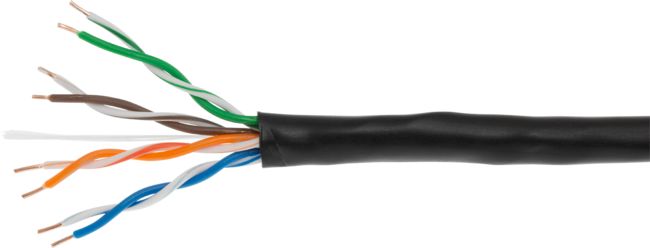

This Unapproved CAT5E Solid-core UTP Cable is perfect for those installing CCTV systems and don’t want the cost of RG59U cabling.

With the use of Video and Power Baluns, video, audio and power can be sent over twisted pair cables at reduced cost to using RG59U Coaxial cables. Since video, audio and power don’t require the high specifications and bandwidth of 100TBASE and 1000TBASE network connections, DOSS has sourceda cable to reduce cost further, while still exceeding specifications required for twisted pair CCTV transmission.

While the cable is Unapproved for CAT5E applications, our tests indicate that it is still morethan adequate for short runs in wired network uses, however we do not recommend it nor provide any guarantee for networking uses.
WARNING:
IT IS ILLEGAL TO CONNECT THIS ITEM TO ANY TELECOMMUNICATIONS NETWORK OR FACILITY, UNLESS YOU HAVE PERMISSION.

Specifications

  • Conductor
    • CCA (Copper-clad Aluminium)
    • 1/​0.505 ±0.01
  • Insulation
    • Material: HD-PE
    • Thickness:
      • MIN at any point: 0.15mm
      • MAX AVG: 0.20 mm
    • Diameter: 0.90 ±0.02
    • Colors:
      • Blue-White/​Blue
      • Orange-White/​Orange
      • Green-White/​Green
      • Brown- White/​Brown
  • Jacket
    • Material: PVC
    • Thickness:
      • MIN at any point: 0.46mm
      • MAX AVG: 0.52mm
    • Diameter 5.2 ±0.3

Example usage

FAQs

What’s the meaning of Unapproved?
In layman terms, if equipment has the provision to be connected to the internet, approved cable needs to be used. That means that even if it’s not connected to the internet, but there is some possibility to connect it, then approved cable is required.
