METRE CODE:

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2x screening of aluminium tape covered with woven aluminium braid outer conductor.

  • 1.05mm copper clad steel centre conductor
  • 2x Aluminium 60% braid & 2x Sealed APA tape
  • Suitable for UHF, Pay, Satellite – Ø7.54mm Jacket
  • Attenuation (dB/​100m):
    • 4.538 @ 55MHz
    • 8.522 @ 211MHz
    • 12.828 @ 450MHz
    • 18.254 @ 870MHz
    • 19.642 @ 1000MHz
    • 23.899 @ 1440MHz
    • 29.673 @ 2150MHz
    • 35.386 @ 3000MHz
  • Available in:

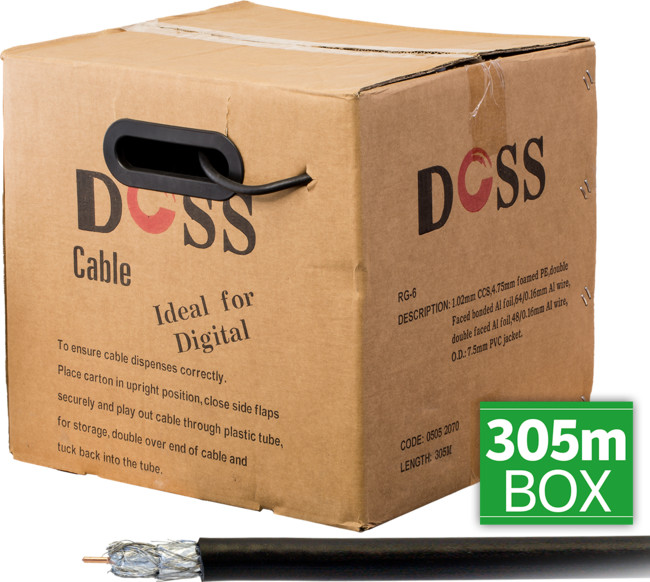

    • 305 metre Dispensing Box, Wooden Reel with reversed metre marking (305x RG6QDB-1MT)
    • 100 metre roll (RG6QDR-100MT)
    • 30 metre roll (RG6QDR-30MT)
    • By the metre (RG6QDB-1MT)
