METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

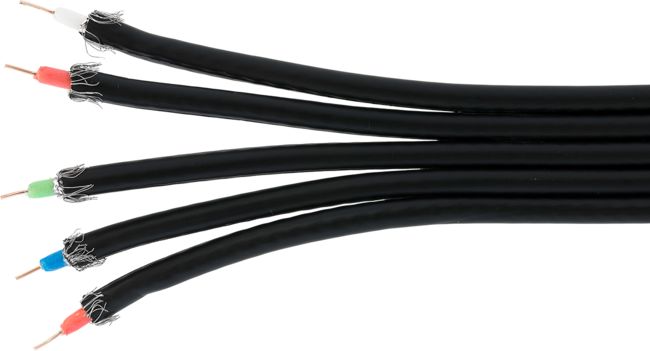

RG59RGBTS WITH STEREO COAX CABLE

Features:
  • Ideal for professional, permanent AV installations (inside walls, under floors etc.)
  • RGB colour coded cores
  • Conductor use purest OFC, it has the characteristicsof high conductivity, low electric resistance, good signal transmission
  • Insulation uses foamed PE, which has low dielectricconstant, low capacitance, less attenuation and distortion, ensure signal quality and transmits image and sound signals with high stability and fidelity
  • Adopting double shield, aluminum foil + AL/​Mg braiding, minimal circuit interference, high signal-to-noiseratio is obtained
  • Soft, highly flexible PVC outer jacket is vibration-resistant. It is free of signal quality deterioration caused by molding vibration and bending
Specifications:
  • Conductor: 5*1/​Ø0.8mm OFC
  • Insulation: 5*Ø3.65mm Foamed PE
  • Lapping: 5*AL/​Mylar
  • Braiding: 5*16/​3/0.16mm AL/​Mg
  • Jacket: 5*Ø6.0mm PVC
  • Wave impedance: 75±3 ohm (@200MHz)
  • Attenuation at 20C: 1 1~450MHz = 20dB/​100m 450~862MHz = 30dB/​100m 862~2150MHz = 45dB/​100m
  • Capacity/​m: 54±5pF
