Features

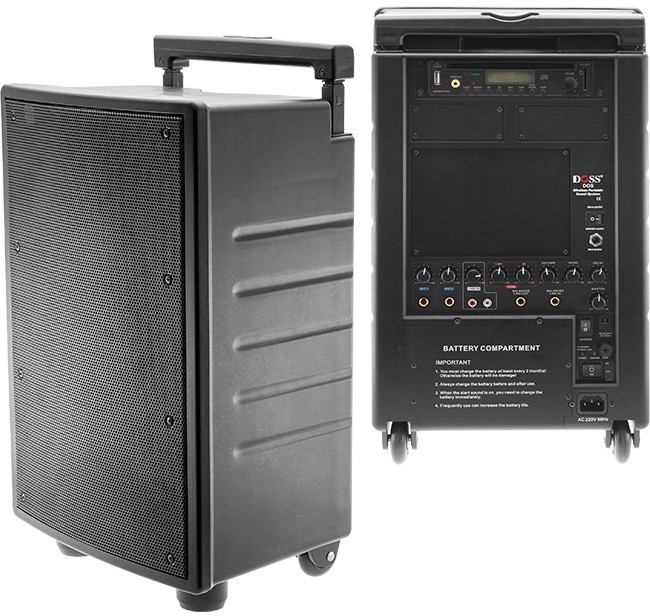

With an built-in DVD/​CD player with USB and MP3 playback, the DOS12 Sound System expands its capabilities beyond any other system in the industry. This AC or battery powered sound system delivers a powerful 108dB that can reach crowdsup to 1000 people. With the convenience and extended mobility of a built-in DVD/​CD player, the DOS12 is great forlarge indoor and outdoor events such as press conferences, sports venues, graduation ceremonies, musical productions or any other settings needing powerful and clear voice or music amplification.

  • DVD/​CD/​MP3 player
    • with IR Remote Control
  • 2x Spare slot for Wireless Receiver modules (optional UM401 [UHF 654-694 MHz])
  • Power mixer
  • 2 way full range 8" speaker
  • Auto charger
  • Rechargeable battery built-in
  • Trolley and roller
  • Supplied with Wired Mic
  • Comes with 5M 6.3mm plug to XLR socket lead for the wired microphone.

Specifications

Rated power output 40 watts
Max SPL 108 dB
Frequency response 80Hz-15KHz
Bass/​Treble control

8db cut/​boost @
100Hz / 5KHz

Line input 1/​4" jack, Low-Z, Balanced
Mic input 1/​4" Phone jack
Sensitivity for rated output Unbalanced line -14 dBV (200 mVrms)
Balanced mic -52 dBV (2.5 mVrms)
Balanced input
Mic 		-58 dBV (1.25 mVrms)
Line -15 dBV (175 mVrms)
Line output Pre-out 1/​4" jack, Low-Z, Balanced
AC power requirements 110-125 VAC, 50/​60HZ, 120 watts max.
210-240 VAC, 50/​60HZ, 120 watts max.
Dimensions HxWxD 480 x 225 x 310mm
Weight 13Kgs
Batteries 3x 6 Volt 4A rechargeable Sealed Lead Acid battery
