Features

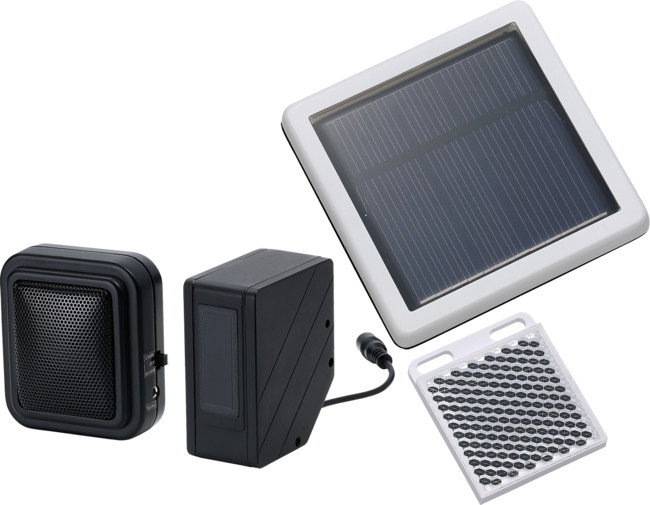

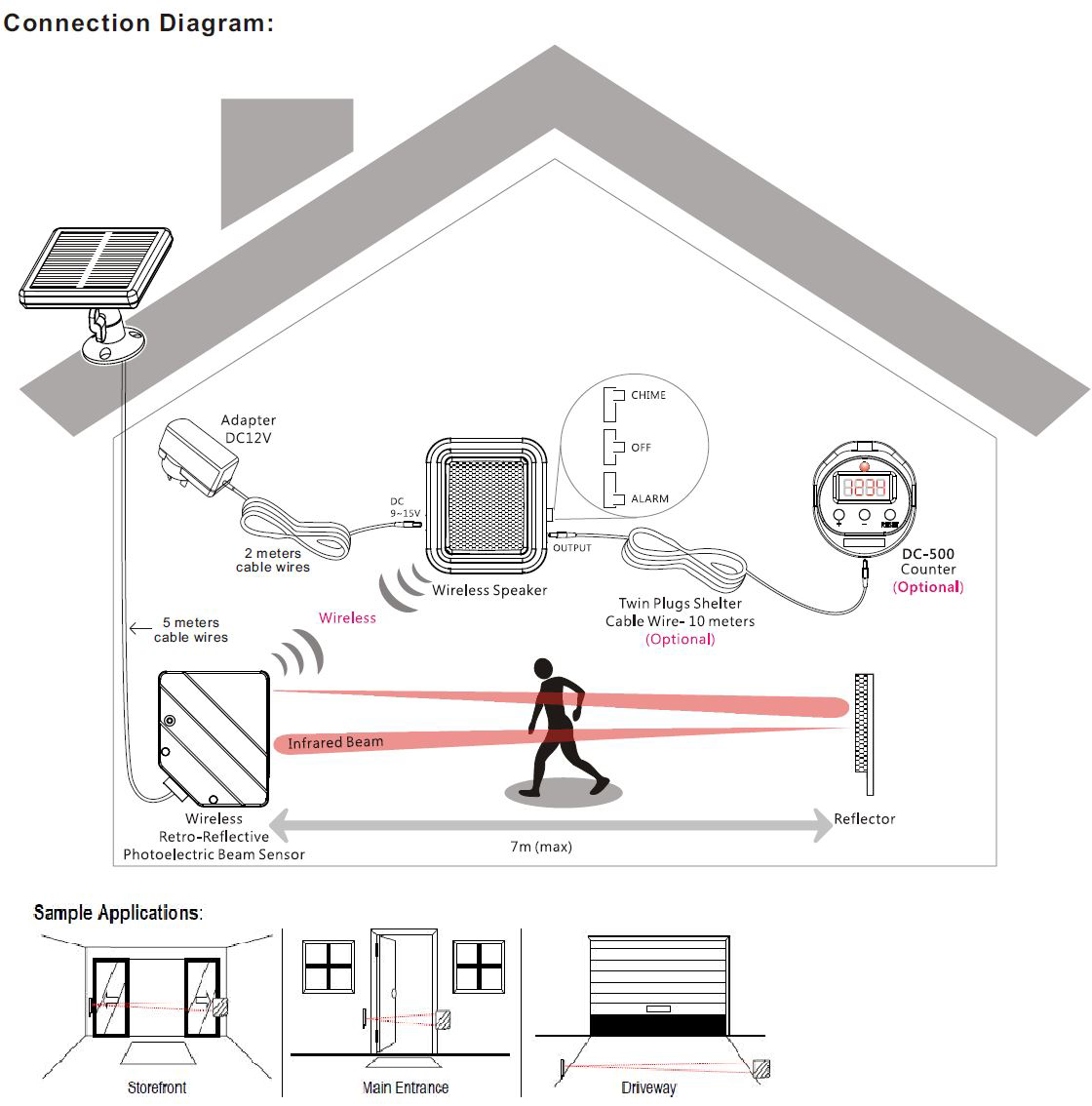

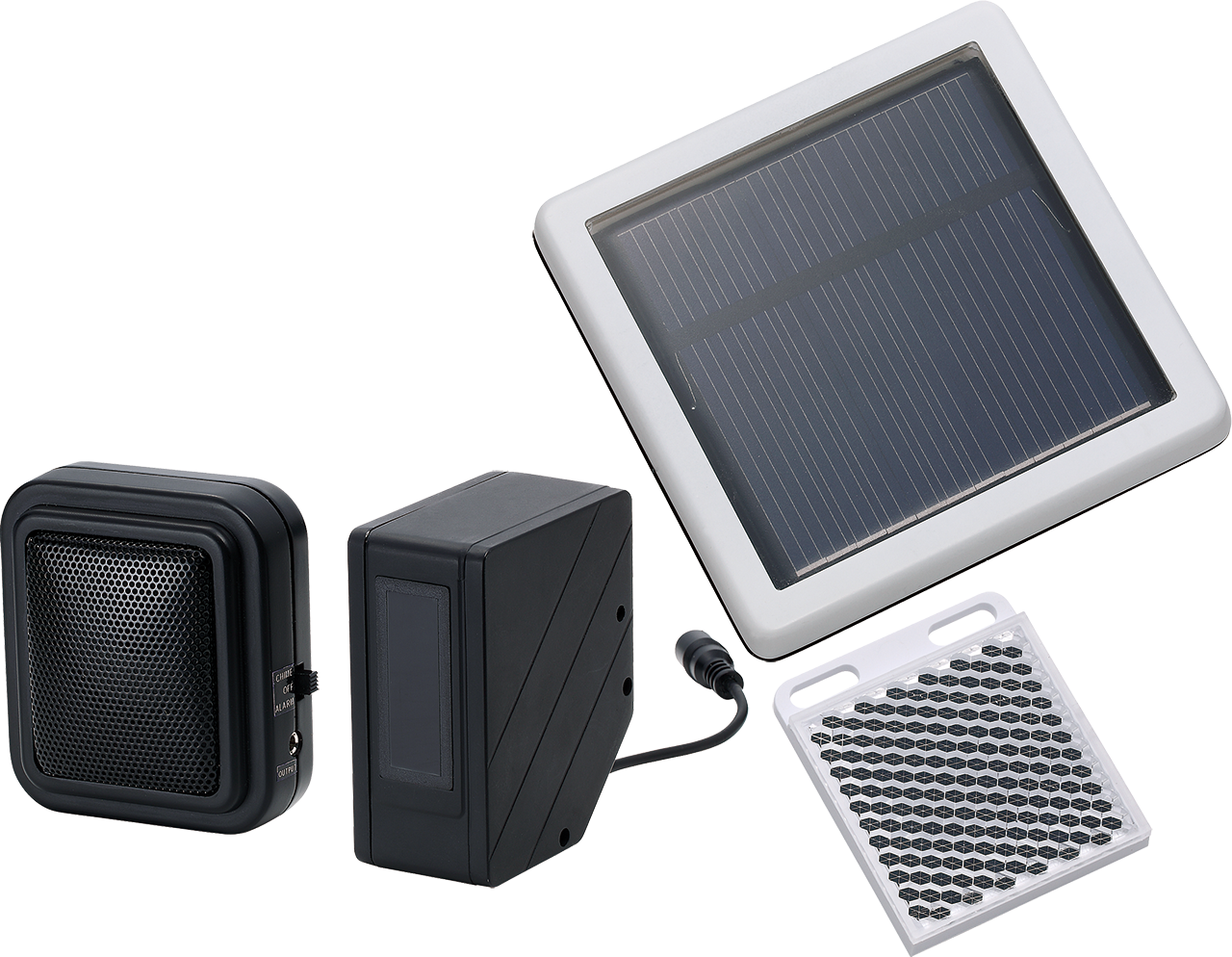

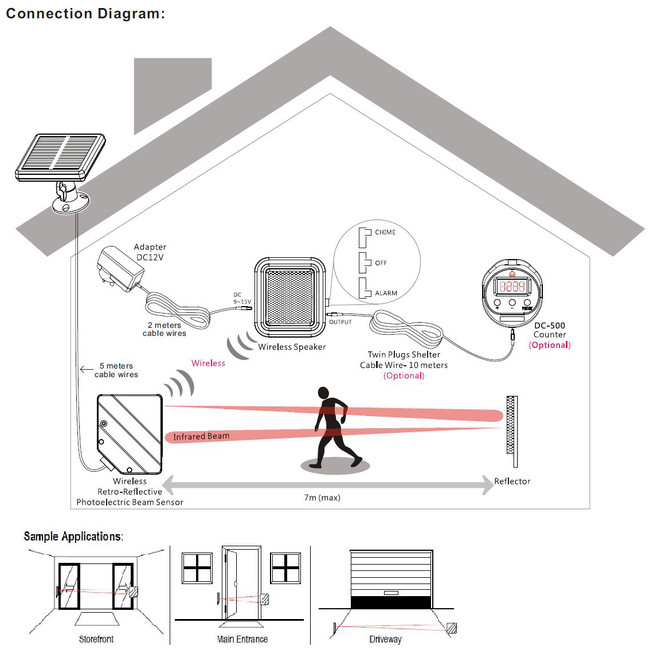

DEA7WL is a compact wireless entry alarm system which is easy to install in both indoor and ourdoor. It is designed for both residential and commercial using such as garage door, shops, warehouse restaurants and farm etc. to alert you to the entry of customers and visitors. The system consists of a send/receive unit which transmits an IR beam across the doorway onto a prismatic reflector mounted on theopposite side. The beam is reflected back to the receiver tocomplete the circuit. When a person walks through the beam, the circuit is interrupted and this causes the alarm to sound an audible warning. The warning buzzer can be mounted in any suitable location. The package comes with a solar panel and rechargeable Lithium-Ion battery which enable the sensor to work outdoor that saves you the time and money of wiring.
Please refer to download tab for pairing instructions
- For monitoring a driveway or use as an entrance indicator
- No wiring required between the sensor and speaker
- Upto 100m wireless range
- When tripped, the sensor wirelessly transmits to any programmed speaker
- Weatherproof photoelectric beam sensor for outdoor use
- Speaker makes "ding-dong" or siren sound when beam is interrupted
- Speaker volume can be adjusted or turned off
- When in siren mode, sounding time is adjustable from 3~30 seconds
- Connect additional speakers to the sensor wirelessly (one speaker included)
- 3.7V Lithium-Ion rechargeable battery pack (lasting for 10 days if triggered less than 2,000 times per day)
Specifications
| Photoelectric Beam Sensor | |
| Type |
Infrared Receiver Modules for Remote Control Systems
|
| Housing | ABS |
| Radio Frequency | 433.92 MHz |
| LED Emitting Element | Infrared LED Indicator (Red) |
| Sensing Range | 0.5 ~ 7 meters |
| Power Supply | Internal 3.7V Lithium-Ion rechargeable battery pack (1,230 mAH) Supplied with 2.5mm DC socket B.solar panel |
| Current Drain (mA) | Standby (Beam Aligned properly): 3.7 mA/Beam Broken:14 mA |
| Duration of Battery | If the sensor trigger less than 2,000 times per day, then the battery can be lasting 10 days (also the solarpanel is working not proper.) |
| Power input wire | DC Jack (f) 5.5mm/2.1mm x (L) 12cm |
| Wireless Door Announcer | |
| Type | Microprocessor based control unit |
| Housing | ABS |
| Radio Frequency | 433.92MHz |
| Wireless Coverage Range | ≤100m (Open space) |
| Volume of Speaker | 0 ~ Max (Adjustable) |
| Chime/Alarm Time | 30 sec max. (Adjustable) |
| Power Supply (Input) | AC / DC Adaptor (100-240VAC/50-60Hz) |
| Power input Jack | DC Jack (f) 5.5mm/2.1mm |
| Power Supply (Output) | 12VDC/130 mA |
| Power output Jack | Phone Jack (f) 3.5mm |
| Temperature | 0°C ~ 50°C |
| Solar panel | |
| Type | 0.8W Solar panel |
| Housing | ABS |
| Power output wire | DC Plug (f) 5.5mm/2.1mm x (L) 5m, Black |
| 4 Digits Counter (Optional) | |
| Type | 4 Digits Counter (Number can be adjusted +/-/Reset) |
| Housing | ABS |
| Power Supply | 12VDC / 130mA (same power source as speaker) |
| Power input wire | Phone Plug (f) 3.5mm |

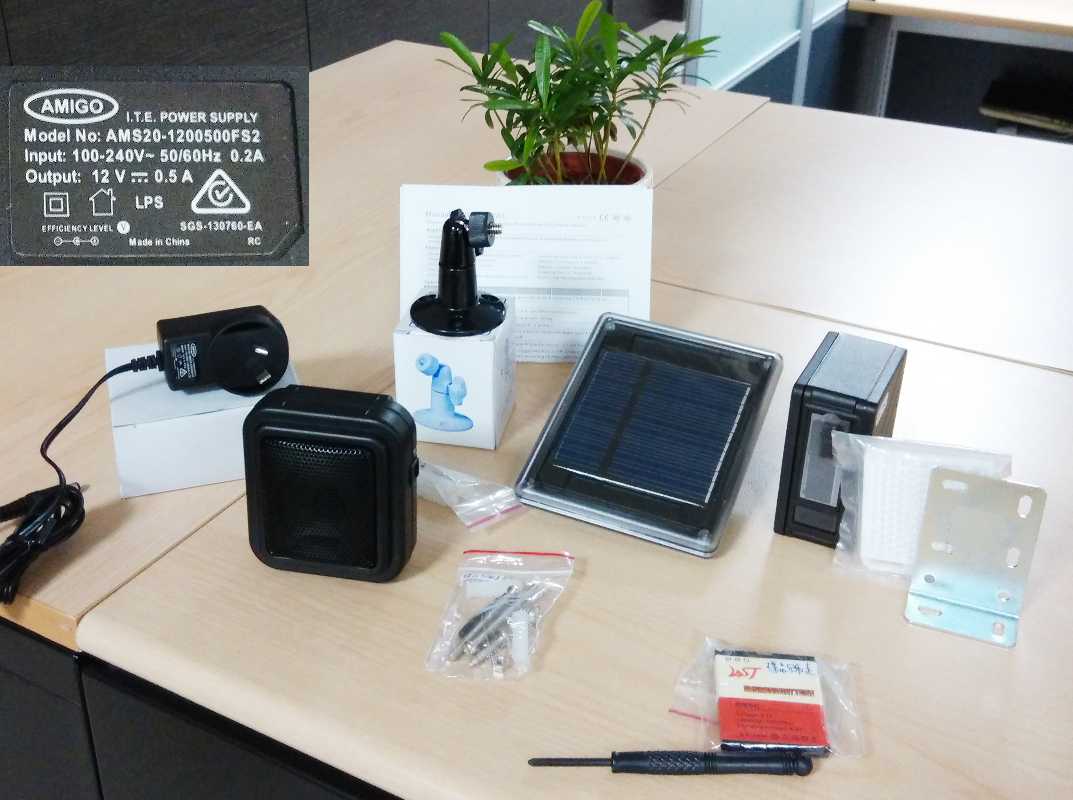

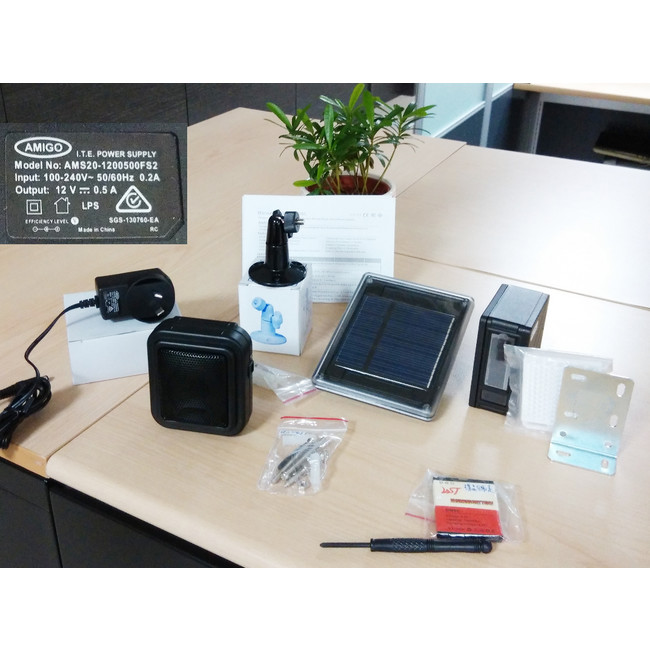

Package Contents
- 1x Wireless Retro-Reflective Photoelectric Beam Sensor (2.5mm DC socket)
- 1x Wireless Speaker

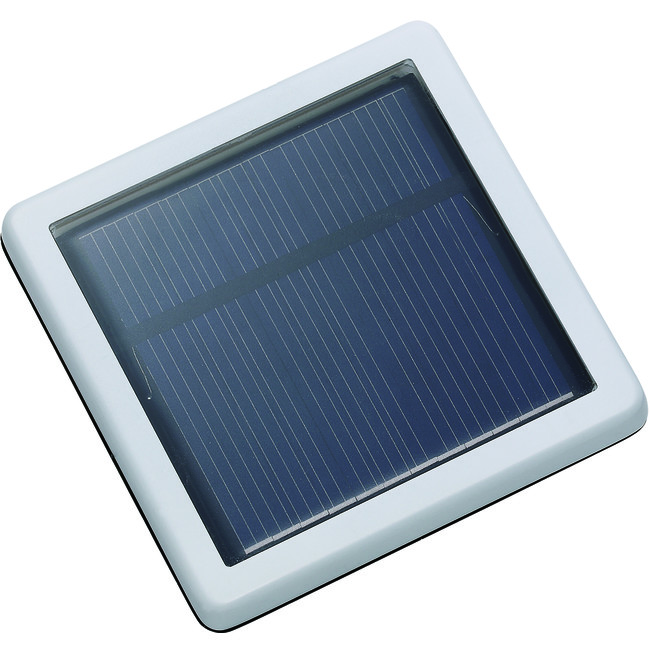

- 1x Solar Panel

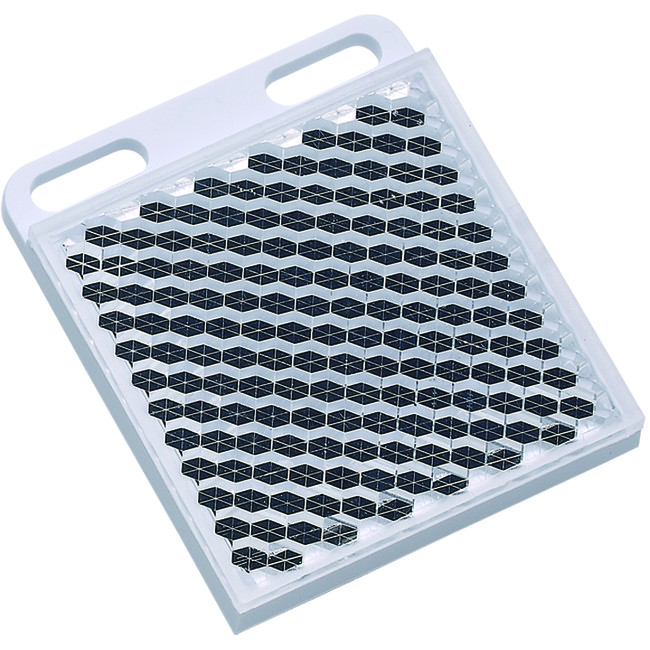

- Reflector
- Power supply DC 12V 0.5A
- Mounting Bracket & screws for Sensor
- Screw driver for Duration and volume adjustment of speaker
- 5 meters cable wires (from Solar Panel to Sensor) and 2 meters cable wires (from Adaptor to Speaker)
- Mounting Bracket & Screws of Solar Panel
- 1x 3.7V Lithium-Ion rechargeable battery pack
