FSP4F
00845435

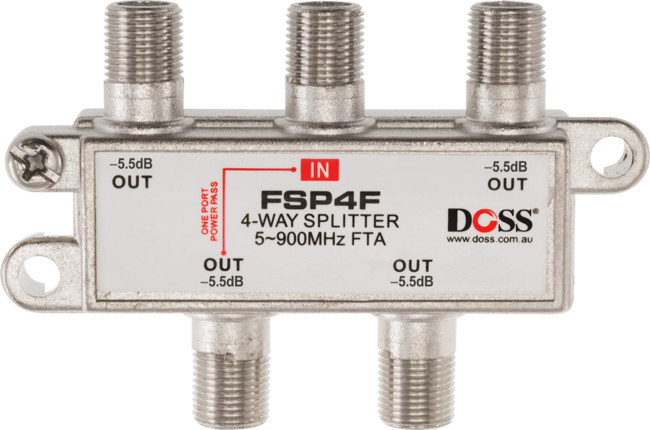

- 4-Way 75 ohm coaxial splitter
- 5~900MHz Splitters with power pass on one leg
- Metal shielded case with "F" type sockets
Specifications:
FSP2F | FSP3F | FSP4F | FSP6F | FSP8F | ||
Frequency Range (MHz) | Nominal | Nominal | Nominal | Nominal | Nominal | |
Insertion Loss | 5-47MHz | 4.2 | 5.8 | 8.2 | 11.5 | 12.5 |
(Max dB) | 48-450MHz | 4.2 | 5.8 | 8.2 | 11.5 | 12.5 |
451-750MHz | 4.2 | 6.5 | 8.2 | 11.5 | 12.5 | |
751-900 MHz | 4.2 | 7 | 8.2 | 11.5 | 12.5 | |
ISOLATION | 5-47MHz | 20 | 20 | 20 | 20 | 20 |
Out-out | 48-450MHz | 20 | 20 | 20 | 20 | 20 |
(Min dB) | 451-750MHz | 20 | 20 | 20 | 20 | 20 |
751-900 MHz | 20 | 20 | 20 | 20 | 20 | |
Return Loss | 5-47MHz | 18 | 18 | 18 | 16 | 18 |
Input | 48-450MHz | 18 | 18 | 18 | 16 | 18 |
(Min dB) | 451-750MHz | 18 | 16 | 16 | 16 | 16 |
751-900 MHz | 18 | 16 | 16 | 16 | 16 | |
Return Loss | 5-47MHz | 18 | 18 | 18 | 16 | 18 |
Output | 48-450MHz | 18 | 18 | 18 | 16 | 18 |
(Min dB) | 451-750MHz | 18 | 16 | 16 | 16 | 16 |
751-900 MHz | 18 | 16 | 16 | 16 | 16 |
Note:
Doss splitters will also function as combiners.
- When combining modulated signals, leave at least a 2 channel separation i.e. Channel 21 for the first channel and Channel 24 for the next etc.
- It is also recommended that if you also have an antenna connected to the system, you use a Digiair Pro when selecting the appropriate channels. The spectrum analyser function will display where there are the lowest levels of interference i.e. where the modulated should be placed in the radio spectrum.
