Why does the power supply distributor don’t have power plug?

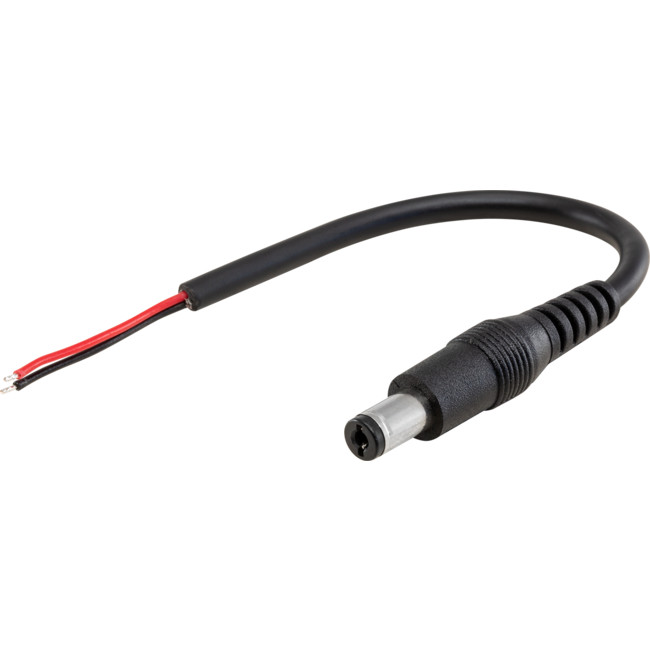

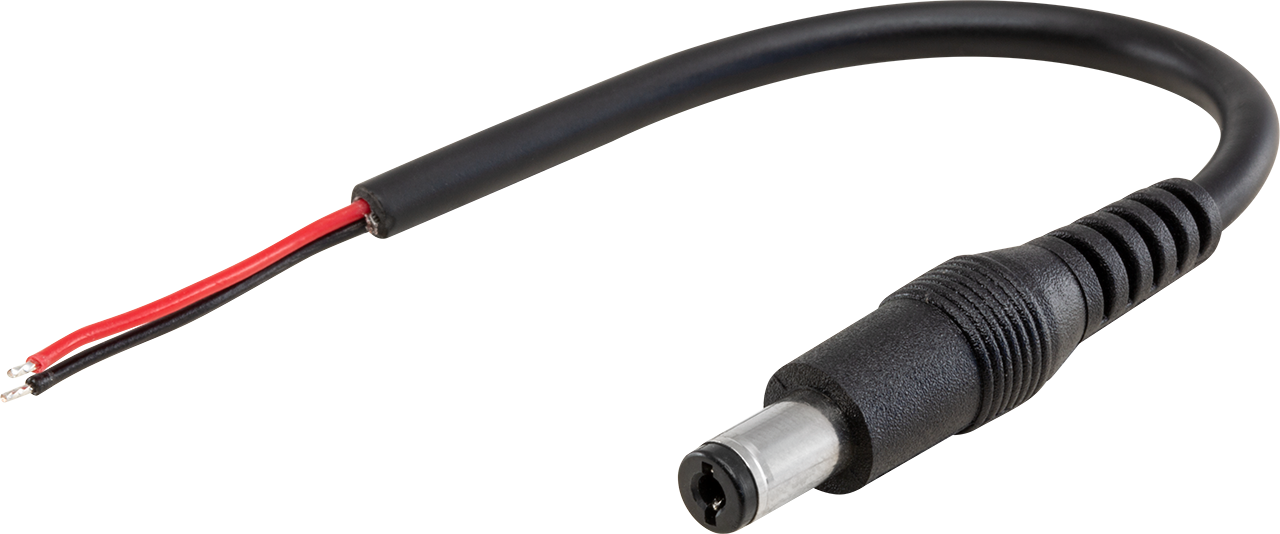

The power supply connection supplied is 2.1mm DC plug with bare end (Please refer to the product image). If you’dprefer to use a standard power point, you can use a power pack 00760745 PSK06 . If you would like to plug the power into the cigarette socket in the car, please use a cigarettelighter plug 07053013 CLP21

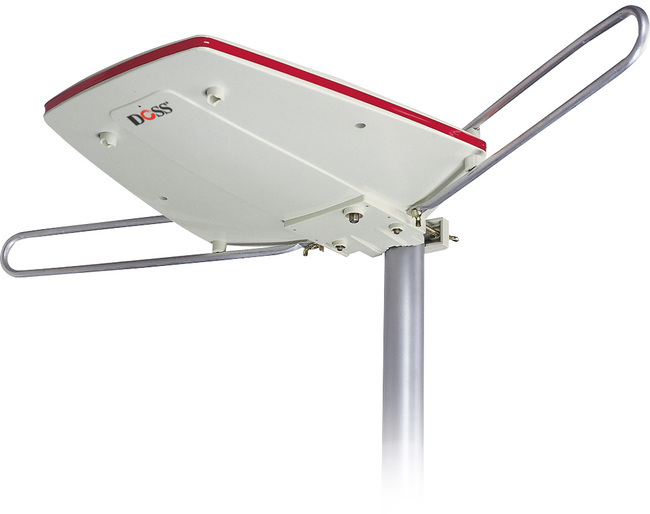

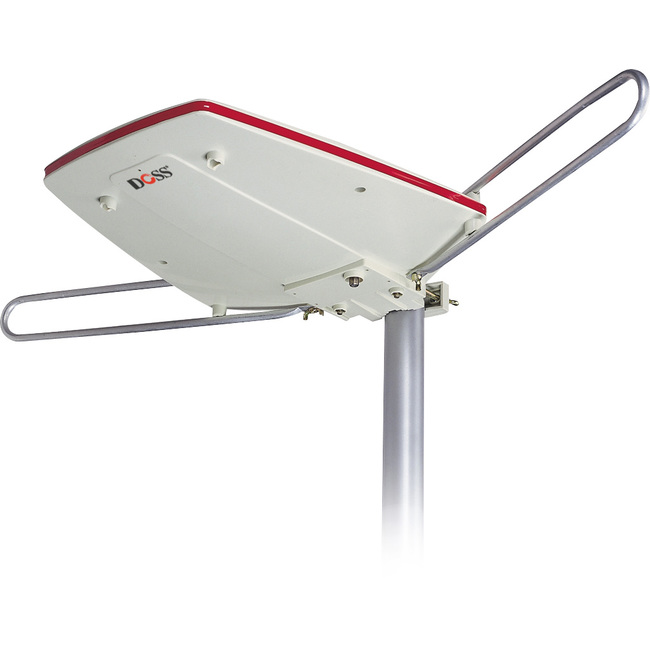

The DOSS Combo20 high gain aerial gives outstanding performance on analogue, digital and FM radio and is the ideal solution for any mobile setup, caravans, motor homes, and boats!

  • The COMBO20 contains a built in amplifier that strengthens weak signals for clearer picture
  • Power supply distributor box has a built-in splitter for a second TV outlet
  • The DOSS Combo20 aerial is especiallygood in poor reception areas
  • Ideal for your caravan, motor home, boat and even as aloft aerial at home
  • It comes complete with cables, connectors and fitting instructions
  • Easy to assemble and suitable for use throughout Australia
  • Please note: The included Power Supply Distributor requires a 12V 100mA power supply.

Images

Specifications

Channels 0 ~ 69
Frequency VHF 40 ~230MHz, UHF 470 ~ 862 MHz
Gain VHF20dB, UHF 19dB
Front Back Ratio UHF16° ~ 6°, VHF 0°
Half Power Angle UHF 55° ~ 65°, VHF 60°~80°
Output Impedance 75Ω, F-Connector (Female)
Voltage Standing Wave Ratio 2~3
Noise Figure Max. 4.5db
Max. Output Level 100dBµV (IMA -69dB)
Applicable Temperature -20°C ~ 50°C
Wind Surface 0.181m2
Wind Load 12.67KPA
Fixed Mast Diameter 15~56mm
Power Source 12VDC / 100mA
(Power supply not included)
Dimension 400 x 350 x 105 mm
Weight 2200 g

*Please note: Mounting pole not included

In the Box

  • Combo20 Antenna

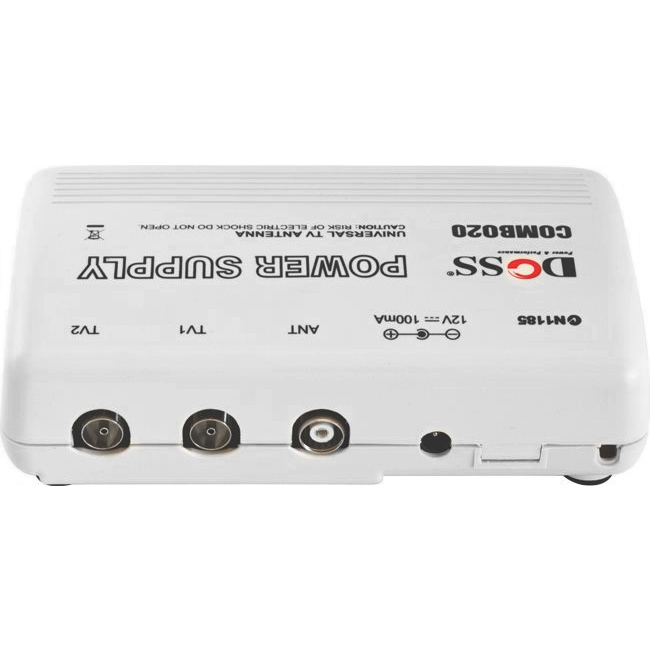

  • Power supply distributor box

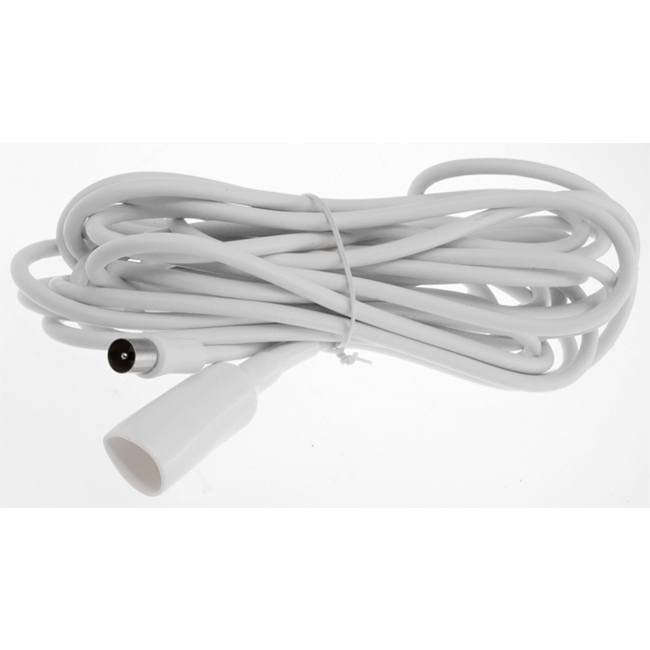

  • 6m sealed ‘F-Type’ to PAL lead
  • Mounting hardware

User Manual

Download PDF here.
